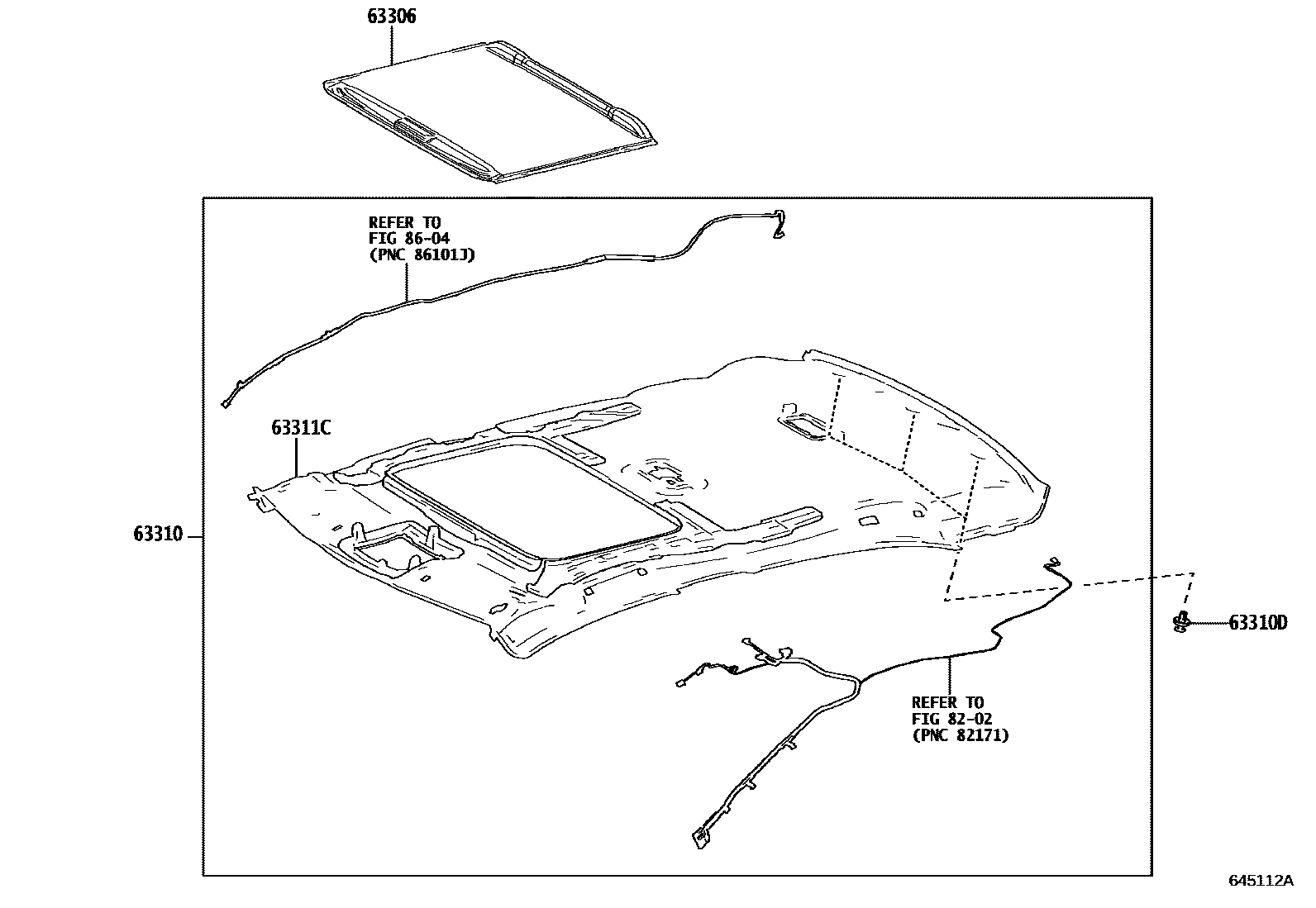

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1NORMAL ROOF 0003 1MOON ROOF

63306TRIM SUB-ASSY, SUNSHADE

main63306-02240-A0supersedes 63306-02240-A0iMZEA12..G202107-202304

FROMAGE,TRIM2#,4#

63310HEADLINING ASSY, ROOF

main63310-02Q10-A1iMZEA12..G202107-202207

FROMAGE,TRIM2#,4#

main63310-02Z00-A0iMZEA12..G202207-202304

FROMAGE,TRIM2#,4#

main63310-02U80-A0supersedes 63310-02U90-A0iMZEA12,MZEH16..N202304

LOW PACKAGE,FROMAGE,TRIM2#

main63310-02Y70-A0supersedes 63310-02Y90-A0iMZEA12..N202207-202304

LOW PACKAGE,FROMAGE,TRIM2#

main63310-02Z40-A0supersedes 63310-02U90-A0iMZEA12,MZEH16..N202304

LOW PACKAGE&ETC-WITH,FROMAGE,TRIM2#

main63310-02Z50-A0supersedes 63310-02U90-A0iMZEA12,MZEH16..N202304

ETC-WITH,FROMAGE,TRIM2#

main63310-02Z60-A0supersedes 63310-02Z30-A0iMZEA12,MZEH16..G202304

ETC-WITH,FROMAGE,TRIM2#,4#

63310DCLIP, ROOF HEADLINING

main90467-05168-A0×3iMZEA12..G202107-202304

FROMAGE,TRIM2#,4#

63311CHEADLINING, ROOF

main63311-02130-A1iMZEA12..G202107-202207

FROMAGE,TRIM2#,4#

main63311-02240-A0iMZEA12..G202207-202304

FROMAGE,TRIM2#,4#

main63311-02280-A0iMZEA12,MZEH16..G202304

FROMAGE,TRIM2#,4#

main63311-02210-A0supersedes 63311-02230-A0iMZEA12..N202207-202304

LOW PACKAGE,FROMAGE,TRIM2#

main63311-02260-A0supersedes 63311-02270-A0iMZEA12,MZEH16..N202304

LOW PACKAGE&ETC-WITH,FROMAGE,TRIM2#

8202

8604

6 parts on this diagram · 3 diagrams in section
