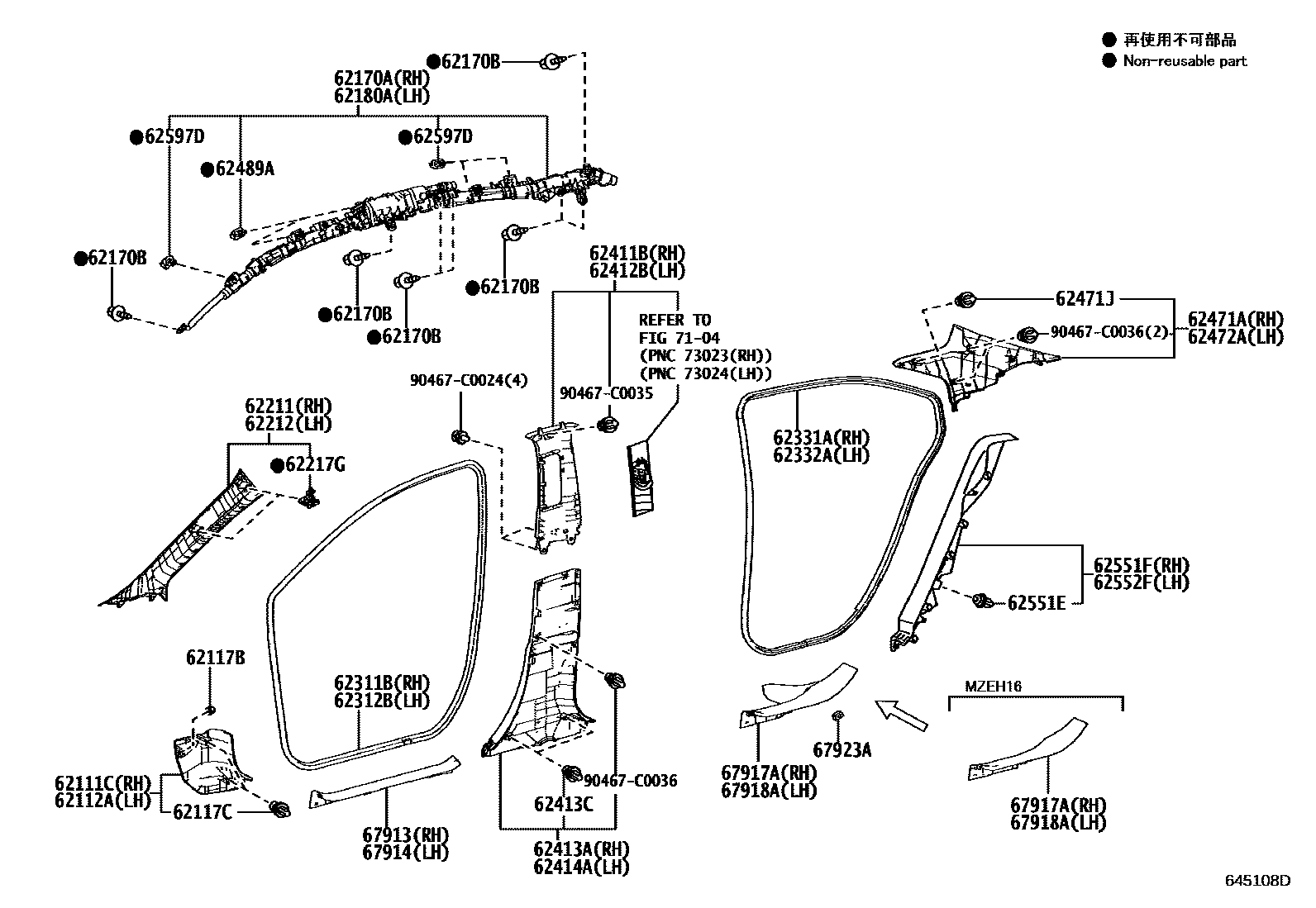

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-02460-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-02460-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iMZEA12202107-202304

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0035×4iMZEA12202107-202304

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02290iMZEA12202107-202304

62170BBOLT, W/WASHER

main90119-C0107×14iMZEA12202107-202304

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02420iMZEA12202107-202304

62211GARNISH, FRONT PILLAR, RH

main62210-02500-A0iMZEA12..N202107-202304

FROMAGE,TRIM2#,4#

62212GARNISH, FRONT PILLAR, LH

main62220-02500-A0iMZEA12..N202107-202304

FROMAGE,TRIM2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050×4iMZEA12202107-202304

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02390iMZEA12202107-202304

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02400iMZEA12202107-202304

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02470iMZEA12202107-202304

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02470iMZEA12202107-202304

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-02380-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-02380-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02420-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09236×4iMZEA12202107-202304

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02420-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-02740-A0iMZEA12..N202107-202304

FROMAGE,TRIM2#,4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-C0034×2iMZEA12202107-202304

62472AGARNISH, ROOF SIDE, INNER LH

main62480-02740-A0iMZEA12..N202107-202304

FROMAGE,TRIM2#,4#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010×4iMZEA12202107-202304

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62217-13010×2iMZEA12202107-202304

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02800-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02A00-C0iMZEA12..N202107-202304

BLACK,TRIM2#

62597DCLIP

main90467-18017×6iMZEA12202107-202304

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02440-C0iMZEA12..N202107-202304

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02440-C0iMZEA12..N202107-202304

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02630-C0iMZEA12..N202107-202304

BLACK,TRIM2#

main67917-02640-C0iMZEH16..G202307

BLACK,TRIM2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02650-C0iMZEA12..N202107-202304

BLACK,TRIM2#

main67918-02660-C0iMZEH16..G202307

BLACK,TRIM2#,4#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090×2iMZEA12202107-202304

7104

90467C0024

main90467-C0024

90467C0035

main90467-C0035

90467C0036

main90467-C0036

36 parts on this diagram · 1 diagram in section
