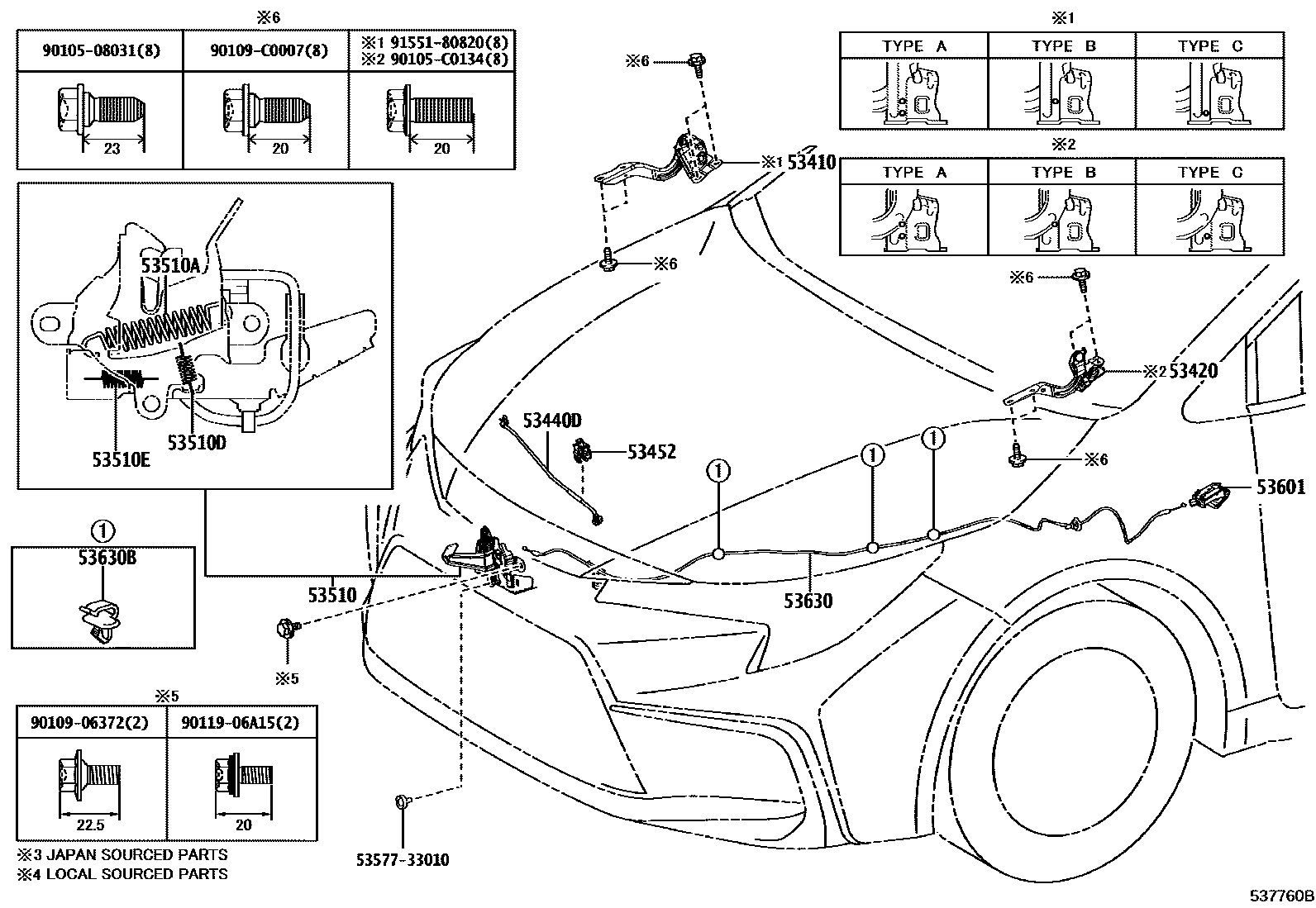

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02720iMZEA12202107-202304

TYPE A:REFER ILLUST.

main53410-02730iMZEA12202107-202304

TYPE B:REFER ILLUST.

main53410-02740iMZEA12202107-202304

TYPE C:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-02720iMZEA12,MZEH16202304

TYPE A:REFER ILLUST.

main53420-02750iMZEA12202107-202304

TYPE B:REFER ILLUST.

main53420-02760iMZEA12,MZEH16202304

TYPE C:REFER ILLUST.

53440DSUPPORT ASSY, HOOD

main53440-02360iMZEA12202107-202304

53452HOLDER, HOOD STAY

main53452-0A010iMZEA12,MZEH16202304

(L)

main53452-15020iMZEA12202111-202304

(J)

53510LOCK ASSY, HOOD

main53510-02A60iMZEA12..N202107-202207

main53510-02A90iMZEA12..G202107-202304

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMZEA12,MZEH16202304

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iMZEA12202107-202304

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14085iMZEA12202107-202304

WD=1.4,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D061-C1iMZEA12..N202107-202304

BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02531iMZEA12202107-202304

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0008×3iMZEA12202107-202304

5357733010BOLT, HOOD LOCK

main53577-33010

9010508031

main90105-08031

90105C0134

main90105-C0134

9010906372

main90109-06372

90109C0007

main90109-C0007

9011906A15

main90119-06A15

9155180820

main91551-80820

18 parts on this diagram · 1 diagram in section
