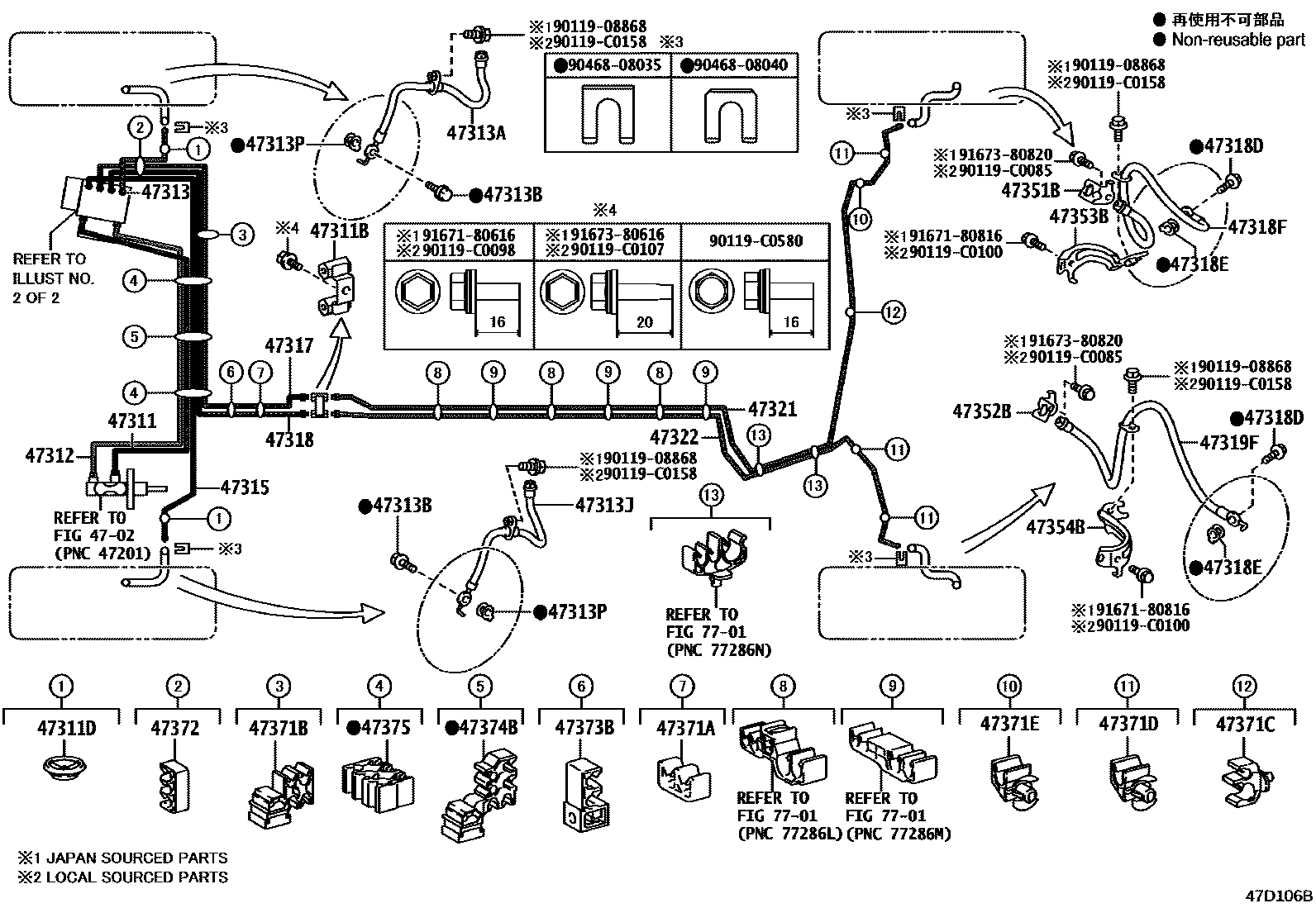

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-02G90iMZEH16202307

main47311-02J50iMZEA12202304

main47311-F4080iMZEA12202107-202304

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMZEA12,MZEH16202304

(J)

main90412-C0004iMZEA12,MZEH16202304

(L)

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iMZEA12202107-202304

47312TUBE, FRONT BRAKE, NO.2

main47312-02F50iMZEH16202307

main47312-F4080iMZEA12202107-202304

47313TUBE, FRONT BRAKE, NO.3

main47313-02J20iMZEH16202307

main47313-F4080iMZEA12202107-202304

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2082iMZEA12,MZEH16202304

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iMZEA12202107-202304

(J)

main90401-C0001×2iMZEA12202107-202304

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2083iMZEA12,MZEH16202304

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iMZEA12202107-202304

47315TUBE, FRONT BRAKE, NO.5

main47315-02670iMZEA12202107-202304

main47315-02720iMZEH16202307

47317TUBE, FRONT BRAKE, NO.7

main47317-02G20iMZEH16202307

main47317-F4080iMZEA12202107-202304

47318TUBE, FRONT BRAKE, NO.8

main47318-02G40iMZEH16202307

main47318-F4080iMZEA12202304

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iMZEA12202107-202304

(J)

main90401-C0001×2iMZEA12202107-202304

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iMZEA12,MZEH16202304

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2086iMZEA12202107-202304

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2087iMZEA12202107-202304

47321TUBE, REAR BRAKE, NO.1

main47321-02770iMZEA12202107-202304

47322TUBE, REAR BRAKE, NO.2

main47322-02770iMZEA12202107-202304

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06070iMZEA12202107-202304

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06070iMZEA12202107-202304

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-02270iMZEA12202107-202304

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-02270iMZEA12,MZEH16202304

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91iMZEA12202107-202304

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01E51iMZEA12202107-202304

47371CCLAMP, BRAKE TUBE, NO.7

main77285-02200iMZEA12202107-202304

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01E10×3iMZEA12202107-202304

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E10iMZEA12202107-202304

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D92iMZEA12202107-202304

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E33iMZEA12202107-202304

main90949-01E40×3iMZEH16202307

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E42iMZEA12202107-202304

main90949-01E79iMZEH16202307

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E44×2iMZEA12202107-202304

7701

9011908868

main90119-08868

90119C0085

main90119-C0085

90119C0098

main90119-C0098

90119C0100

main90119-C0100

90119C0107

main90119-C0107

90119C0158

main90119-C0158

90119C0580

main90119-C0580

9046808035

main90468-08035

9046808040

main90468-08040

9167180616

main91671-80616

9167180816

main91671-80816

9167380616

main91673-80616

9167380820

main91673-80820

46 parts on this diagram · 4 diagrams in section
