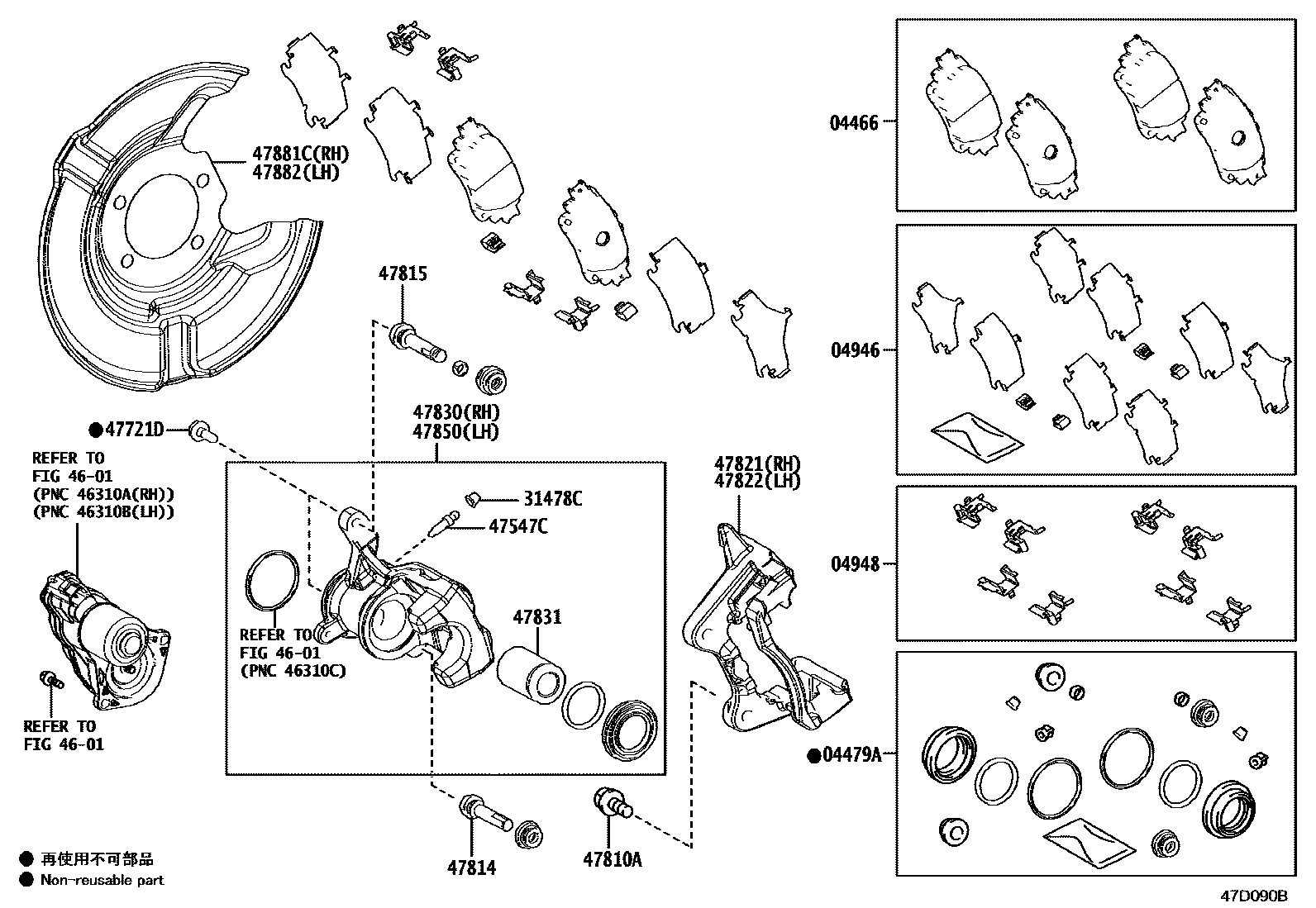

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02420iMZEA12202107-202304

MARK NBK D6360-FF

main04466-02500iMZEA12,MZEH16202304

MARK NBK D6363-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02451iMZEA12202107-202304

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02150iMZEA12202107-202304

main04946-02220iMZEA12,MZEH16202304

04948FITTING KIT, DISC BRAKE, REAR

main04948-02170iMZEA12,MZEH16202304

main04948-02171iMZEA12202107-202304

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010×2iMZEA12,MZEH16202304

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMZEA12202107-202304

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA612×4iMZEA12202107-202304

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMZEA12202107-202304

(J)

main90105-C0255×4iMZEA12,MZEH16202304

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06180×2iMZEA12202107-202304

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06180×2iMZEA12202107-202304

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-02400iMZEA12202107-202304

main47821-02440iMZEA12,MZEH16202304

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-02390iMZEA12202107-202304

main47822-02430iMZEA12,MZEH16202304

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02400iMZEA12202107-202304

main47830-02440iMZEA12,MZEH16202304

47831PISTON, REAR DISC BRAKE

main47831-02400×2iMZEA12202107-202302

main47831-02430×2iMZEA12202302-202304

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02390iMZEA12202107-202304

main47850-02430iMZEA12,MZEH16202304

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-02290iMZEA12202107-202304

47882COVER, DISC BRAKE DUST, REAR LH

main47882-02290iMZEA12202107-202304

18 parts on this diagram · 2 diagrams in section
