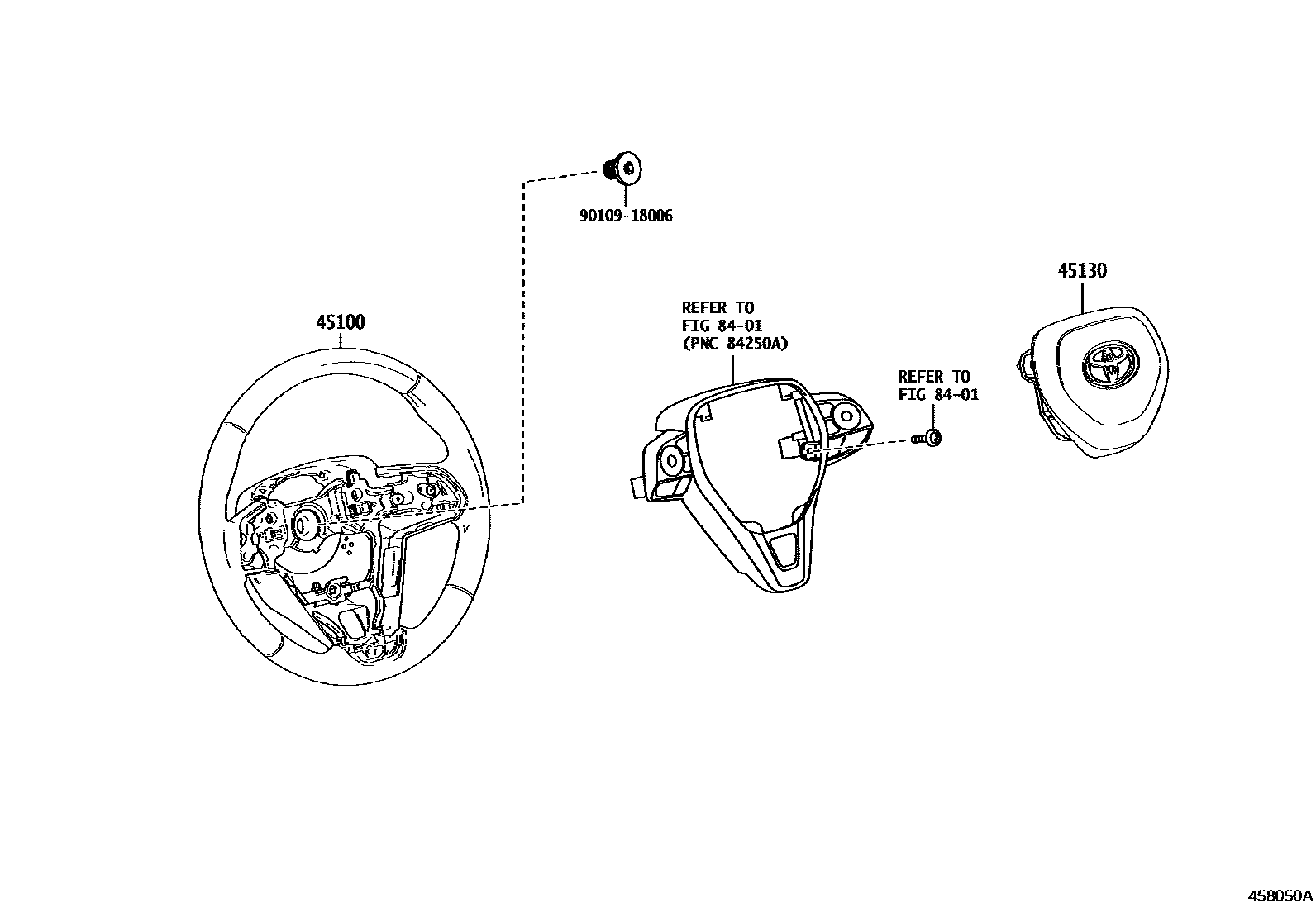

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0Z410-C0iMZEA12,MZEH16..N202304

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0Z420-C0iMZEA12..G202107-202304

3-SPOKE,LEATHER,BLACK,TRIM2#,4#

45130BUTTON ASSY, HORN

main45130-02890-C0iMZEA12..G; MZEA12..N202107-202304

BLACK,TRIM2#; BLACK,TRIM2#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

4 parts on this diagram · 1 diagram in section
