Toyota LEVIN 16C — FRONT AXLE HUB

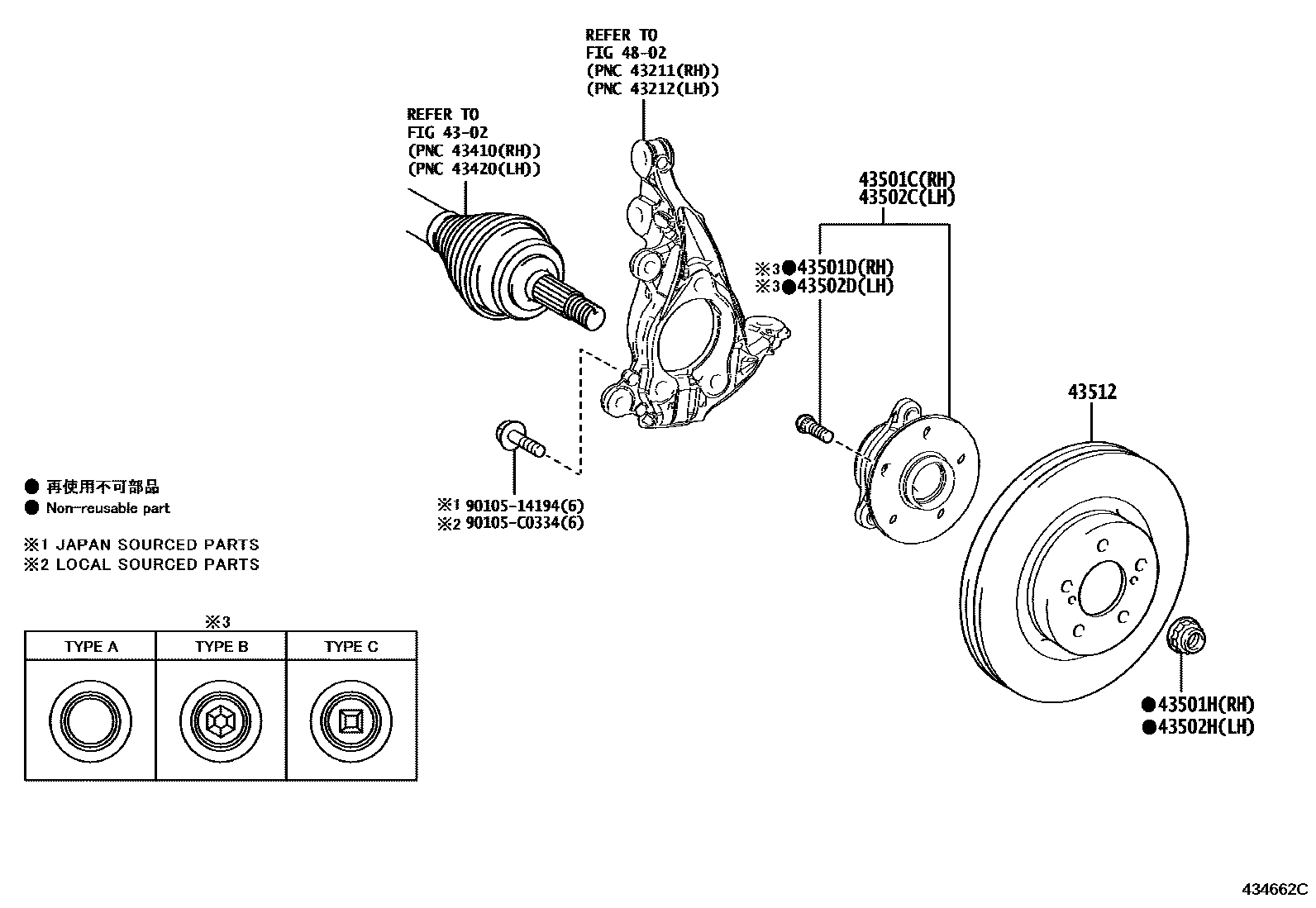

Parts diagram
4302FRONT DRIVE SHAFT
→ Go to FIG 43-02
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
43512-02430
4802FRONT AXLE ARM & STEERING KNUCKLE
→ Go to FIG 48-02
9010514194
90105-14194
90105C0334
90105-C0334

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LEVIN 16C

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LEVIN 16C. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
