IGNITION COIL & SPARK PLUG / GLOW PLUG

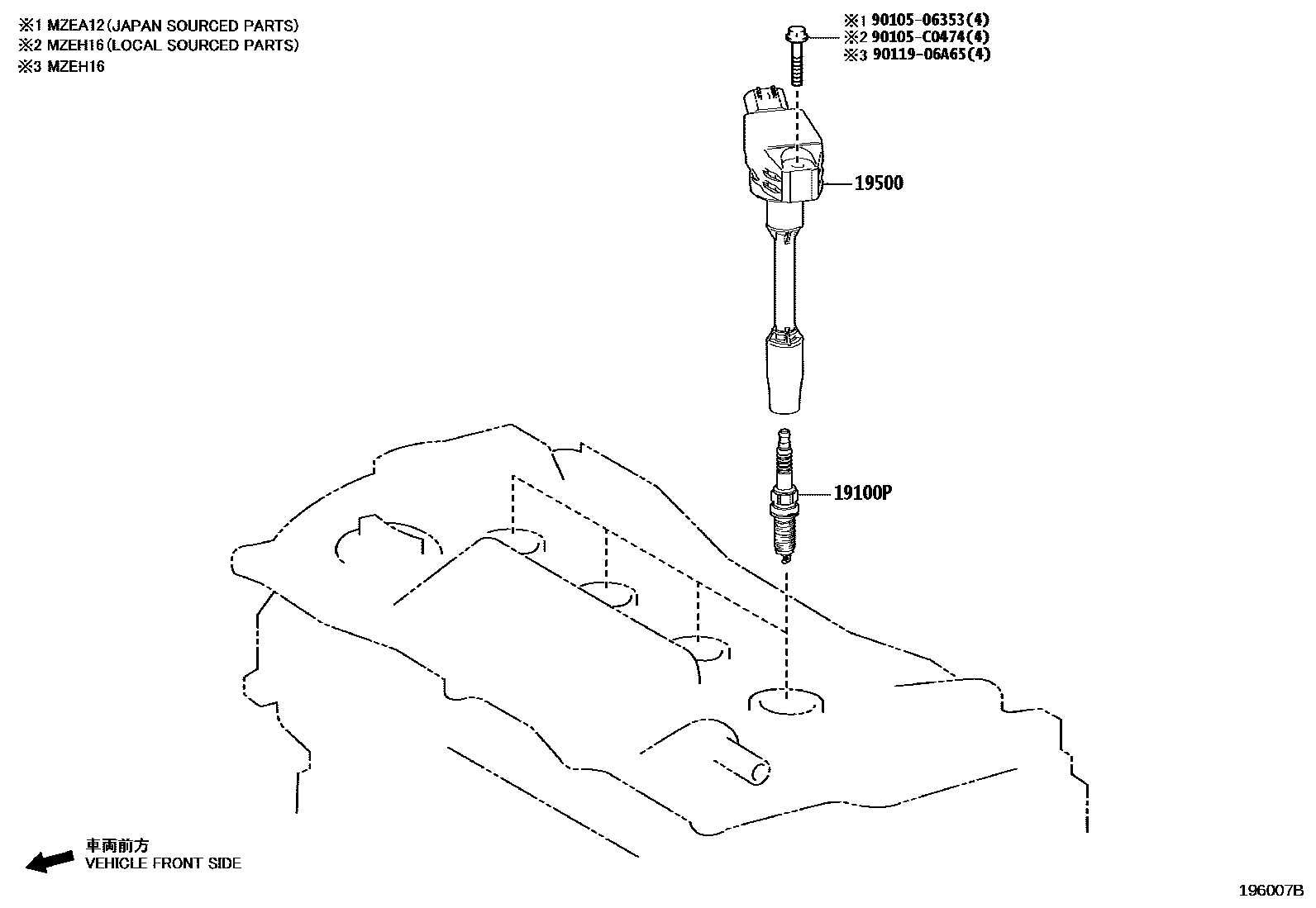

Parts diagram

19100PPLUG, SPARK

main90919-01289×4i202307

FC16HR-Q8

main90919-01297×4i202107-202304

FC20HR-Q8

19500COIL ASSY, IGNITION

main90919-C2009×4i202107-202304

main90919-C2010×4i202307

9010506353

main90105-06353

90105C0474

main90105-C0474

9011906A65

main90119-06A65

5 parts on this diagram · 1 diagram in section
