HEATING & AIR CONDITIONING - COMPRESSOR

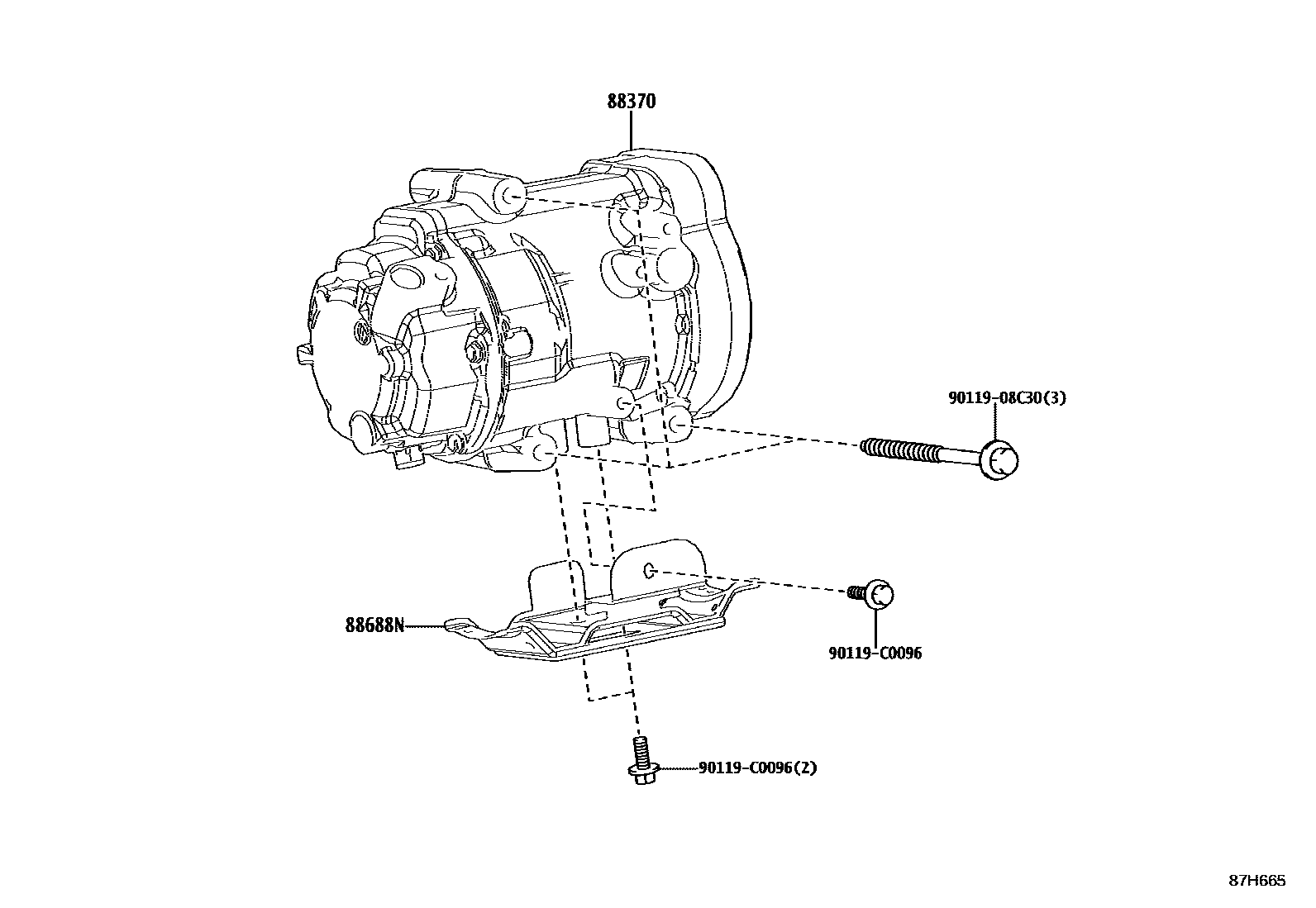

Parts diagram

88370COMPRESSOR ASSY, W/MOTOR

main88370-02040i202108

main88370-12040i201904-202108

88688NBRACKET, COOLER

main88688-02F50i201904

9011908C30

main90119-08C30

90119C0096

main90119-C0096

4 parts on this diagram · 1 diagram in section
