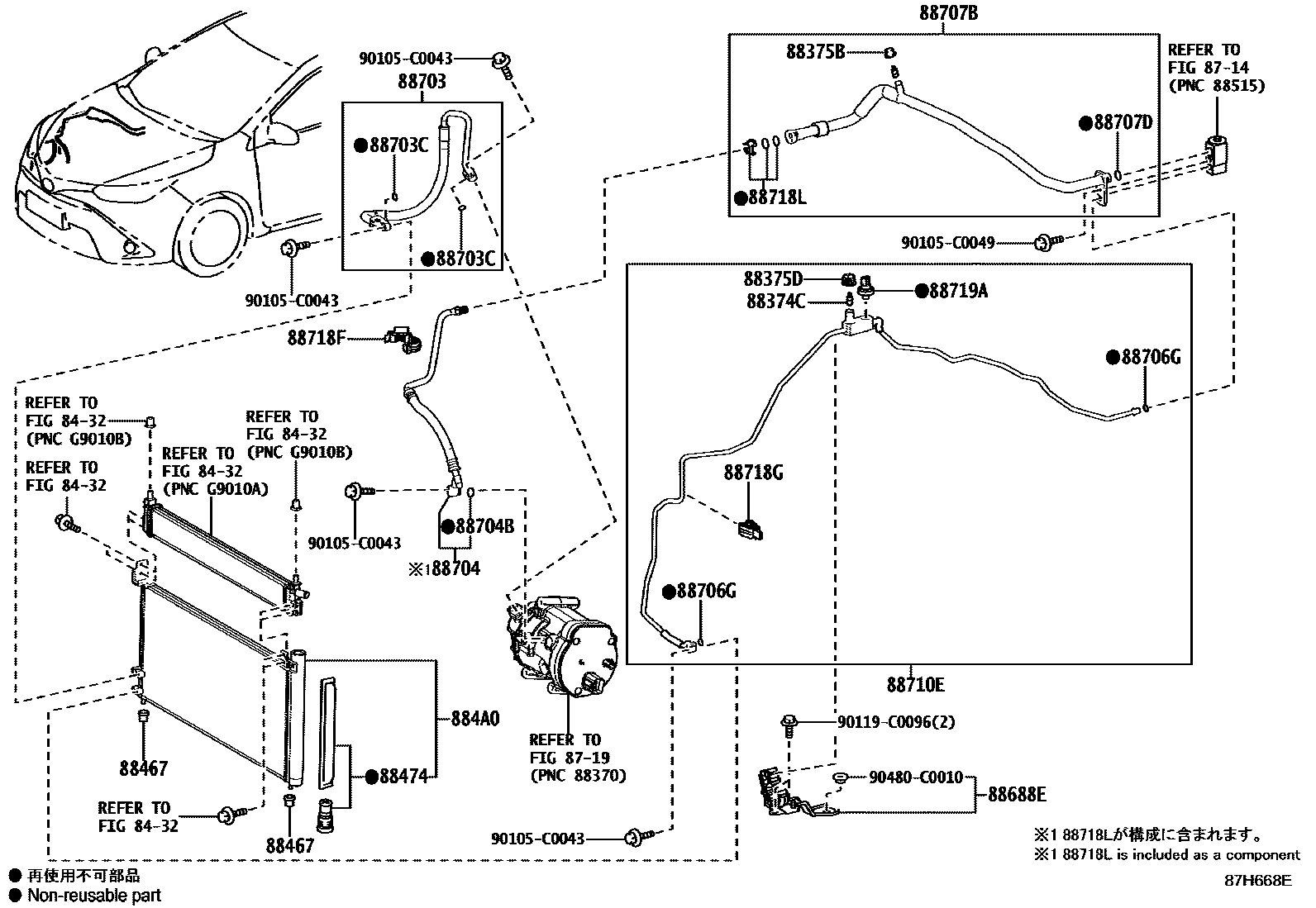

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-30010iZWE183201904

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZWE183201904

88375DCAP, SERVICE VALVE, NO.2

main88375-0D010iZWE183201904

88467CUSHION, COOLER CONDENSER, NO.1

main88467-0F020×2iZWE183201904

88474DRYER, COOLER

main88474-12020iZWE183201904

884A0CONDENSER ASSY, COOLER

main884A0-02270iZWE183201904

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-02E30iZWE183201904

88703HOSE SUB-ASSY, DISCHARGE

main88703-02E10iZWE183201904

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iZWE183201904

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-02E30iZWE183201904

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iZWE183201904

ID=13.4,OD=18.2

88706GRING, O(FOR LIQUID TUBE)

main90099-14119×2iZWE183201904

ID=6.7,OD=10.3

88707BTUBE SUB-ASSY, SUCTION, B

main88707-02720iZWE183201904

88707DRING, O(FOR SUCTION TUBE)

main90099-14121iZWE183201904

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-02G10iZWE183201904

88718FCLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

main88718-02780iZWE183201904

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-02A70iZWE183201904

88718LCLAMP, PIPING

main88718-52280iZWE183201904

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iZWE183201904

90105C0043

main90105-C0043

90105C0049

main90105-C0049

90119C0096

main90119-C0096

90480C0010

main90480-C0010

26 parts on this diagram · 1 diagram in section
