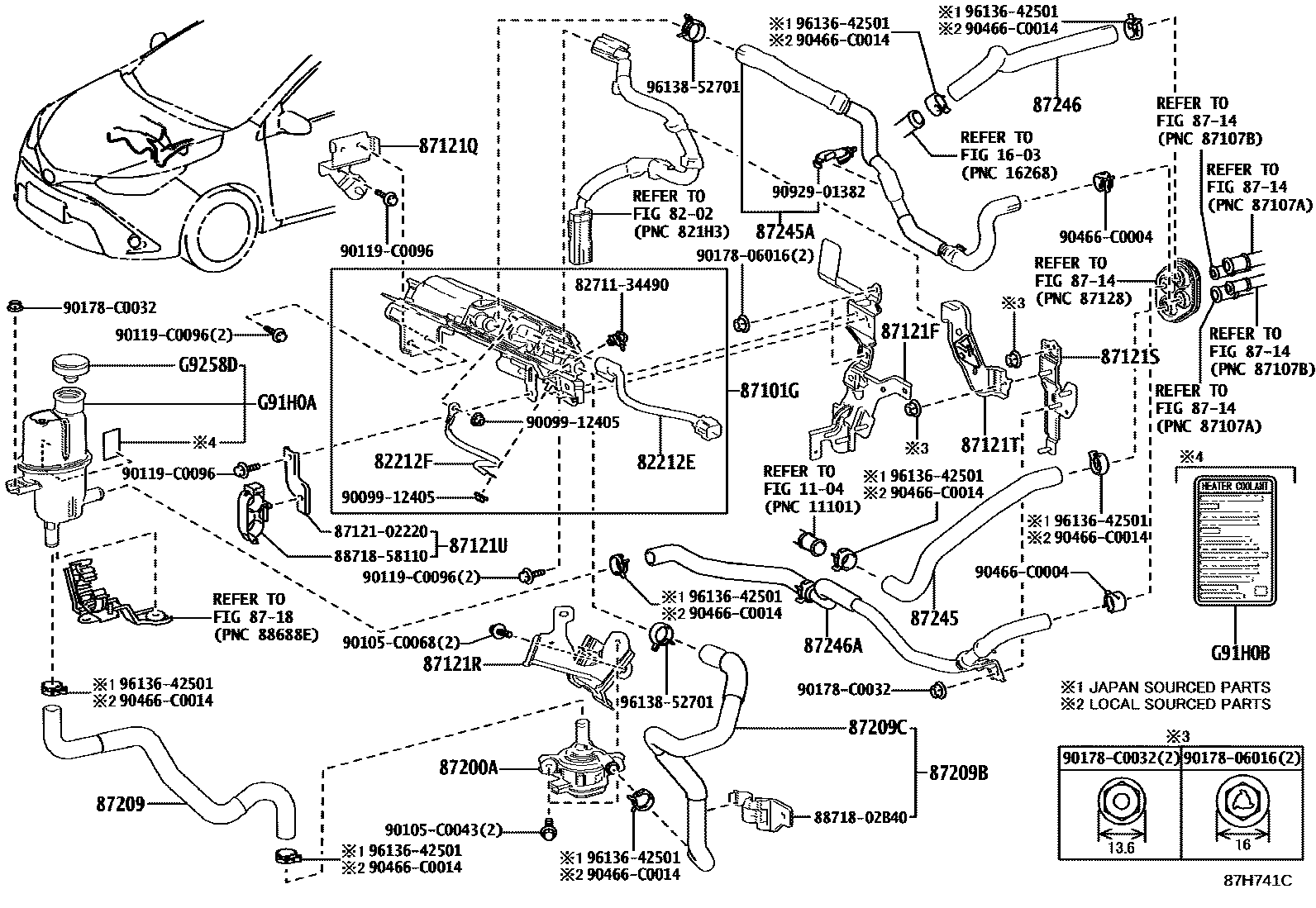

HEATING & AIR CONDITIONING - WATER PIPING
1104
1603
8202
87101GHEATER SUB-ASSY, ELECTRIC
87121FBRACKET, HEATER
87121QBRACKET, HEATER NO.2
87121RBRACKET, HEATER NO.3
87121SBRACKET, HEATER NO.4
87121TBRACKET, HEATER NO.5
87121UBRACKET, HEATER NO.6
8714
8718
87200APUMP ASSY, WATER(FOR HEATER)
LOCAL SOURCED PARTS
87209HOSE SUB-ASSY, WATER
87209BHOSE SUB-ASSY, WATER, B
87209CHOSE SUB-ASSY, WATER, C
87245HOSE, HEATER WATER, INLET
87245AHOSE, HEATER WATER, INLET A
87246HOSE, HEATER WATER, OUTLET
87246AHOSE, HEATER WATER, OUTLET A
G91H0ATANK ASSY, HEATER RESERVE
G91H0BLABEL, COOLANT SYSTEM INFORMATION
G9258DCAP, HEATER RESERVE TANK
8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34490
8712102220BRACKET, HEATER, FRONT RH
main87121-02220
8871802B40PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-02B40
8871858110PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-58110
9009912405
main90099-12405
90105C0043
main90105-C0043
90105C0068
main90105-C0068
90119C0096
main90119-C0096
9017806016
main90178-06016
90178C0032
main90178-C0032
90466C0004
main90466-C0004
90466C0014
main90466-C0014
9092901382
main90929-01382
9613642501
main96136-42501
9613852701
main96138-52701
40 parts on this diagram · 1 diagram in section
