Toyota 16A310HORN

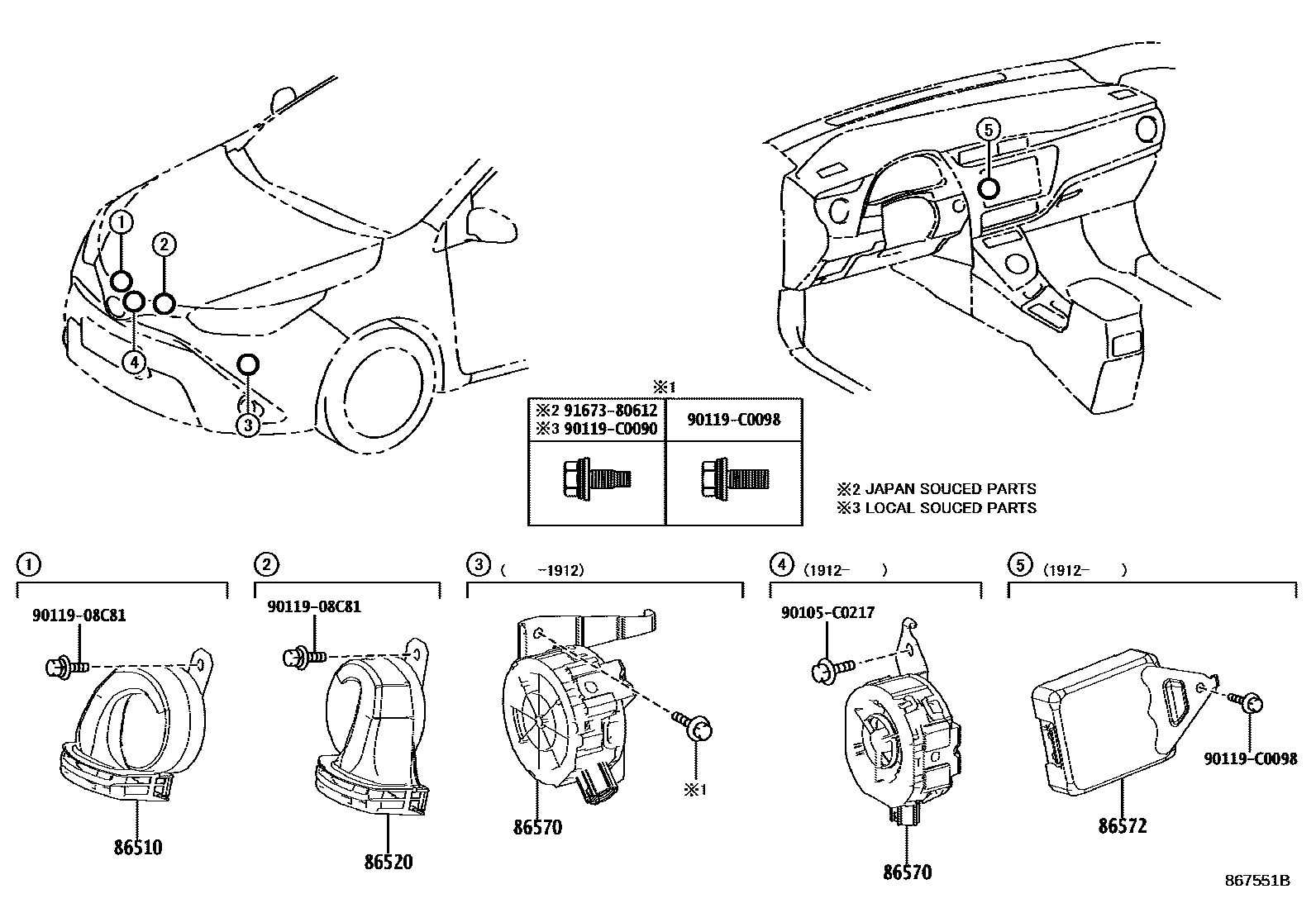

Parts diagram
86510HORN ASSY, HIGH PITCHED
86520HORN ASSY, LOW PITCHED
86570SPEAKER ASSY, VEHICLE APPROACHING
86572CONTROLLER, VEHICLE APPROACHING SPEAKER
90105C0217
9011908C81
90119C0090
90119C0098
9167380612

9 parts on this diagram · 1 diagram in section

HORN for Toyota 16A310

This section contains 9 genuine Toyota parts for the HORN system of the Toyota 16A310. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
