SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1DOOR,FLOOR & LUGGAGE

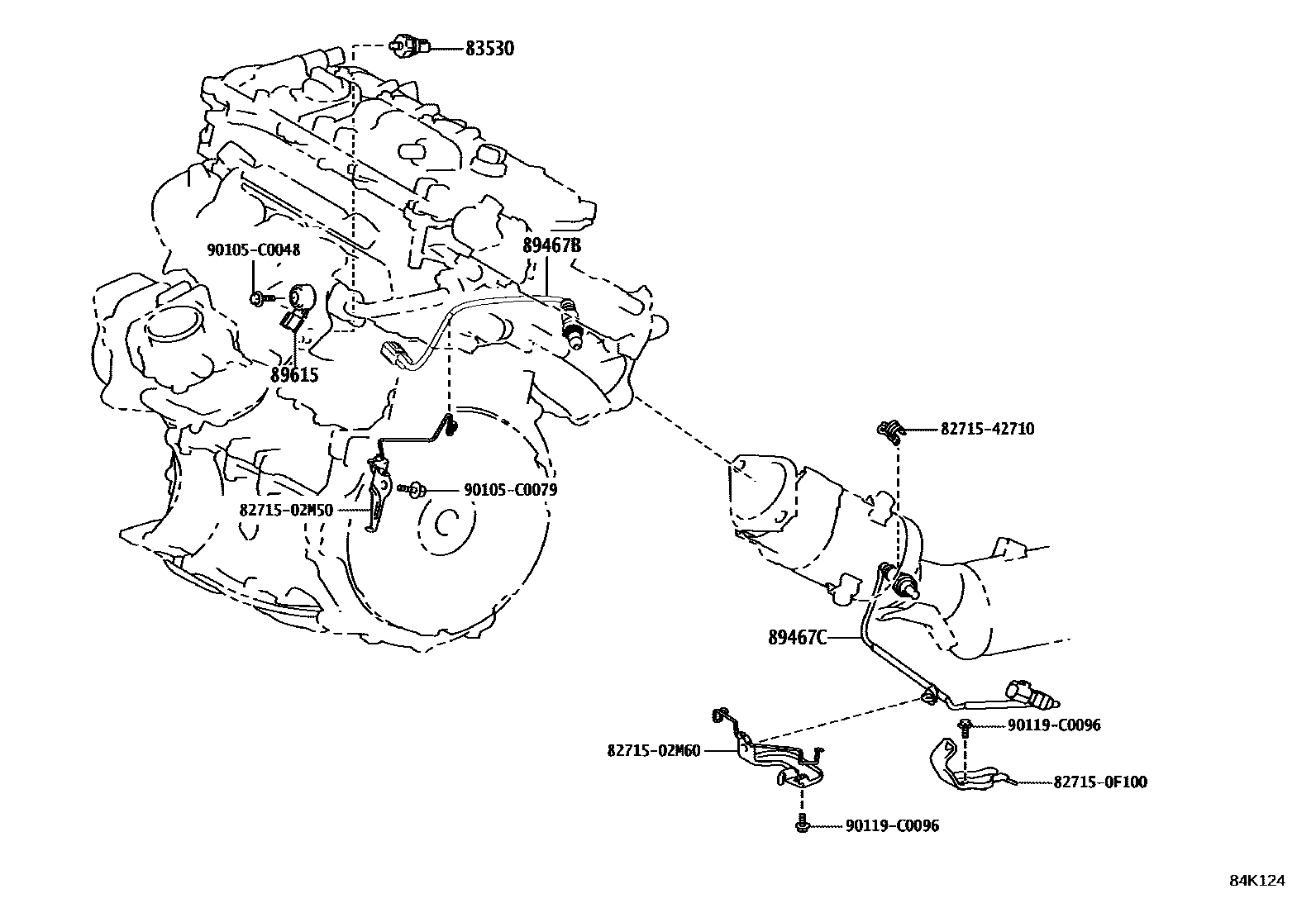

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZWE183201904

89467BSENSOR, AIR FUEL RATIO

main89467-0R070iZWE183201904

89467CSENSOR, AIR FUEL RATIO, NO.2

main89465-02440iZWE183201904

89615SENSOR, KNOCK CONTROL

main89615-20090iZWE183201904

8271502M50BRACKET,WIRING HARNESS CLAMP

main82715-02M50

8271502M60BRACKET,WIRING HARNESS CLAMP

main82715-02M60

827150F100BRACKET,WIRING HARNESS CLAMP

main82715-0F100

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105C0048

main90105-C0048

90105C0079

main90105-C0079

90119C0096

main90119-C0096

11 parts on this diagram · 6 diagrams in section
