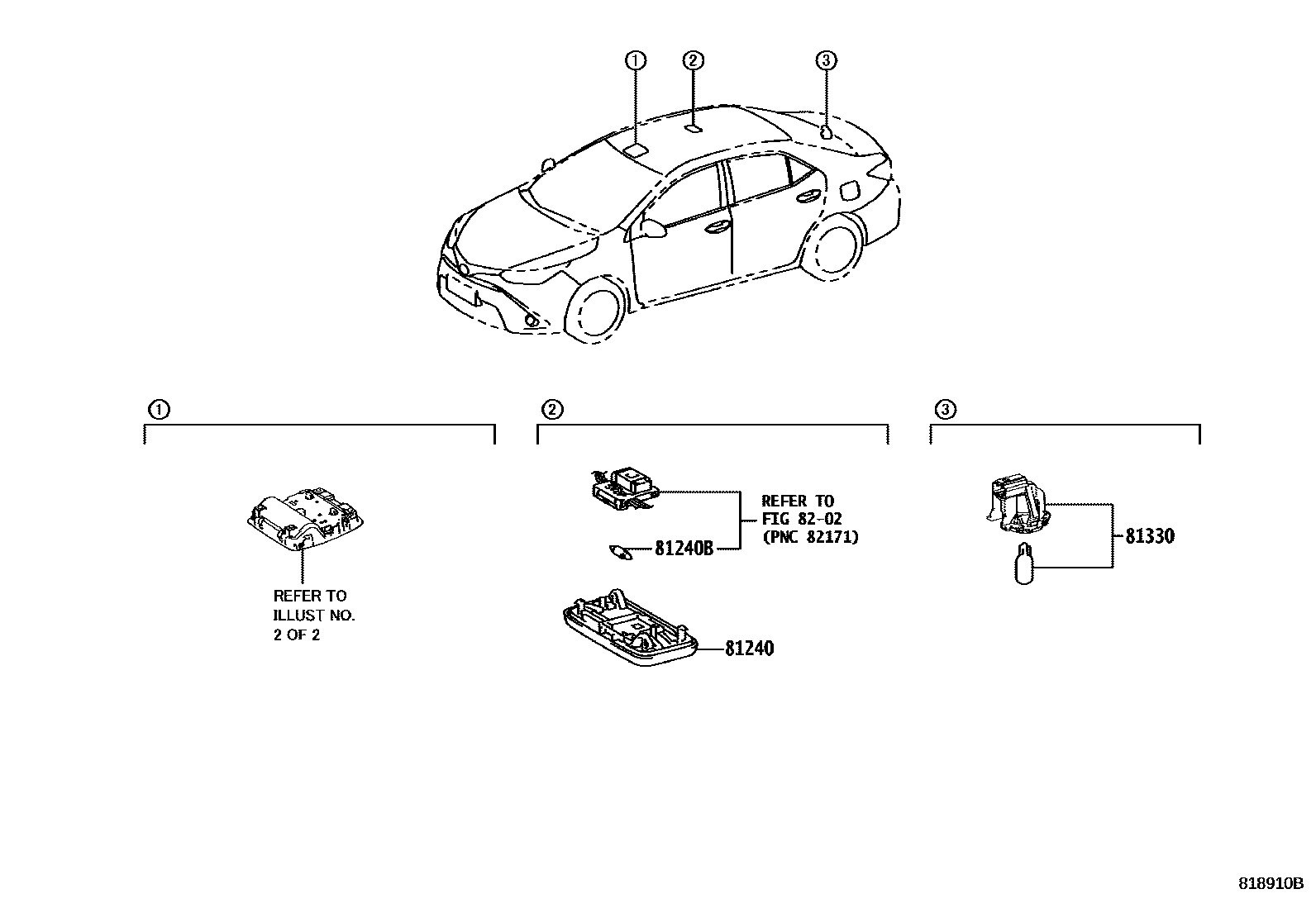

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-12100-B0iZWE183201906

LT.GRAY,TRIM2#,4#

main81240-60060-B0iZWE183201904-201905

LT.GRAY,TRIM2#,4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZWE183201904

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0D040iZWE183201904

8202

4 parts on this diagram · 2 diagrams in section
