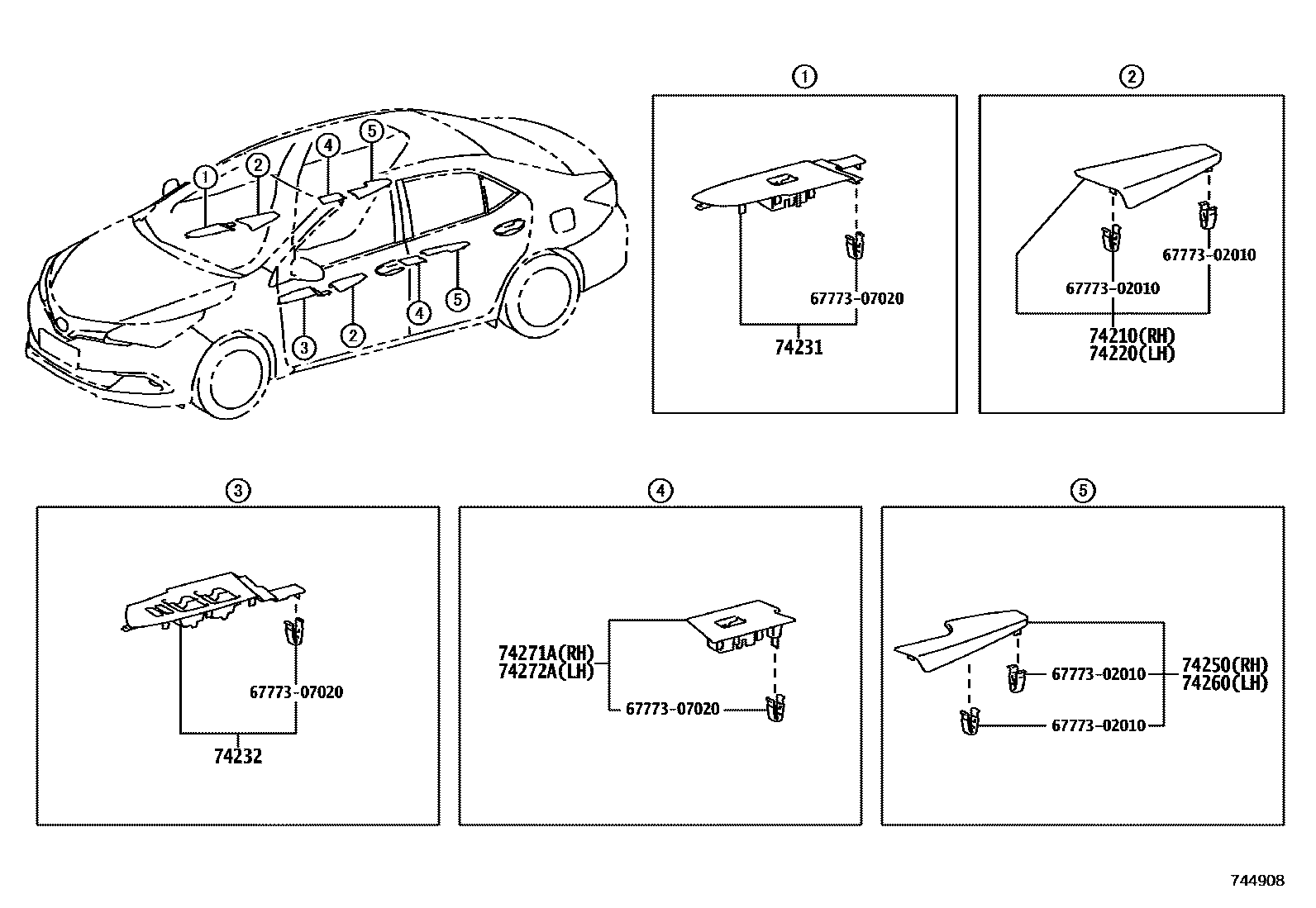

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-02490-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main74210-02500-C2iZWE183..V201904

BLACK,TRIM0#,2#,40

main74210-02500-E0iZWE183..V201904

SADDLE TAN,TRIM40

74220ARMREST ASSY, FRONT, LH

main74220-02460-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main74220-02470-C2iZWE183..V201904

BLACK,TRIM0#,2#,40

main74220-02470-E0iZWE183..V201904

SADDLE TAN,TRIM40

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02D00-C0iZWE183201904

BLACK,TRIM0#,2#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02D50-C0iZWE183201904

BLACK,TRIM0#,2#,4#

74250ARMREST ASSY, REAR RH

main74250-02590-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main74250-02600-C2iZWE183..V201904

BLACK,TRIM0#,2#,40

main74250-02600-E0iZWE183..V201904

SADDLE TAN,TRIM40

74260ARMREST ASSY, REAR LH

main74260-02590-C0iZWE183..E,G201904

BLACK,TRIM0#,2#,4#

main74260-02600-C2iZWE183..V201904

BLACK,TRIM0#,2#,40

main74260-02600-E0iZWE183..V201904

SADDLE TAN,TRIM40

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02610-C0iZWE183201904

BLACK,TRIM0#,2#,4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02540-C0iZWE183201904

BLACK,TRIM0#,2#,4#

6777302010

main67773-02010

6777307020

main67773-07020

10 parts on this diagram · 2 diagrams in section
