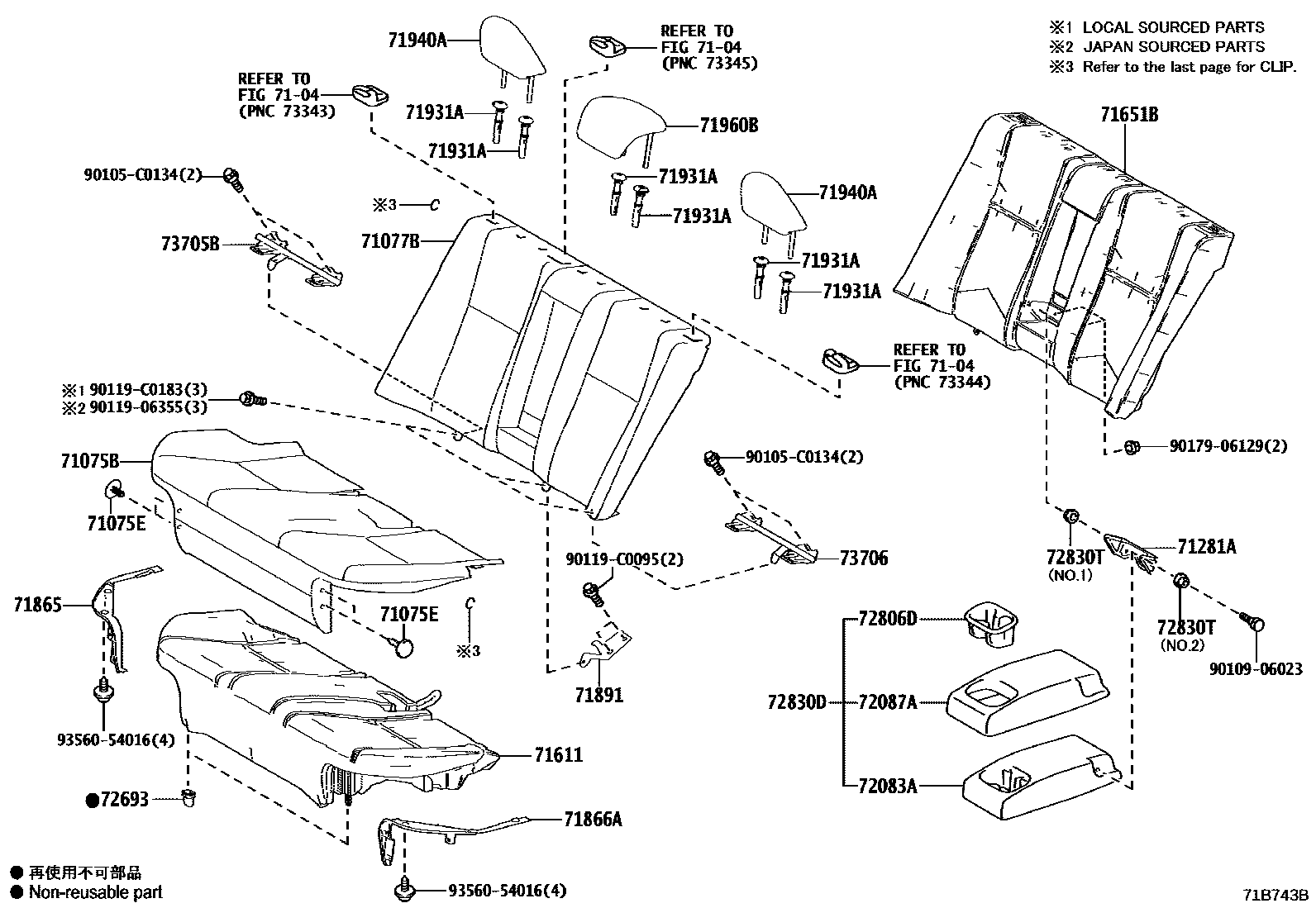

REAR SEAT & SEAT TRACK

0001 1 0002 1SEAT COVER EDGE WIRE & CLIP

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0Z760-C1iZWE183..E,G201904

BLACK,TRIM2#

main71075-0Z760-E0iZWE183..E,G201904

SADDLE TAN,TRIM4#

main71075-0Z770-C1iZWE183..V201904

BLACK,TRIM2#

main71075-0Z770-E2iZWE183..V201904

SADLLE TAN,TRIM4#

71075ECLIP(FOR REAR SEAT)

main90467-C0012-C0×4iZWE183201904

BLACK

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-0ZG60-C1iZWE183..V201904

BLACK,TRIM2#

main71077-0ZG60-E2iZWE183..V201904

SADLLE TAN,TRIM4#

main71077-0ZM40-C0iZWE183..E,G201904

BLACK,TRIM2#

main71077-0ZM40-E0iZWE183..E,G201904

SADDLE TAN,TRIM4#

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-02100iZWE183201904

71611PAD, REAR SEAT CUSHION

main71503-02790iZWE183201904

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-02460iZWE183201904

71865BEZEL, REAR SEAT COVER, NO.1

main71865-02050-C0iZWE183201904

BLACK,TRIM2#,4#

71866ABEZEL, REAR SEAT COVER, NO.2

main71866-02020-C0iZWE183201904

BLACK,TRIM2#,4#

71891BRACKET, REAR SEATBACK SET, NO.1

main71891-02030iZWE183201904

71931ASUPPORT, REAR SEAT HEADREST

main71930-02360-C0×3iZWE183201904

W(LOCK),BLACK,TRIM2#,4#

main71931-02120-C0×3iZWE183201904

W/O(LOCK),BLACK,TRIM2#,4#

71940AHEADREST ASSY, REAR SEAT

main71940-02S60-C1×2iZWE183..V201904

BLACK,TRIM2#

main71940-02S60-E2×2iZWE183..V201904

SADDLE TAN,TRIM4#

main71940-02T90-B0×2iZWE183..E,G201904

GRAY,TRIM4#

main71940-02T90-C0×2iZWE183..E,G201904

BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-02K10-B0iZWE183..E,G201904

GRAY,TRIM4#

main71960-02K10-C0iZWE183..E,G201904

BLACK,TRIM2#

main71960-02K20-C1iZWE183..V201904

BLACK,TRIM2#

main71960-02K20-E2iZWE183..V201904

SADDLE TAN,TRIM4#

72083APAD SUB-ASSY, REAR SEAT CENTER ARMREST

main72083-02590iZWE183201904

72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST

main72087-02K30-B0iZWE183..E,G201904

GRAY,TRIM4#

main72087-02K30-C0iZWE183..E,G201904

BLACK,TRIM2#

main72087-02K50-C0iZWE183..V201904

BLACK,TRIM2#

main72087-02K50-E0iZWE183..V201904

SADDLE TAN,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02030×2iZWE183201904

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-02320-C0iZWE183201904

BLACK,TRIM2#,4#

72830DARMREST ASSY, REAR SEAT, RH

main72830-02Q10-B1iZWE183..E,G201904

GRAY,TRIM4#

main72830-02Q10-C1iZWE183..E,G201904

BLACK,TRIM2#

main72830-02Q30-C1iZWE183..V201904

BLACK,TRIM2#

main72830-02Q30-E1iZWE183..V201904

SADDLE TAN,TRIM4#

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main90386-06011iZWE183201904

NO.1:REFER ILLUST.

main90386-08077iZWE183201904

NO.2:REFER ILLUST.

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-02560iZWE183201904

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-02110iZWE183201904

90105C0134

main90105-C0134

9010906023

main90109-06023

9011906355

main90119-06355

90119C0095

main90119-C0095

90119C0183

main90119-C0183

9017906129

main90179-06129

9356054016

main93560-54016

28 parts on this diagram · 2 diagrams in section
