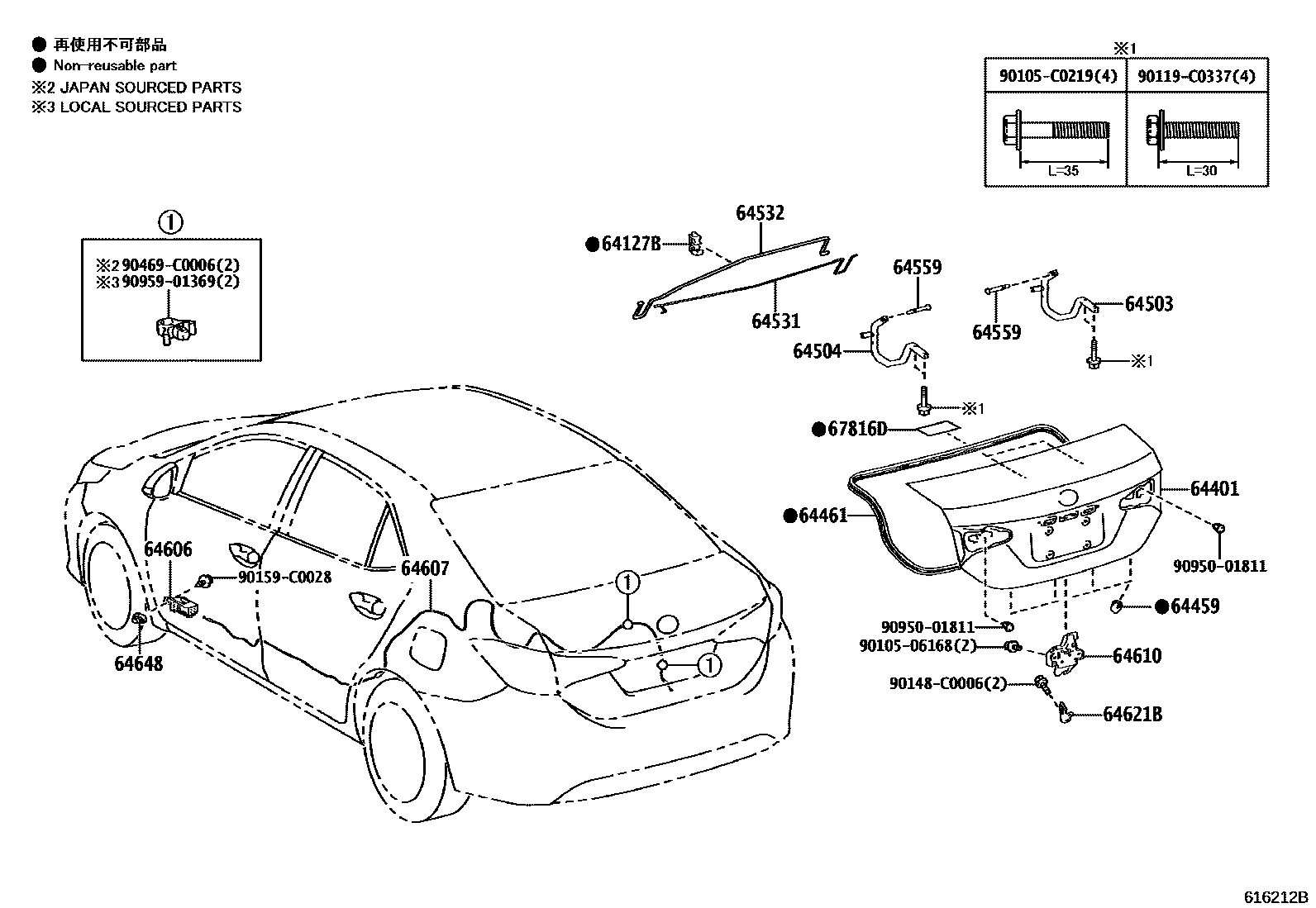

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D080iZWE183201904

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02A80iZWE183201904

main64401-02D71iZWE183..G,V201904

AUDIO-AVN(ACCESSORY) & 4SPEAKER

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×4iZWE183201904-202001

main90541-C0009×4iZWE183202001

(L)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02240iZWE183201904

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02201iZWE183201904

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02201iZWE183201904

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02361iZWE183201904

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02361iZWE183201904

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iZWE183201904

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-02150iZWE183201904

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02470iZWE183201904

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02111iZWE183201904

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06070iZWE183201904

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32010iZWE183201904

67816DSHEET, BACK DOOR PANEL SILENCER

main67816-02061×2iZWE183201904

9010506168

main90105-06168

90105C0219

main90105-C0219

90119C0337

main90119-C0337

90148C0006

main90148-C0006

90159C0028

main90159-C0028

90469C0006

main90469-C0006

9095001811

main90950-01811

9095901369

main90959-01369

23 parts on this diagram · 1 diagram in section
