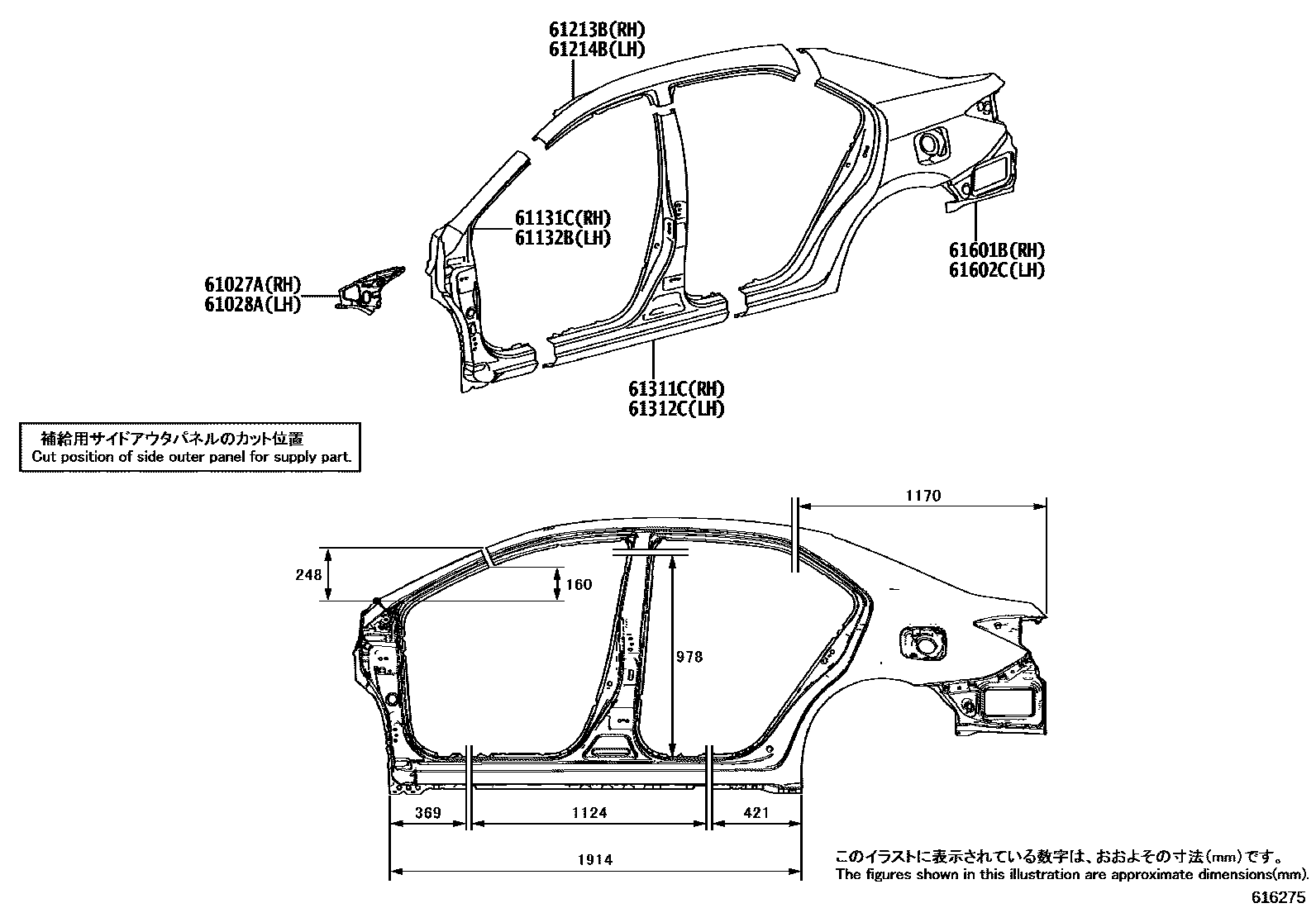

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-02070iZWE183201904

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-02070iZWE183201904

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02340iZWE183201904

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02370iZWE183201904

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02120iZWE183201904

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-02120iZWE183201904

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02330iZWE183201904

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02320iZWE183201904

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02490iZWE183201904

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02520iZWE183201904

10 parts on this diagram · 3 diagrams in section
