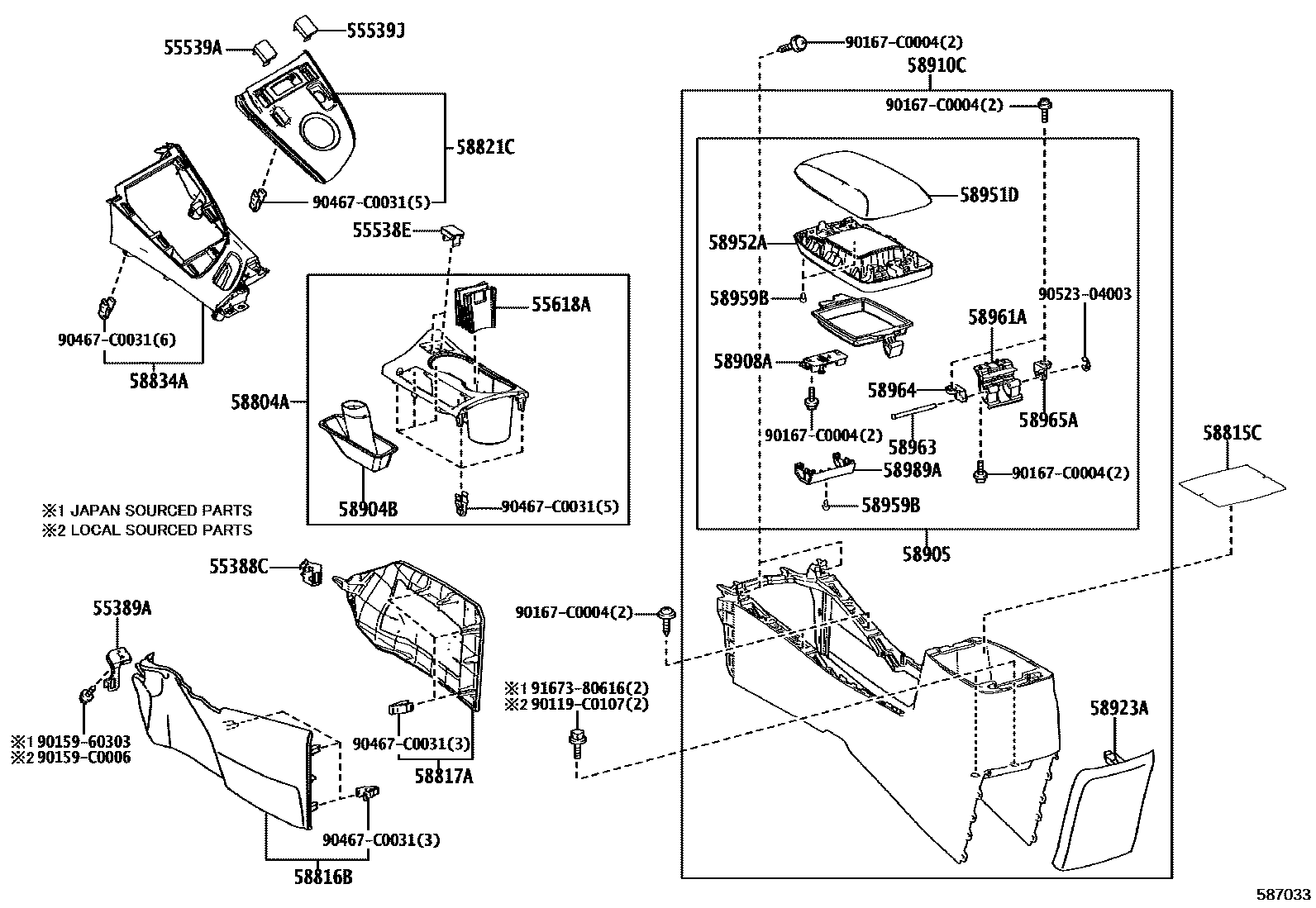

CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55538ECOVER, SPARE SWITCH HOLE
BLACK,TRIM0#,2#,4#
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM2#,4#
55539JCOVER, SPARE SWITCH HOLE
BLACK,TRIM0#,2#,4#
55618AHOLDER, CONSOLE BOX CUP
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58815CCARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
BLACK,TRIM0#,2#,4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#,4#
58821CPANEL, CONSOLE, UPPER
58834ACOVER, CONSOLE, LOWER
BLACK,TRIM0#,2#,4#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY/R080,TRIM2#,4#
BLACK,TRIM2#
SADDLE TAN,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
SADDLE TAN,TRIM4#
BLACK,TRIM2#,4#
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,2#,4#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#,4#
BLACK,TRIM2#
SADDLE TAN,TRIM4#
58952ADOOR, CONSOLE COMPARTMENT, INNER
BLACK,TRIM2#,4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58989ARETAINER, CONSOLE BOX
BLACK,TRIM2#,4#
90119C0107
main90119-C0107
9015960303
main90159-60303
90159C0006
main90159-C0006
90167C0004
main90167-C0004
90467C0031
main90467-C0031
9052304003
main90523-04003
9167380616
main91673-80616
32 parts on this diagram · 1 diagram in section
