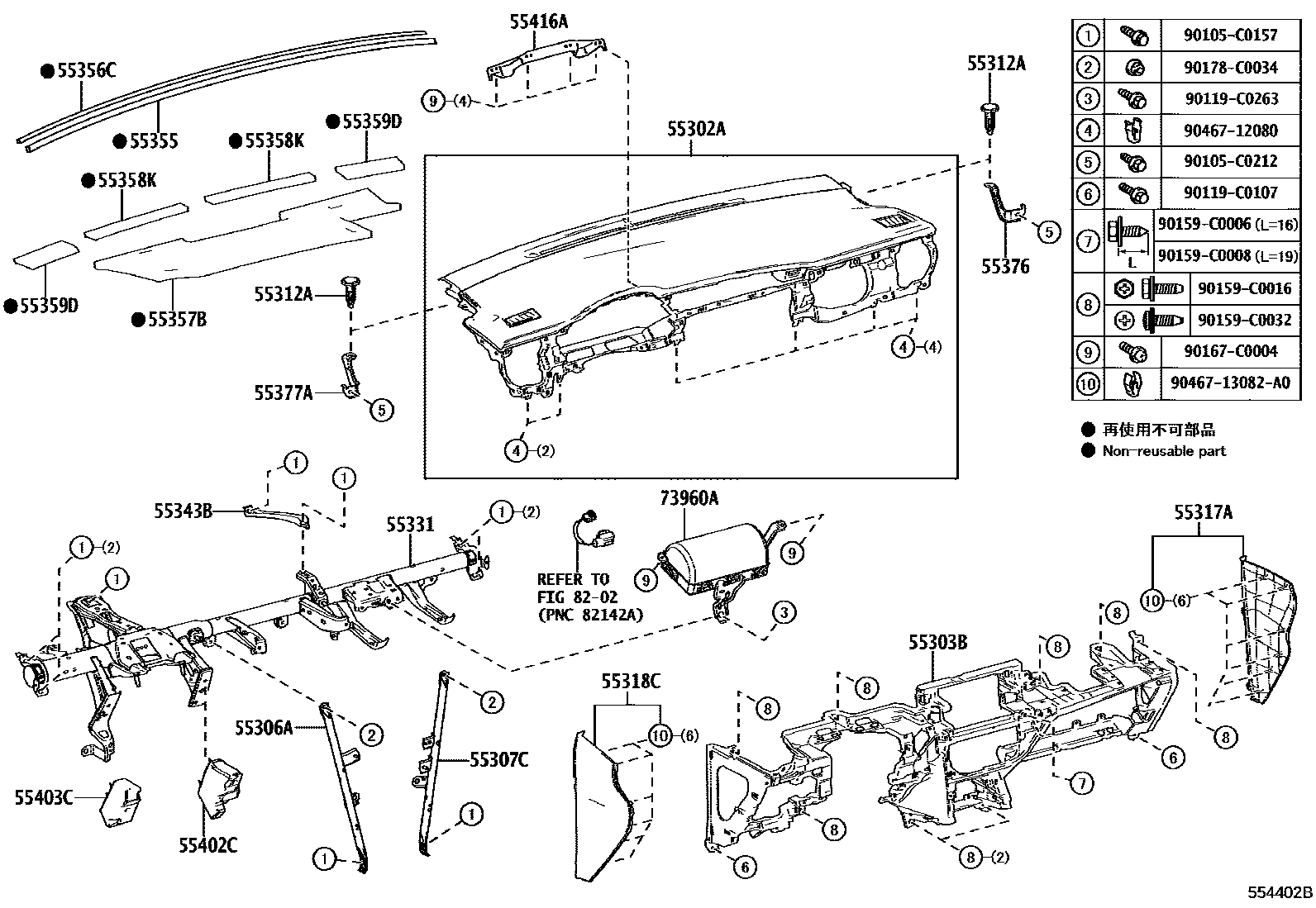

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02620-C0iZWE183201904-202010

BLACK,TRIM0#,2#,4#

main55302-02620-C1iZWE183202010

BLACK,TRIM2#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02471-C0iZWE183201904

BLACK,TRIM0#,2#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02760iZWE183201904

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02600iZWE183201904

55312ACLIP, INSTRUMENT PANEL

main52161-02040×2iZWE183201904

55317APANEL, INSTRUMENT SIDE, RH

main55317-02770-C0iZWE183201904

BLACK,TRIM0#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-02400-C0iZWE183201904

BLACK,TRIM0#,2#,4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-02B60iZWE183201904

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02250iZWE183201904

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02410iZWE183201904

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55355-02460iZWE183201904

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55356-02500iZWE183201904

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-02180×2iZWE183201904

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-02180×2iZWE183201904

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-02170iZWE183201904

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-02160iZWE183201904

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-02090iZWE183201904

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-02190iZWE183201904

55416ARETAINER, METER HOOD, NO.1

main55416-02260iZWE183201904

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02241iZWE183201904

8202

90105C0157

main90105-C0157

90105C0212

main90105-C0212

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90159C0006

main90159-C0006

90159C0008

main90159-C0008

90159C0016

main90159-C0016

90159C0032

main90159-C0032

90167C0004

main90167-C0004

90178C0034

main90178-C0034

9046712080

main90467-12080

9046713082A0

main90467-13082A0

33 parts on this diagram · 4 diagrams in section
