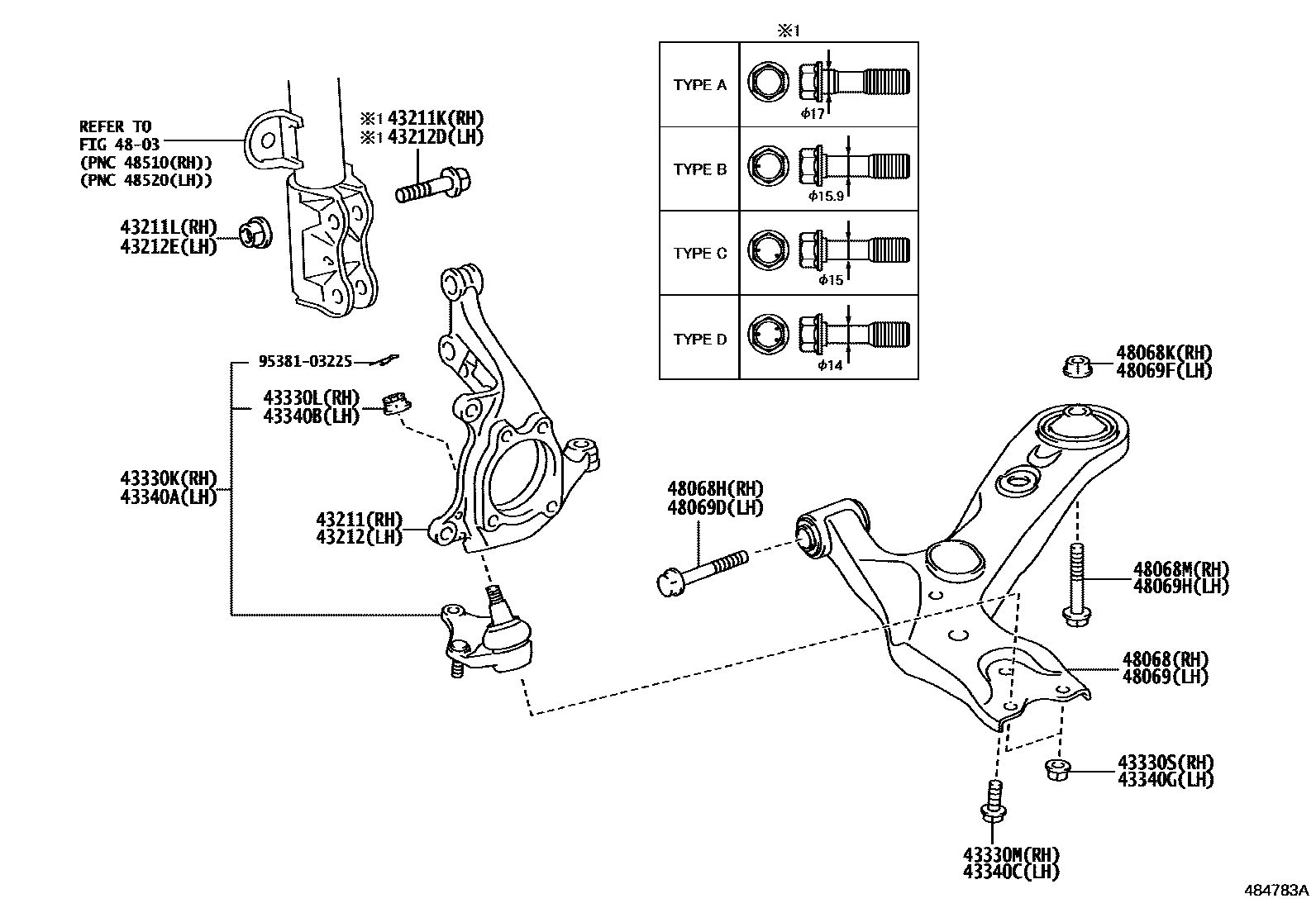

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0F030iZWE183201904

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iZWE183201904

OD=17,(J),TYPE A:REF ILL.

main90105-17009iZWE183201904

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZWE183201904

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZWE183201904

OD=14,TYPE D:REFER ILLUST.

main90105-C0246×2iZWE183201904

OD=17,(L),TYPE A:REF ILL.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2iZWE183201904

(J)

main90178-C0084×2iZWE183201904

(L)

43212KNUCKLE, STEERING, LH

main43212-0F030iZWE183201904

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iZWE183201904

OD=17,(J),TYPE A:REF ILL.

main90105-17009iZWE183201904

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZWE183201904

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZWE183201904

OD=14,TYPE D:REFER ILLUST.

main90105-C0246×2iZWE183201904

OD=17,(L),TYPE A:REF ILL.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2iZWE183201904

(J)

main90178-C0084×2iZWE183201904

(L)

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09A70iZWE183201904

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iZWE183201904

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-C0067iZWE183201904

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2iZWE183201904

(J)

main90178-C0062×2iZWE183201904

(L)

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09A70iZWE183201904

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iZWE183201904

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-C0067iZWE183201904

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2iZWE183201904

(J)

main90178-C0062×2iZWE183201904

(L)

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0F040iZWE183201904-202009

main48068-0F041iZWE183202010

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-C0066iZWE183201904

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-C0016iZWE183201904

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-C0066iZWE183201904

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0F040iZWE183201904-202009

main48069-0F041iZWE183202010

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-C0066iZWE183201904

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-C0016iZWE183201904

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-C0066iZWE183201904

9538103225

main95381-03225

24 parts on this diagram · 1 diagram in section
