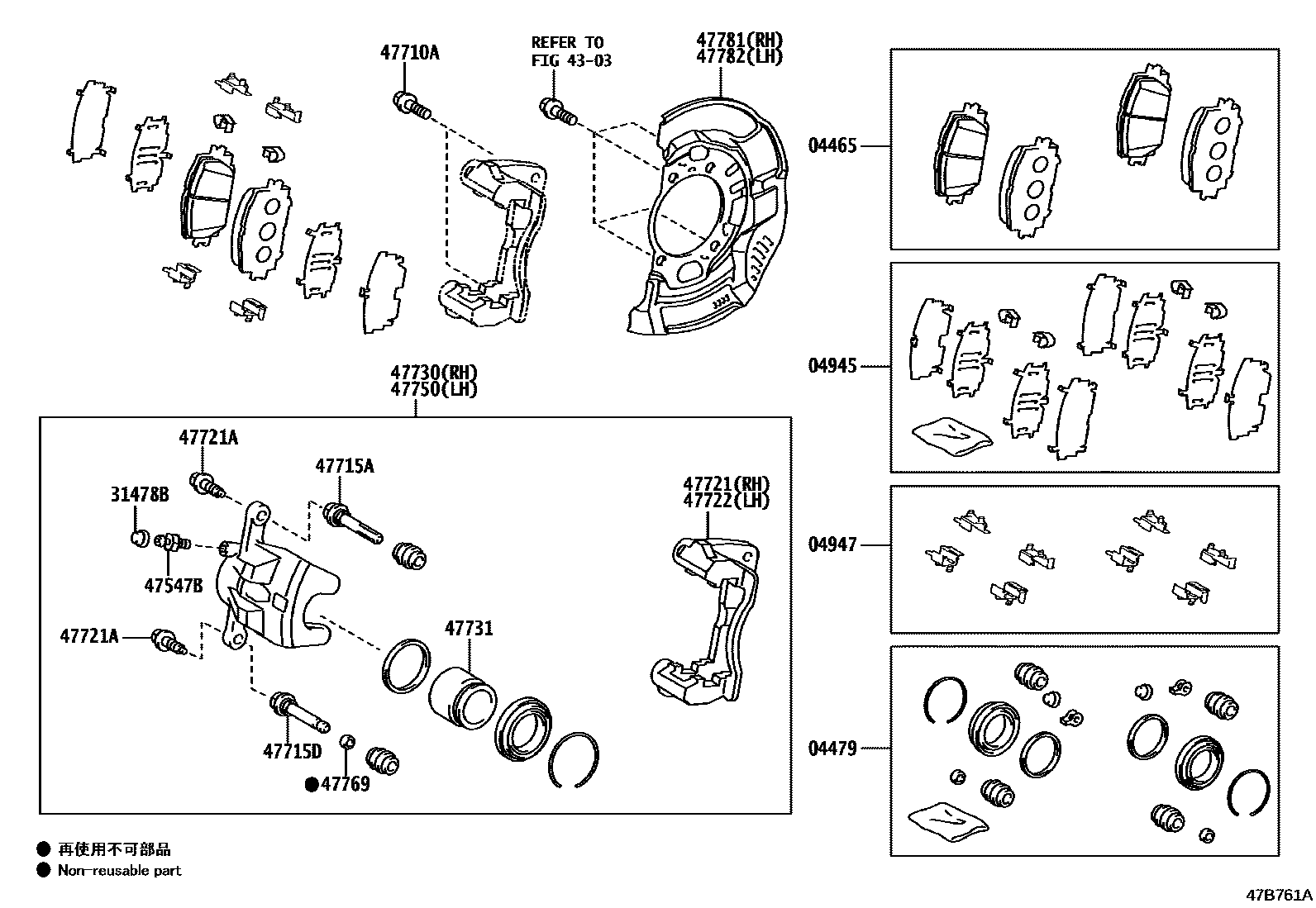

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02380iZWE183201904

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02180iZWE183201904

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02200iZWE183201904

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0R020iZWE183201904

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010×2iZWE183201904

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iZWE183201904

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021×4iZWE183201904

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0R020×2iZWE183201904

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0D210×2iZWE183201904

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02570iZWE183201904

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608×4iZWE183201904

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02310iZWE183201904

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02570iZWE183201904

47731PISTON, FRONT DISC BRAKE

main47731-02390×2iZWE183201904

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02310iZWE183201904

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010×2iZWE183201904

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02240iZWE183201904

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02240iZWE183201904

19 parts on this diagram · 1 diagram in section
