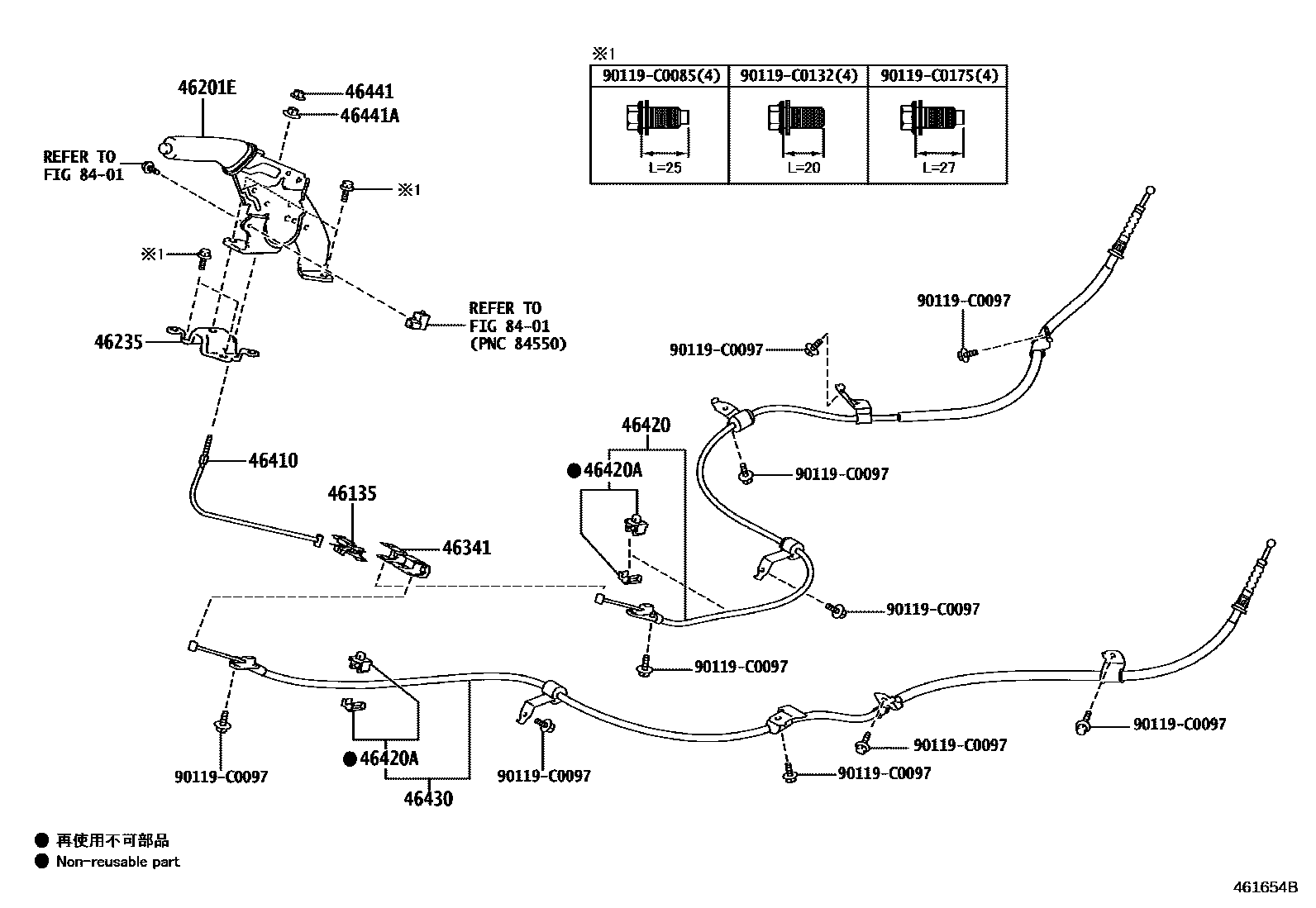

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-02090iZWE183201904

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02510-C0iZWE183201904

BLACK,TRIM0#,2#,4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0F030iZWE183201904

46341EQUALIZER, PARKING BRAKE

main46341-0F010iZWE183201904

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02220iZWE183201904

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02380iZWE183201904

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030×2iZWE183201904

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02370iZWE183201904

46441NUT, WIRE ADJUSTING, NO.1

main90178-C0032iZWE183201904

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iZWE183201904

8401

90119C0085

main90119-C0085

90119C0097

main90119-C0097

90119C0132

main90119-C0132

90119C0175

main90119-C0175

15 parts on this diagram · 1 diagram in section
