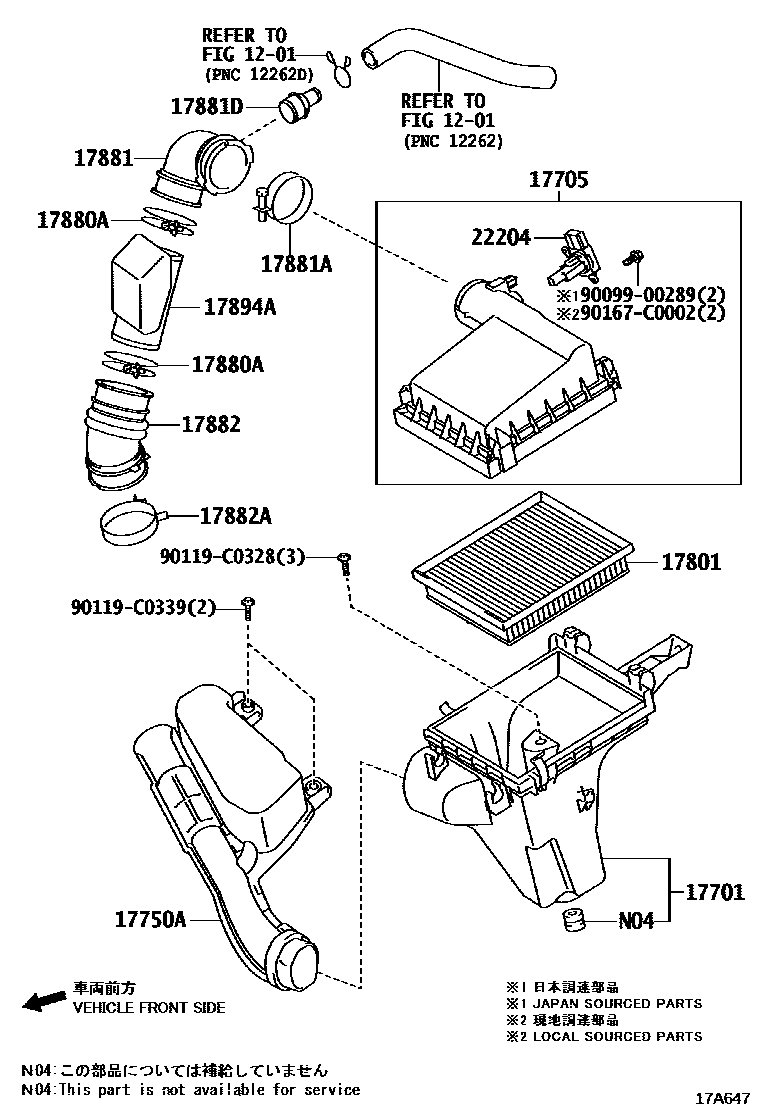

AIR CLEANER

0001 1 0002 1BEIJING SPEC

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T170i8ZRFXE..ZWE183201904

(L)

main17701-37170i8ZRFXE..ZWE183201904

(J)

17705CAP SUB-ASSY, AIR CLEANER

main17705-37131i8ZRFXE..ZWE183201904

main17705-0T210i8ZRFXE..ZWE183201904-202012

EXHAUST EMISSION CONTROL-CHINA 5

17750AINLET ASSY, AIR CLEANER

main17750-0T020i8ZRFXE..ZWE183201904

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T080i8ZRFXE..ZWE183201904

(L)

main17801-37021i8ZRFXE..ZWE183201904

(J)

17880ACLAMP, HOSE

main96111-10750×2i8ZRFXE..ZWE183201904

17881HOSE, AIR CLEANER, NO.1

main17881-0T430i8ZRFXE..ZWE183201904

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i8ZRFXE..ZWE183201904

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i8ZRFXE..ZWE183201904

17882HOSE, AIR CLEANER, NO.2

main17882-0T030i8ZRFXE..ZWE183201904

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i8ZRFXE..ZWE183201904

(J)

main90466-C0019i8ZRFXE..ZWE183201904

(L)

17894ARESONATOR, INTAKE AIR, NO.2

main17894-0T030i8ZRFXE..ZWE183201904

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i8ZRFXE..ZWE183201904

MARK 22204-0T040

main22204-0V010i8ZRFXE..ZWE183201904

MARK 22204-0V010

main22204-0V020i8ZRFXE..ZWE183201904

MARK 22204-0V020

main22204-28010i8ZRFXE..ZWE183201904

MARK 22204-28010

9009900289

main90099-00289

90119C0328

main90119-C0328

90119C0339

main90119-C0339

90167C0002

main90167-C0002

17 parts on this diagram · 2 diagrams in section
