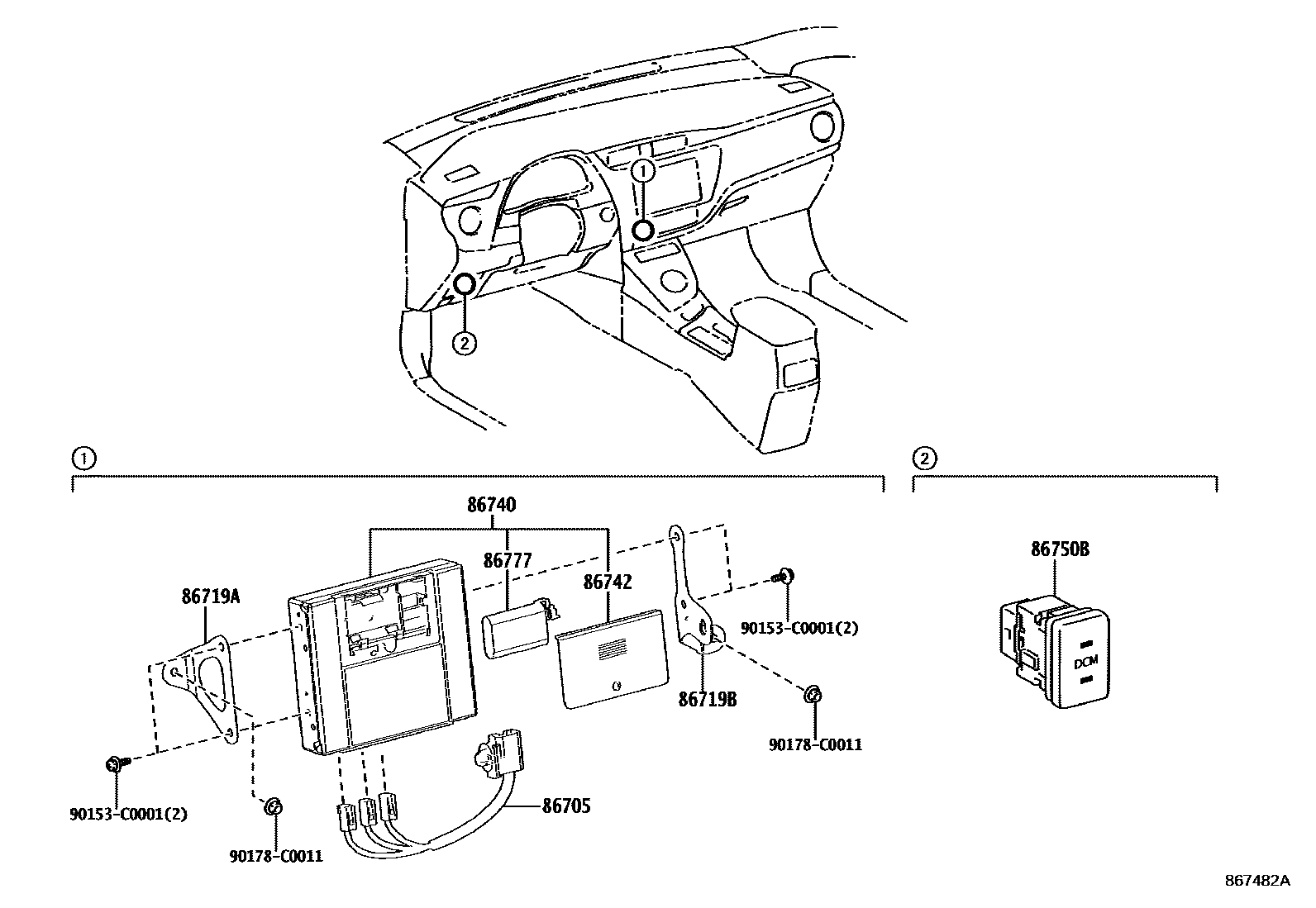

Toyota COROLLA (CHINA)16A — TELEPHONE & MAYDAY
86705CORD SUB-ASSY, TELEPHONE ANTENNA
86719ABRACKET, TELEPHONE NO.1
86719BBRACKET, TELEPHONE NO.2
86740TRANSCEIVER ASSY, TELEPHONE
86742COVER, TRANSCEIVER
86750BINDICATOR ASSY, TELEMATICS
86777BATTERY, MAYDAY
90153C0001
90178C0011
9 parts on this diagram · 1 diagram in section
TELEPHONE & MAYDAY for Toyota COROLLA (CHINA)16A
This section contains 9 genuine Toyota parts for the TELEPHONE & MAYDAY system of the Toyota COROLLA (CHINA)16A. Key components include: CORD SUB-ASSY, TELEPHONE ANTENNA, BRACKET, TELEPHONE NO.1, BRACKET, TELEPHONE NO.2, TRANSCEIVER ASSY, TELEPHONE, COVER, TRANSCEIVER.
