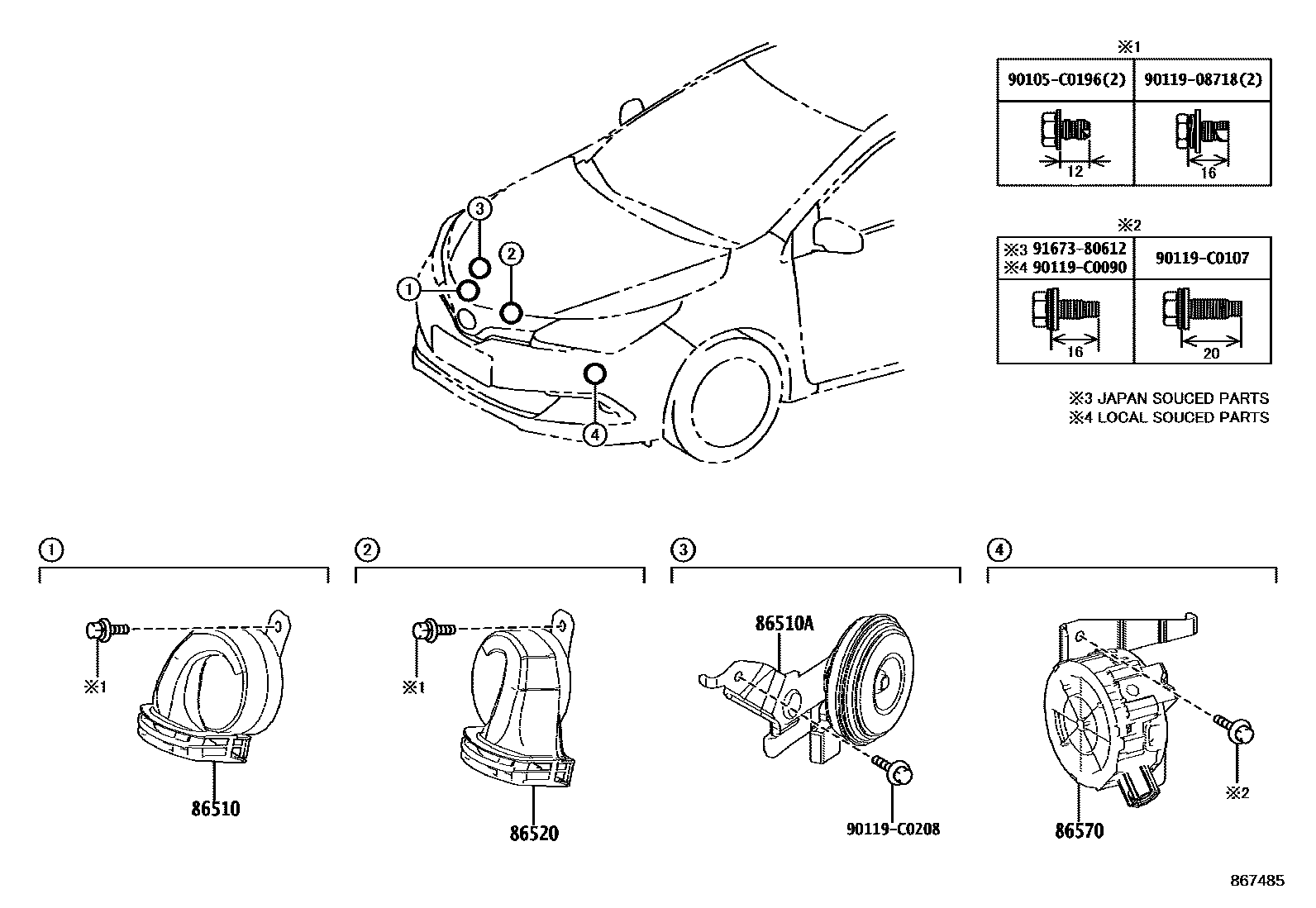

HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-12620iZWE183201903-202207

86510AHORN ASSY, SECURITY

main86560-02200iZWE183201903-202207

86520HORN ASSY, LOW PITCHED

main86520-12740iZWE183201903-202207

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-02020iZWE183202007-202207

main86570-12040iZWE183201903-201911

main86570-12060iZWE183201911-202006

90105C0196

main90105-C0196

9011908718

main90119-08718

90119C0090

main90119-C0090

90119C0107

main90119-C0107

90119C0208

main90119-C0208

9167380612

main91673-80612

10 parts on this diagram · 2 diagrams in section
