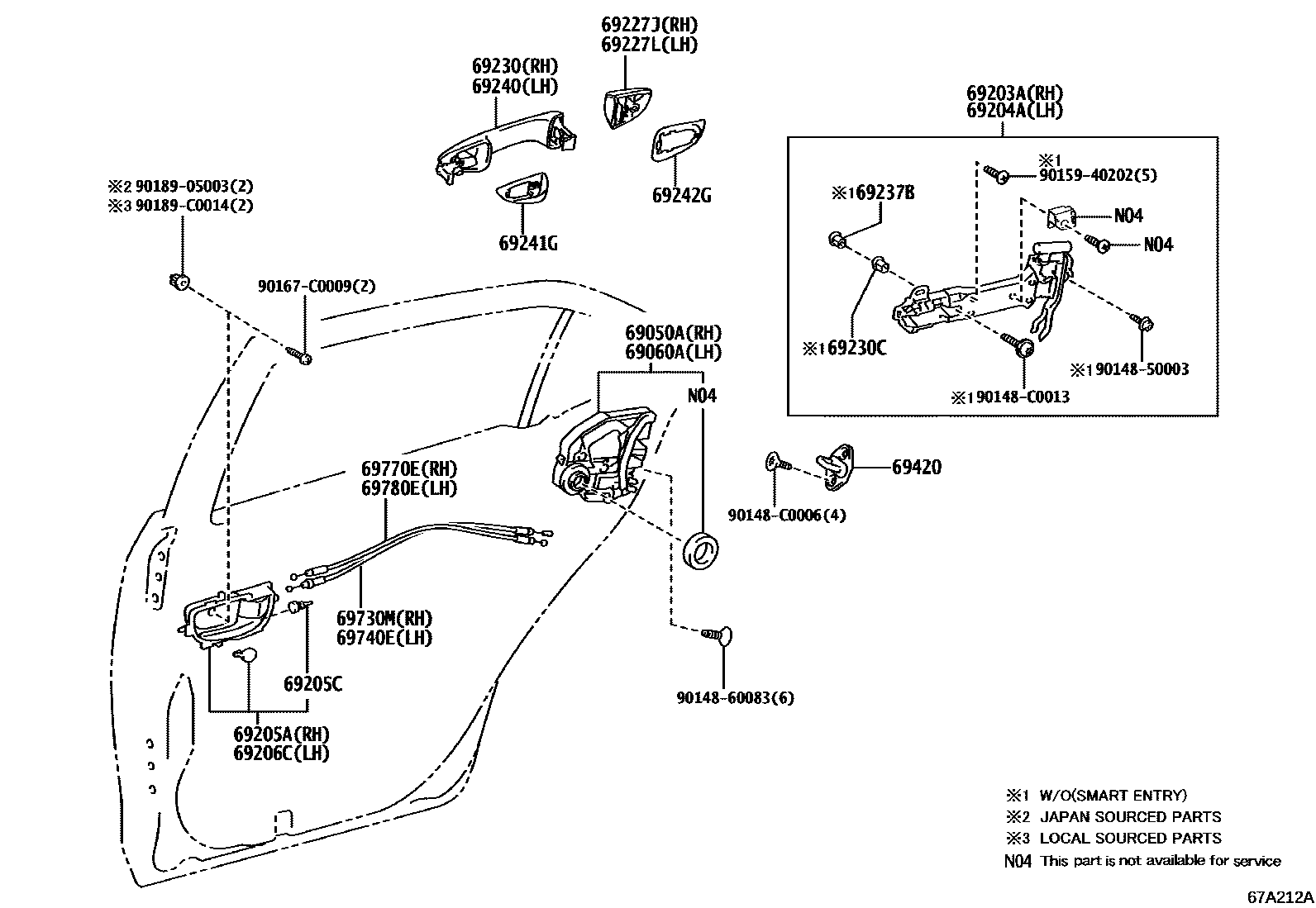

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-06111iZWE183201903-202207

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-06111iZWE183201903-202207

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02490iZWE183..GLI,GLXI201903-202207

main69203-02500iZWE183..PREM201903-202207

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02490iZWE183..GLI,GLXI201903-202207

main69204-02500iZWE183..PREM201903-202207

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02260-C0iZWE183201903-202207

BLACK,TRIM2#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027×2iZWE183201903-202207

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02260-C0iZWE183201903-202207

BLACK,TRIM2#,4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-02130-A0iZWE183..PREM201903-202207

SUPER WHITE 2,040

main69250-02130-A1iZWE183..PREM201903-202110

WHITE PEARL CS.,070

main69250-02130-A2iZWE183..PREM202110-202207

PLATINUM WHITE PEARL MC.,089

main69250-02130-B0iZWE183..PREM201903-202207

SILVER ME.,1F7

main69250-02130-C0iZWE183..PREM201903-202207

BLACK MC.,209

main69250-02130-E0iZWE183..PREM201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69250-02130-E2iZWE183..PREM201903-202004

SILKY BEIGE ME.,4W1

main69250-02130-H1iZWE183..PREM201903-202207

SPIRITED AQUA ME.,791

main69250-02210-A0iZWE183..GLI,GLXI201903-202207

SUPER WHITE 2,040

main69250-02210-A1iZWE183..GLI,GLXI201903-202110

WHITE PEARL CS.,070

main69250-02210-A2iZWE183..GLI,GLXI202110-202207

PLATINUM WHITE PEARL MC.,089

main69250-02210-B0iZWE183..GLI,GLXI201903-202207

SILVER ME.,1F7

main69250-02210-C0iZWE183..GLI,GLXI201903-202207

BLACK MC.,209

main69250-02210-E0iZWE183..GLI,GLXI201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69250-02210-E2iZWE183..GLI,GLXI201903-202004

SILKY BEIGE ME.,4W1

main69250-02210-H1iZWE183..GLI,GLXI201903-202207

SPIRITED AQUA ME.,791

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-02140-A0iZWE183..PREM201903-202207

SUPER WHITE 2,040

main69250-02140-A1iZWE183..PREM201903-202110

WHITE PEARL CS.,070

main69250-02140-A2iZWE183..PREM202110-202207

PLATINUM WHITE PEARL MC.,089

main69250-02140-B0iZWE183..PREM201903-202207

SILVER ME.,1F7

main69250-02140-C0iZWE183..PREM201903-202207

BLACK MC.,209

main69250-02140-E0iZWE183..PREM201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69250-02140-E2iZWE183..PREM201903-202004

SILKY BEIGE ME.,4W1

main69250-02140-H1iZWE183..PREM201903-202207

SPIRITED AQUA ME.,791

main69250-02220-A0iZWE183..GLI,GLXI201903-202207

SUPER WHITE 2,040

main69250-02220-A1iZWE183..GLI,GLXI201903-202110

WHITE PEARL CS.,070

main69250-02220-A2iZWE183..GLI,GLXI202110-202207

PLATINUM WHITE PEARL MC.,089

main69250-02220-B0iZWE183..GLI,GLXI201903-202207

SILVER ME.,1F7

main69250-02220-C0iZWE183..GLI,GLXI201903-202207

BLACK MC.,209

main69250-02220-E0iZWE183..GLI,GLXI201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69250-02220-E2iZWE183..GLI,GLXI201903-202004

SILKY BEIGE ME.,4W1

main69250-02220-H1iZWE183..GLI,GLXI201903-202207

SPIRITED AQUA ME.,791

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-02240-A0iZWE183..PREM201903-202207

SUPER WHITE 2,040

main69210-02240-A1iZWE183..PREM201903-202110

WHITE PEARL CS.,070

main69210-02240-A2iZWE183..PREM202110-202207

PLATINUM WHITE PEARL MC.,089

main69210-02240-B0iZWE183..PREM201903-202207

SILVER ME.,1F7

main69210-02240-C0iZWE183..PREM201903-202207

BLACK MC.,209

main69210-02240-E0iZWE183..PREM201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69210-02240-E2iZWE183..PREM201903-202004

SILKY BEIGE ME.,4W1

main69210-02240-H1iZWE183..PREM201903-202207

SPIRITED AQUA ME.,791

main69210-02250-A0iZWE183..GLI,GLXI201903-202207

SUPER WHITE 2,040

main69210-02250-A1iZWE183..GLI,GLXI201903-202110

WHITE PEARL CS.,070

main69210-02250-A2iZWE183..GLI,GLXI202110-202207

PLATINUM WHITE PEARL MC.,089

main69210-02250-B0iZWE183..GLI,GLXI201903-202207

SILVER ME.,1F7

main69210-02250-C0iZWE183..GLI,GLXI201903-202207

BLACK MC.,209

main69210-02250-E0iZWE183..GLI,GLXI201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69210-02250-E2iZWE183..GLI,GLXI201903-202004

SILKY BEIGE ME.,4W1

main69210-02250-H1iZWE183..GLI,GLXI201903-202207

SPIRITED AQUA ME.,791

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main69239-30010×2iZWE183..GLI,GLXI201903-202207

69237BNUT, REAR DOOR HANDLE

main69237-30010×2iZWE183..GLI,GLXI201903-202207

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-02180-A0iZWE183..PREM201903-202207

SUPER WHITE 2,040

main69220-02180-A1iZWE183..PREM201903-202110

WHITE PEARL CS.,070

main69220-02180-A2iZWE183..PREM202110-202207

PLATINUM WHITE PEARL MC.,089

main69220-02180-B0iZWE183..PREM201903-202207

SILVER ME.,1F7

main69220-02180-C0iZWE183..PREM201903-202207

BLACK MC.,209

main69220-02180-E0iZWE183..PREM201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69220-02180-E2iZWE183..PREM201903-202004

SILKY BEIGE ME.,4W1

main69220-02180-H1iZWE183..PREM201903-202207

SPIRITED AQUA ME.,791

main69220-02190-A0iZWE183..GLI,GLXI201903-202207

SUPER WHITE 2,040

main69220-02190-A1iZWE183..GLI,GLXI201903-202110

WHITE PEARL CS.,070

main69220-02190-A2iZWE183..GLI,GLXI202110-202207

PLATINUM WHITE PEARL MC.,089

main69220-02190-B0iZWE183..GLI,GLXI201903-202207

SILVER ME.,1F7

main69220-02190-C0iZWE183..GLI,GLXI201903-202207

BLACK MC.,209

main69220-02190-E0iZWE183..GLI,GLXI201903-202207

AVANT-GARDE BRONZE ME.,4V8

main69220-02190-E2iZWE183..GLI,GLXI201903-202004

SILKY BEIGE ME.,4W1

main69220-02190-H1iZWE183..GLI,GLXI201903-202207

SPIRITED AQUA ME.,791

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02200iZWE183201903-202207

RH

main69242-02190iZWE183201903-202207

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-02210iZWE183201903-202207

RH

main69242-02200iZWE183201903-202207

LH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020×2iZWE183201903-202207

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-02440iZWE183201903-202207

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-02440iZWE183201903-202207

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-02540iZWE183201903-202207

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-02540iZWE183201903-202207

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90148C0013

main90148-C0013

9015940202

main90159-40202

90167C0009

main90167-C0009

9018905003

main90189-05003

90189C0014

main90189-C0014

28 parts on this diagram · 1 diagram in section
