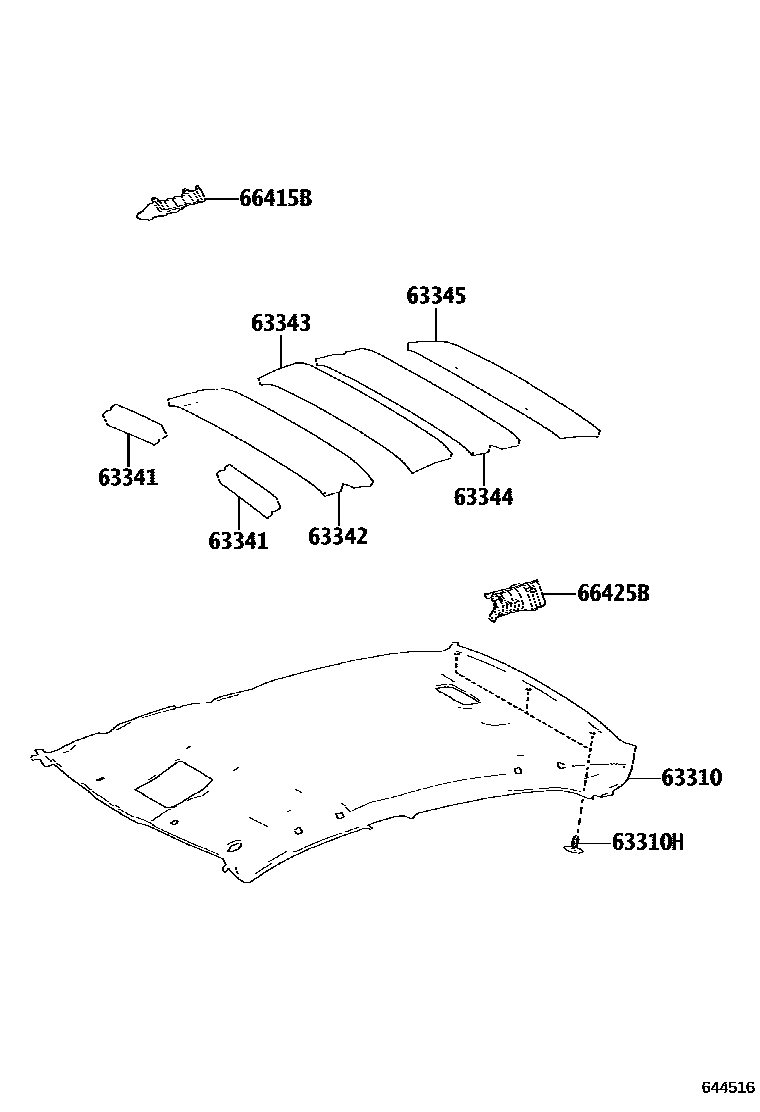

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-02D60-B0supersedes 63310-02K00-B0iZWE183..GLXI,PREM201903-202207

MOON ROOF PACKAGE,LT.GRAY,TRIM2#,4#

63310HCLIP(FOR ROOF HEADLINING)

main90467-C0016-B1×3iZWE183201903-202207

LT.GRAY,TRIM2#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-02450×2iZWE183..GLI201903-202207

63342PAD, ROOF SILENCER, NO.2

main63341-02550iZWE183..GLI201903-202207

63343PAD, ROOF SILENCER, NO.3

main63341-02550iZWE183..GLI201903-202207

63344PAD, ROOF SILENCER, NO.4

main63341-02550iZWE183..GLI201903-202207

63345PAD, ROOF SILENCER, NO.5

main63341-02140iZWE183..GLI201903-202207

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-02140iZWE183201903-202207

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-02150iZWE183201903-202207

9 parts on this diagram · 2 diagrams in section
