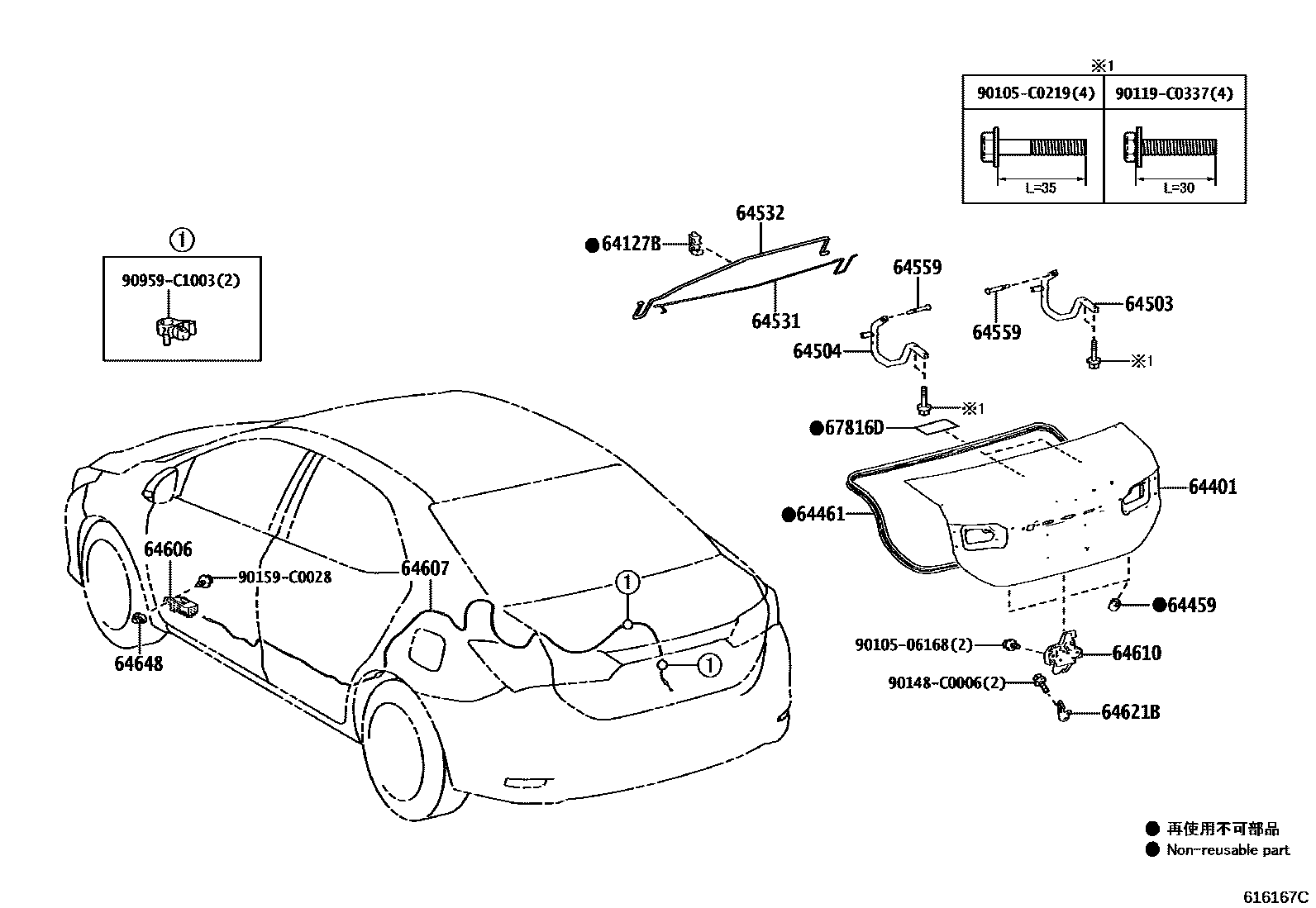

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33071iZWE183201903-202207

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02A50iZWE183201903-202207

main64401-02D51iZWE183..GLXI201903-202207

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2iZWE183201903-202005

main90541-C0009×2iZWE183202005-202207

(L)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02260iZWE183201903-202207

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02201iZWE183201903-202207

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02201iZWE183201903-202207

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02351iZWE183201903-202207

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02351iZWE183201903-202207

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iZWE183201903-202207

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-02140iZWE183201903-202207

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02461iZWE183201903-202207

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02121iZWE183201903-202207

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-0D040iZWE183201903-202207

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32010iZWE183201903-202207

67816DSHEET, BACK DOOR PANEL SILENCER

main67816-02051×2iZWE183201903-202207

9010506168

main90105-06168

90105C0219

main90105-C0219

90119C0337

main90119-C0337

90148C0006

main90148-C0006

90159C0028

main90159-C0028

90959C1003

main90959-C1003

21 parts on this diagram · 1 diagram in section
