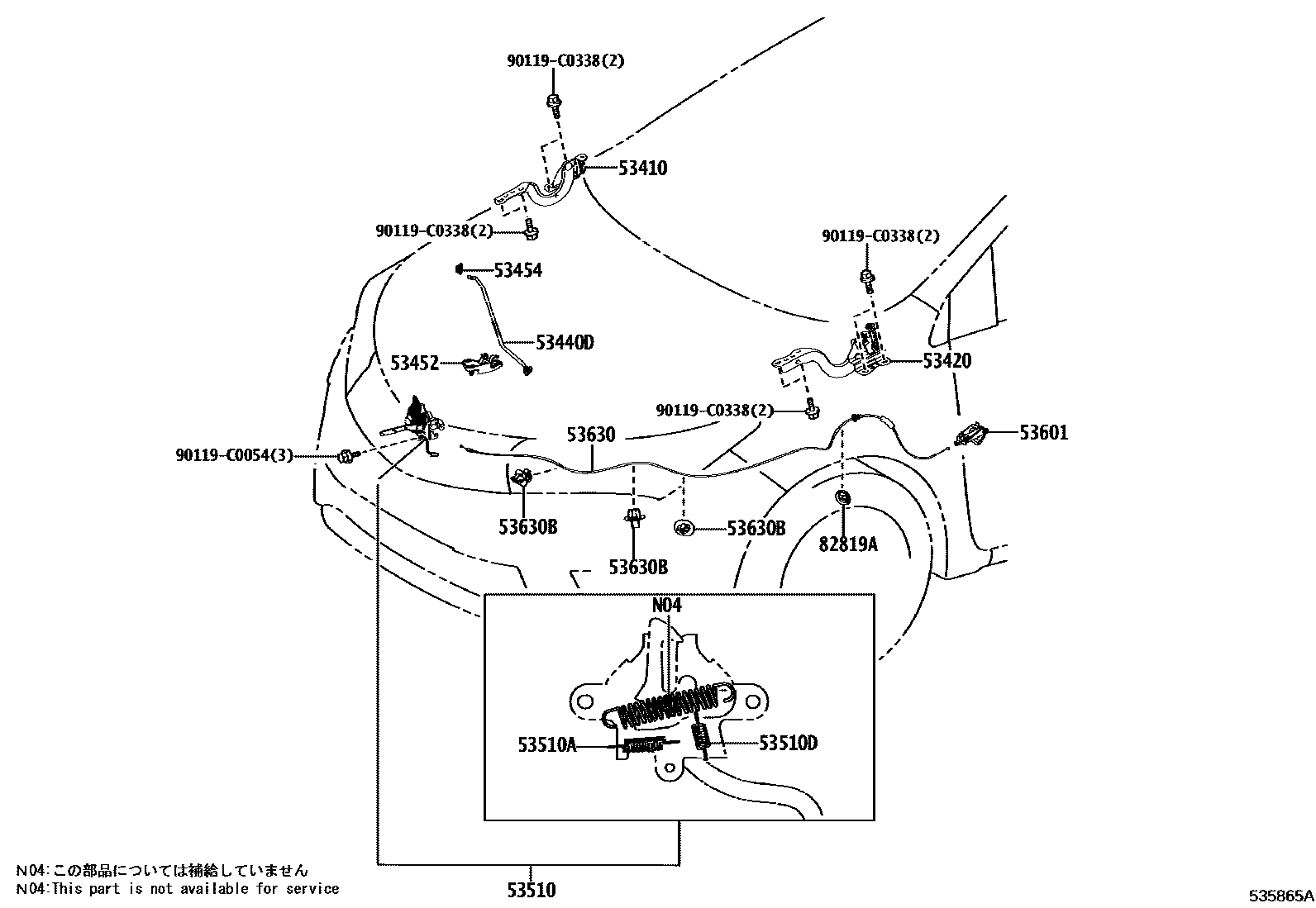

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02450iZWE183201903-202207

53420HINGE ASSY, HOOD, LH

main53420-02450iZWE183201903-202207

53440DSUPPORT ASSY, HOOD

main53440-02240iZWE183201903-202207

53452HOLDER, HOOD STAY

main53452-02200iZWE183201903-202207

53454CLIP, HOOD SUPPORT ROD

main53454-12030iZWE183201903-202207

53510LOCK ASSY, HOOD

main53510-02730iZWE183201903-202207

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZWE183201903-202207

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iZWE183201903-202207

WD=1.2,CW=8.5

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D011-C0iZWE183201903-202207

BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02432iZWE183201903-202207

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0004×3iZWE183201903-202207

82819AGROMMET, WIRE

main82817-02460iZWE183201903-202207

90119C0054

main90119-C0054

90119C0338

main90119-C0338

14 parts on this diagram · 1 diagram in section
