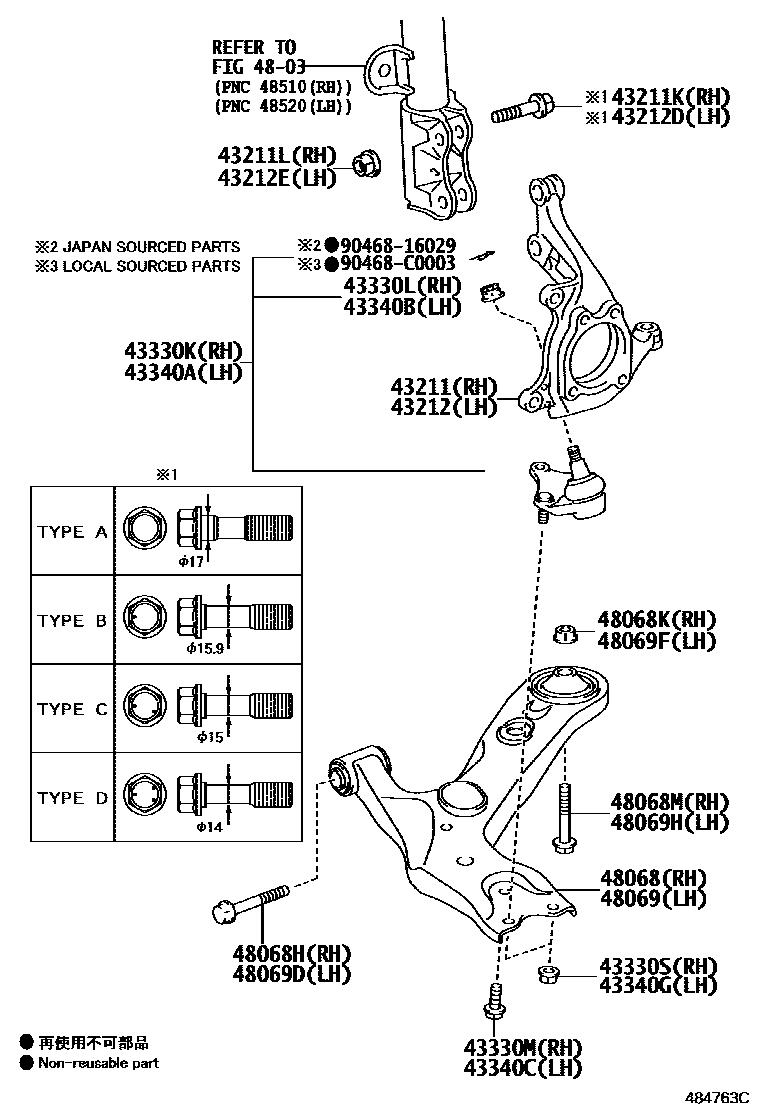

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-02200iZWE183201903-202207

sub43211-12460

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009iZWE183201903-202207

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZWE183201903-202207

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZWE183201903-202207

OD=14,TYPE D:REFER ILLUST.

main90105-C0246×2iZWE183201903-202207

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-C0084×2iZWE183201903-202207

43212KNUCKLE, STEERING, LH

main43212-02200iZWE183201903-202207

sub43212-12410

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009iZWE183201903-202207

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZWE183201903-202207

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZWE183201903-202207

OD=14,TYPE D:REFER ILLUST.

main90105-C0246×2iZWE183201903-202207

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-C0084×2iZWE183201903-202207

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09A60iZWE183201903-202207

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iZWE183201903-202207

(J)

main90171-C0003iZWE183201903-202207

(L)

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-C0059iZWE183201903-202207

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2iZWE183201903-202207

(J)

main90178-C0062×2iZWE183201903-202207

(L)

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09A60iZWE183201903-202207

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iZWE183201903-202207

(J)

main90171-C0003iZWE183201903-202207

(L)

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-C0059iZWE183201903-202207

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2iZWE183201903-202207

(J)

main90178-C0062×2iZWE183201903-202207

(L)

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02180iZWE183201903-202010

main48068-02181iZWE183202011-202207

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-C0066iZWE183201903-202207

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iZWE183201903-202207

(J)

main90178-C0016iZWE183201903-202207

(L)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-C0066iZWE183201903-202207

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02180iZWE183201903-202010

main48069-02181iZWE183202011-202207

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-C0066iZWE183201903-202207

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iZWE183201903-202207

(J)

main90178-C0016iZWE183201903-202207

(L)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-C0066iZWE183201903-202207

9046816029

main90468-16029

90468C0003

main90468-C0003

25 parts on this diagram · 1 diagram in section
