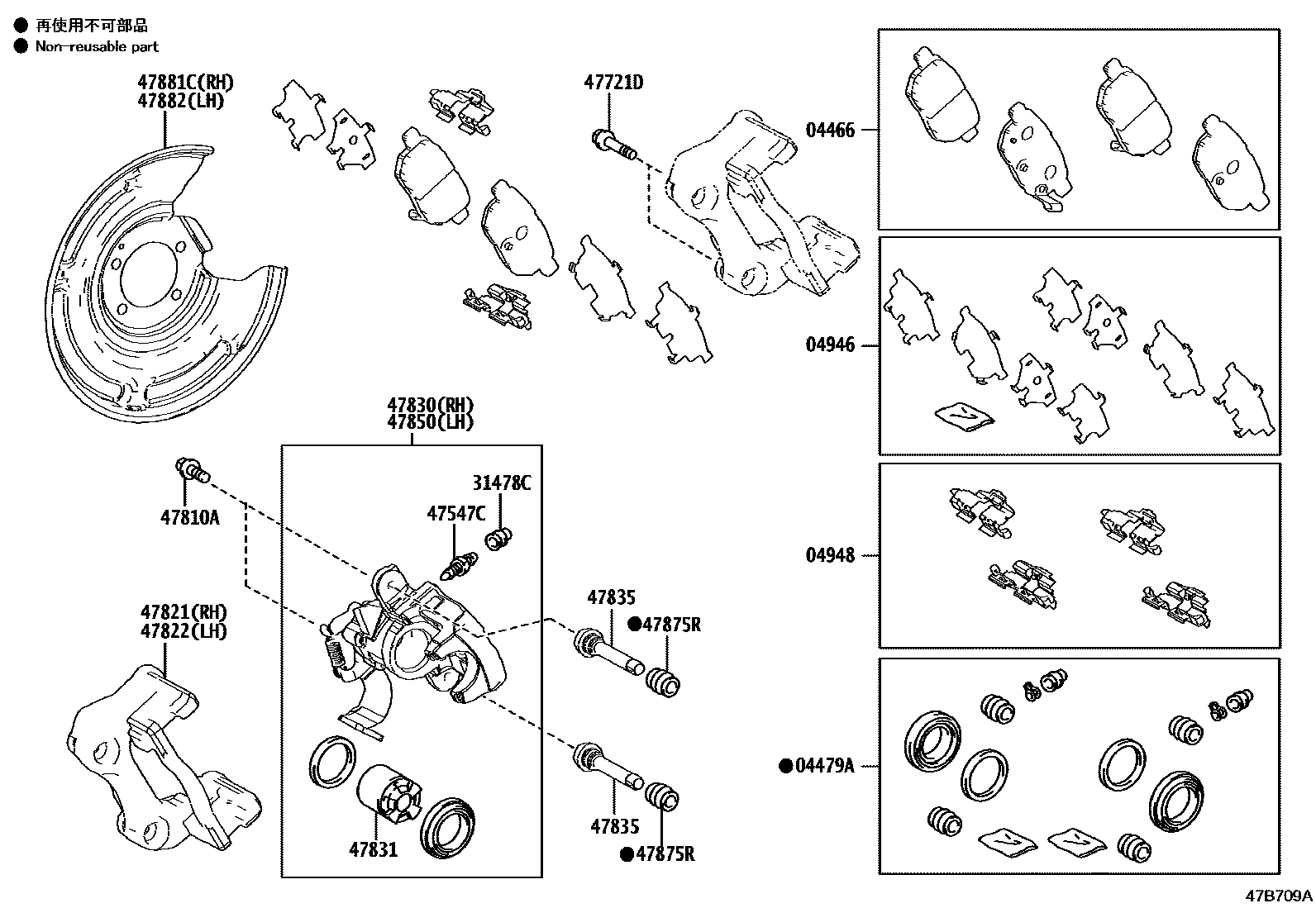

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47101iZWE183201903-202207

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iZWE183201903-202207

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12110iZWE183201903-202207

04948FITTING KIT, DISC BRAKE, REAR

main04948-12050iZWE183201903-202207

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iZWE183201903-202207

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iZWE183201903-202207

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-C0047×4iZWE183201903-202207

*10-1.25PX24-21.5

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iZWE183201903-202207

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12231iZWE183201903-202207

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12231iZWE183201903-202207

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12230iZWE183201903-202207

47831PISTON, REAR DISC BRAKE

main47831-52050×2iZWE183201903-202207

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150×4iZWE183201903-202207

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12230iZWE183201903-202207

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iZWE183201903-202207

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-02250iZWE183201903-202207

47882COVER, DISC BRAKE DUST, REAR LH

main47882-02250iZWE183201903-202207

17 parts on this diagram · 1 diagram in section
