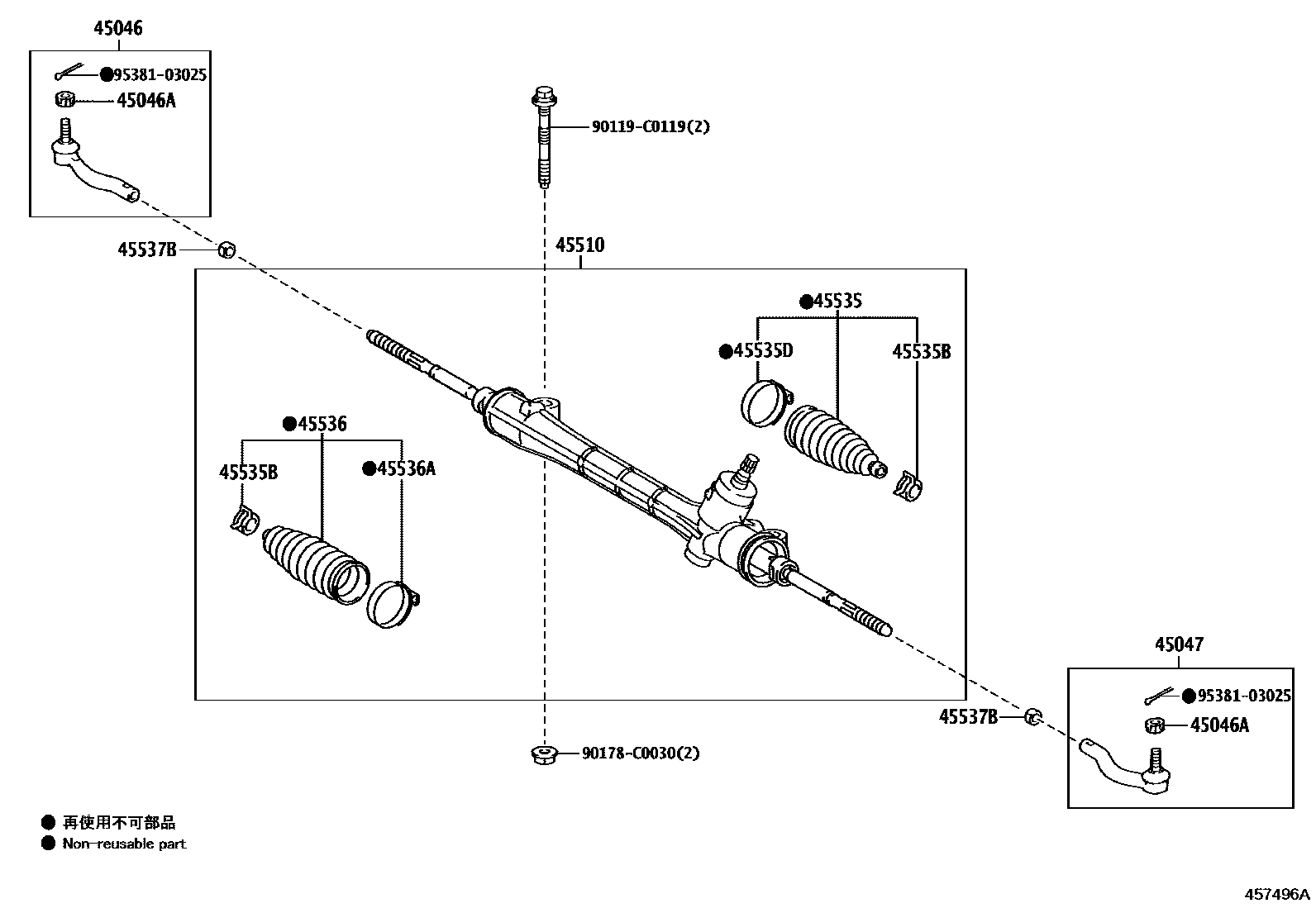

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09591iZWE183201903-202207

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001×2iZWE183201903-202207

45047END SUB-ASSY, TIE ROD, LH

main45047-09291iZWE183201903-202207

45510GEAR ASSY, STEERING

main45510-02690iZWE183201903-202207

45535BOOT, STEERING RACK, NO.1

main45535-09150iZWE183201903-202207

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030×2iZWE183201903-202207

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-02070iZWE183201903-202207

45536BOOT, STEERING RACK, NO.2

main45535-09150iZWE183201903-202207

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iZWE183201903-202207

45537BNUT, RACK END LOCK

main90179-15006×2iZWE183201903-202207

90119C0119

main90119-C0119

90178C0030

main90178-C0030

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
