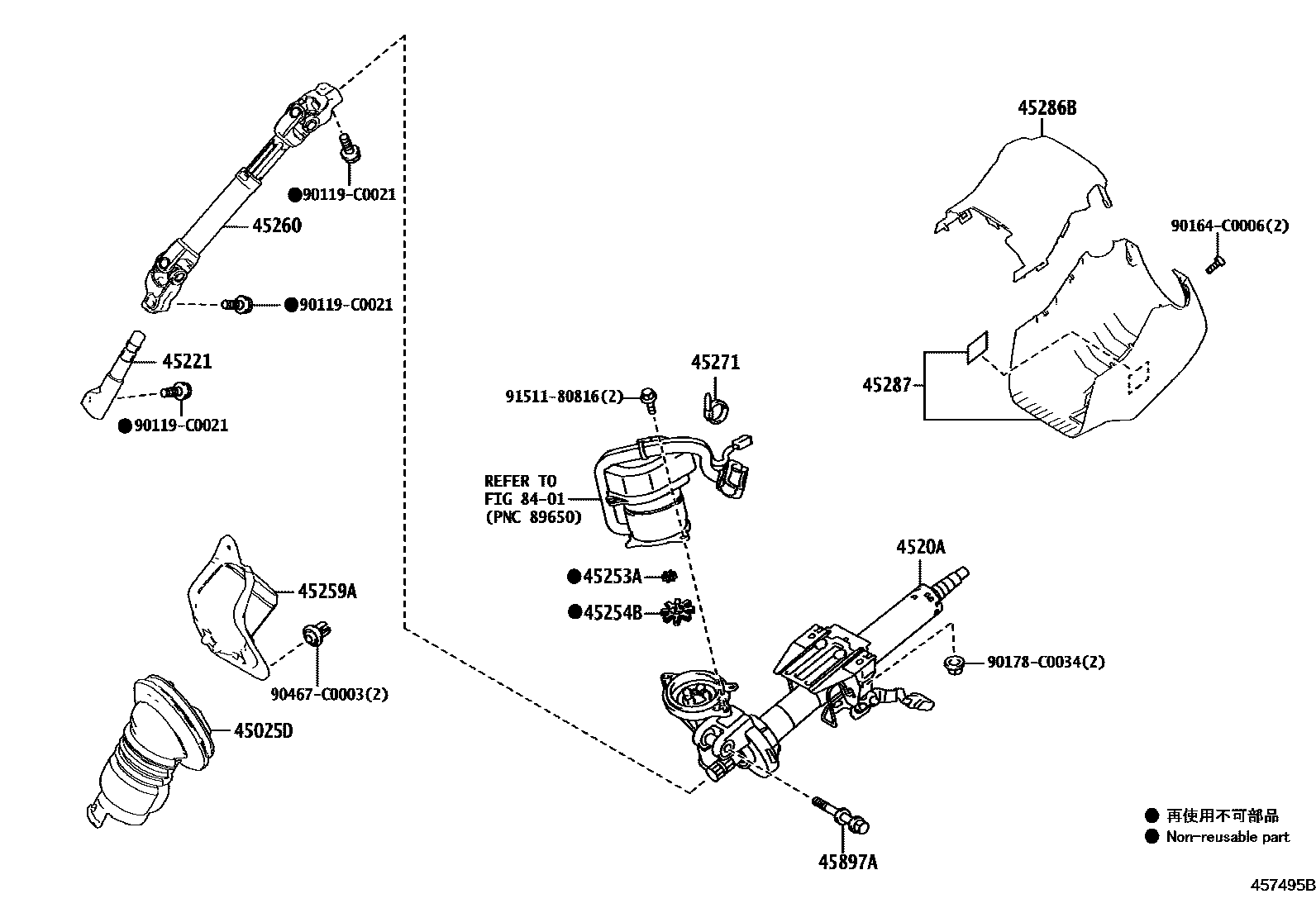

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02100iZWE183201903-202207

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02360iZWE183201903-202207

45221SHAFT, STEERING INTERMEDIATE

main45221-02170iZWE183201903-202207

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iZWE183201903-202207

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZWE183201903-202207

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02280iZWE183201903-202207

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02260iZWE183201903-202207

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iZWE183201903-202207

45286BCOVER, STEERING COLUMN, UPR

main45286-02560-C0iZWE183201903-202207

BLACK,TRIM0#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-02070-C0iZWE183201903-202207

BLACK,TRIM0#,2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iZWE183201903-202207

(J)

main90119-C0427iZWE183201903-202207

(L)

8401

90119C0021

main90119-C0021

90164C0006

main90164-C0006

90178C0034

main90178-C0034

90467C0003

main90467-C0003

9151180816

main91511-80816

17 parts on this diagram · 1 diagram in section
