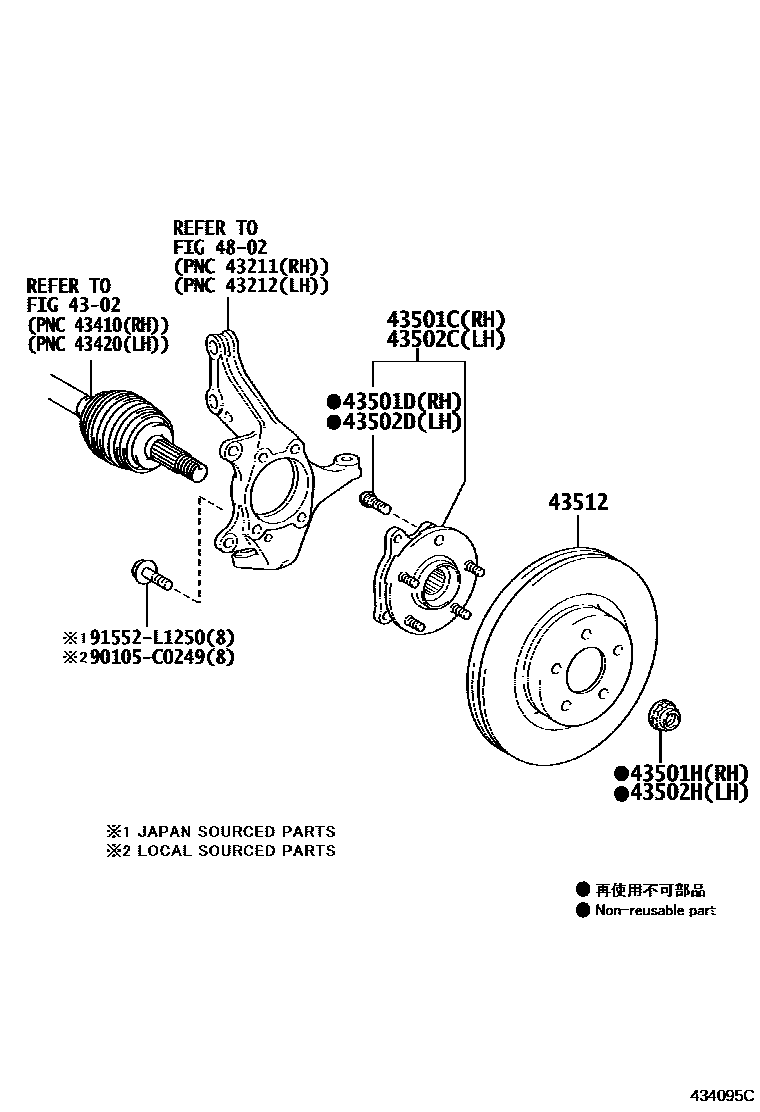

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0R040iZWE183201903-202005

main43550-0R041iZWE183202006-202207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZWE183201903-202207

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZWE183201903-202207

(J)

main90177-C0004iZWE183201903-202207

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0R040iZWE183201903-202005

main43550-0R041iZWE183202006-202207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZWE183201903-202207

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZWE183201903-202207

(J)

main90177-C0004iZWE183201903-202207

(L)

43512DISC, FRONT

main43512-02220iZWE183201903-202207

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

90105C0249

main90105-C0249

91552L1250

main91552-L1250

11 parts on this diagram · 1 diagram in section
