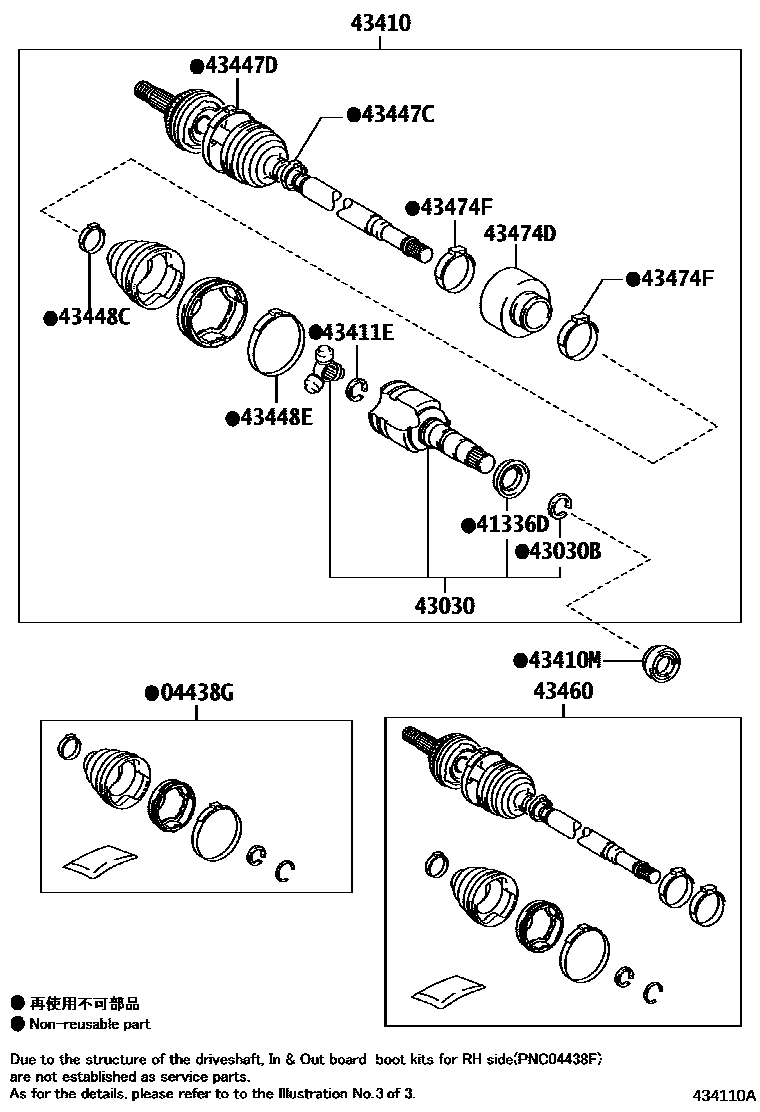

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02541iZWE183201903-202207

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02380iZWE183202012-202207

(L)

main41336-12020iZWE183201903-202012

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-02350iZWE183201903-202207

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90520-C0040iZWE183201909-202207

(L)

main90521-33002iZWE183201903-201909

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02B90iZWE183201903-201904

main43410-02B91iZWE183201904-202207

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-C0037iZWE183201903-202207

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZWE183201903-202207

(J)

main90520-C0029iZWE183201903-202207

(L)

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZWE183201903-202207

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZWE183201903-202207

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZWE183201903-202207

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZWE183201903-202207

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09Y21iZWE183201903-201904

main43460-09Y22iZWE183201904-202207

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02570iZWE183201903-202207

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02310×2iZWE183201903-202207

14 parts on this diagram · 3 diagrams in section
