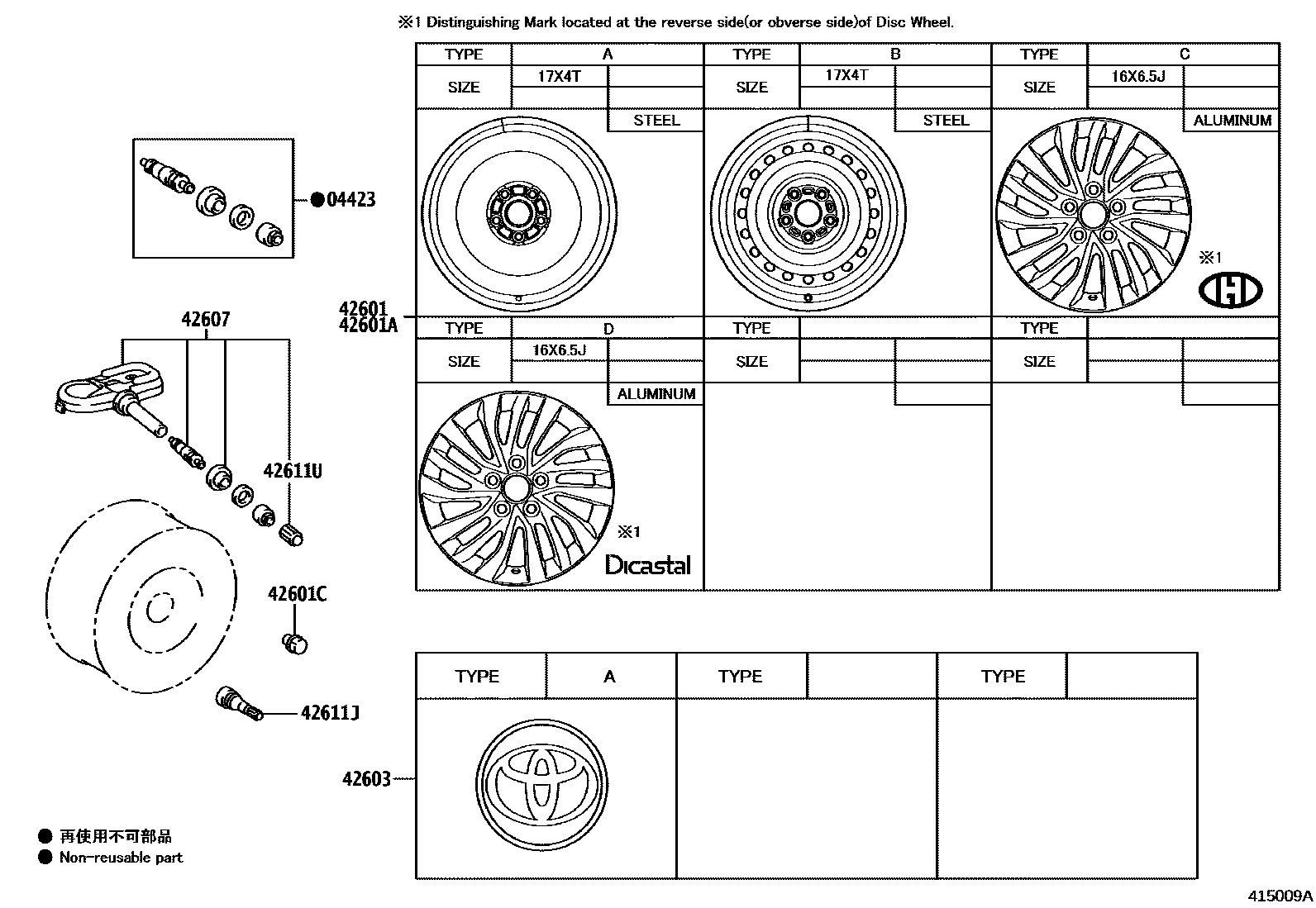

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010×4iZWE183201903-202207

42601WHEEL, DISC

main42611-02L41×4iZWE183201903-202207

16X6.5J, #,TYPE C:REFER ILLUST.

main42611-02L50×4iZWE183201903-202207

16X6.5J, #,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02Q10iZWE183201903-201908

17X4T,TYPE A:REFER ILLUST.

main42611-02Q11iZWE183201909-202207

17X4T,TYPE A:REFER ILLUST.

main42611-02Q20iZWE183201903-201908

17X4T,TYPE B:REFER ILLUST.

main42611-02Q21iZWE183201909-202207

17X4T,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001×20iZWE183201903-202207

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-02320×4iZWE183201903-202207

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02040×4iZWE183201903-201906

main42607-02041×4iZWE183201907-202207

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-C5004iZWE183201903-202207

42611UCAP, TIRE VALVE

main90942-C5001×4iZWE183201903-202207

8 parts on this diagram · 2 diagrams in section
