IGNITION COIL & SPARK PLUG / GLOW PLUG

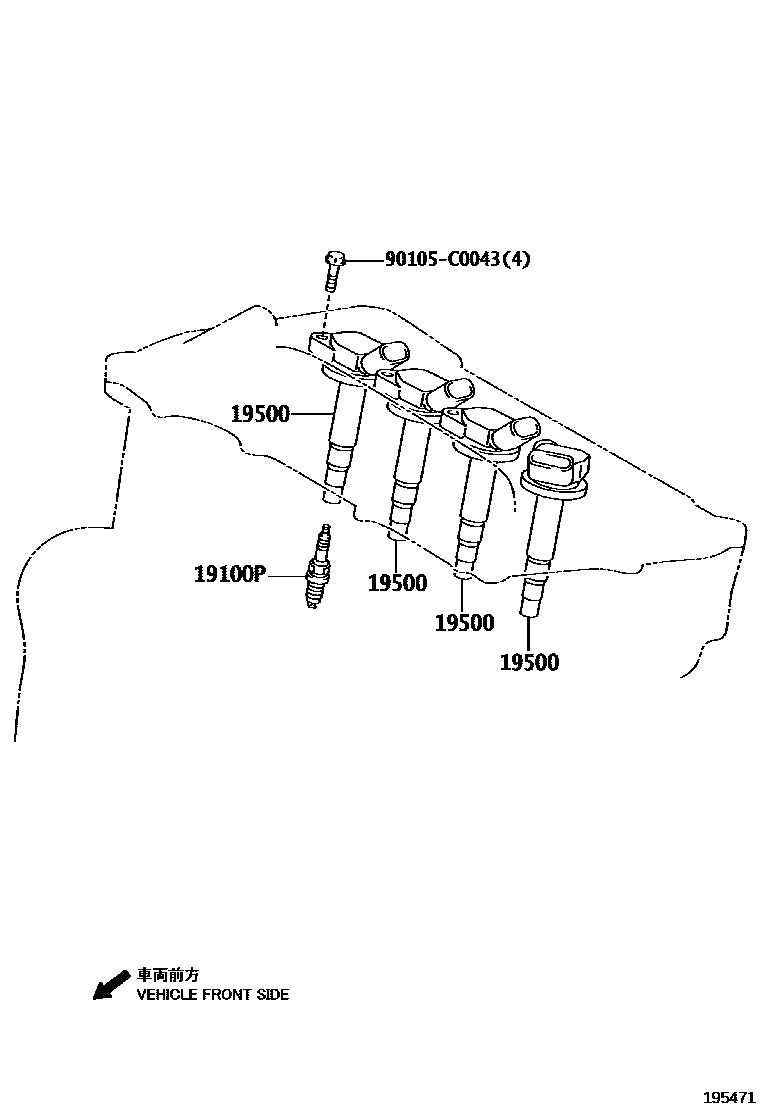

Parts diagram

19100PPLUG, SPARK

main90919-C1010i201903-202012

SC20HR11

main90919-T1014i201903-202207

SC16HR11

19500COIL ASSY, IGNITION

main90919-C2005i201903-202207

90105C0043

main90105-C0043

3 parts on this diagram · 1 diagram in section
