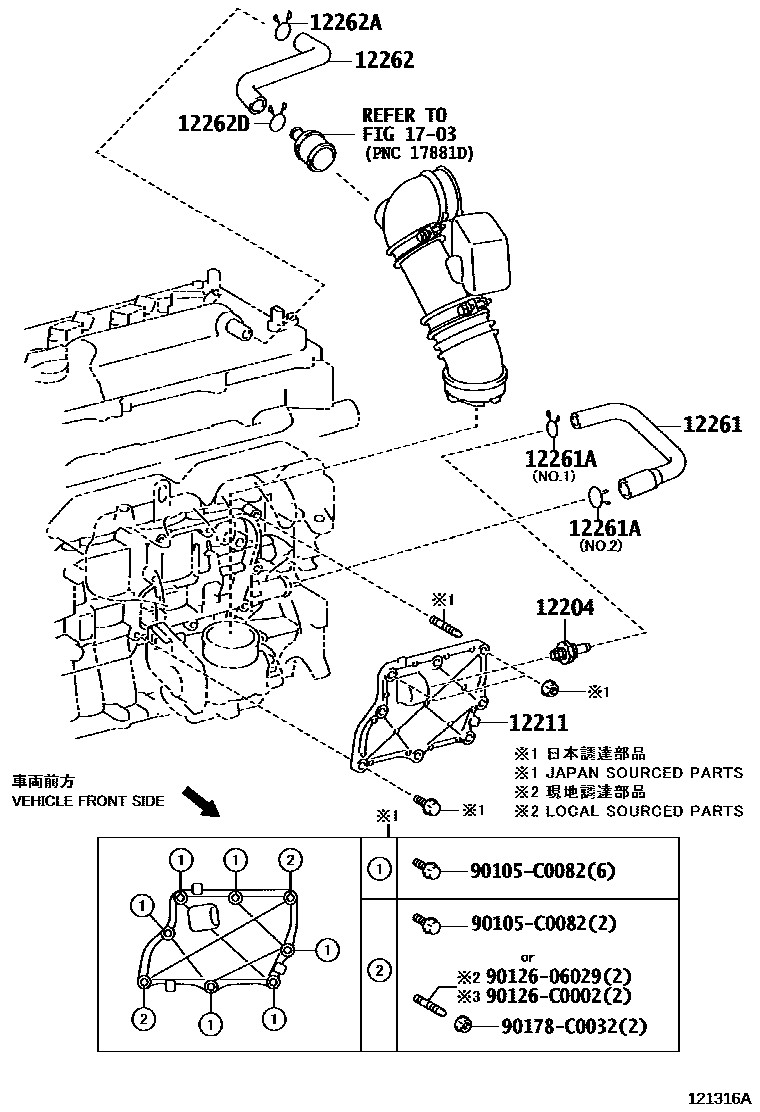

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12211CASE, VENTILATION, NO.1
sub12211-0T050
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262DCLIP(FOR VENTILATION HOSE NO.2)
1703
90105C0082
main90105-C0082
9012606029
main90126-06029
90126C0002
main90126-C0002
90178C0032
main90178-C0032
12 parts on this diagram · 1 diagram in section
