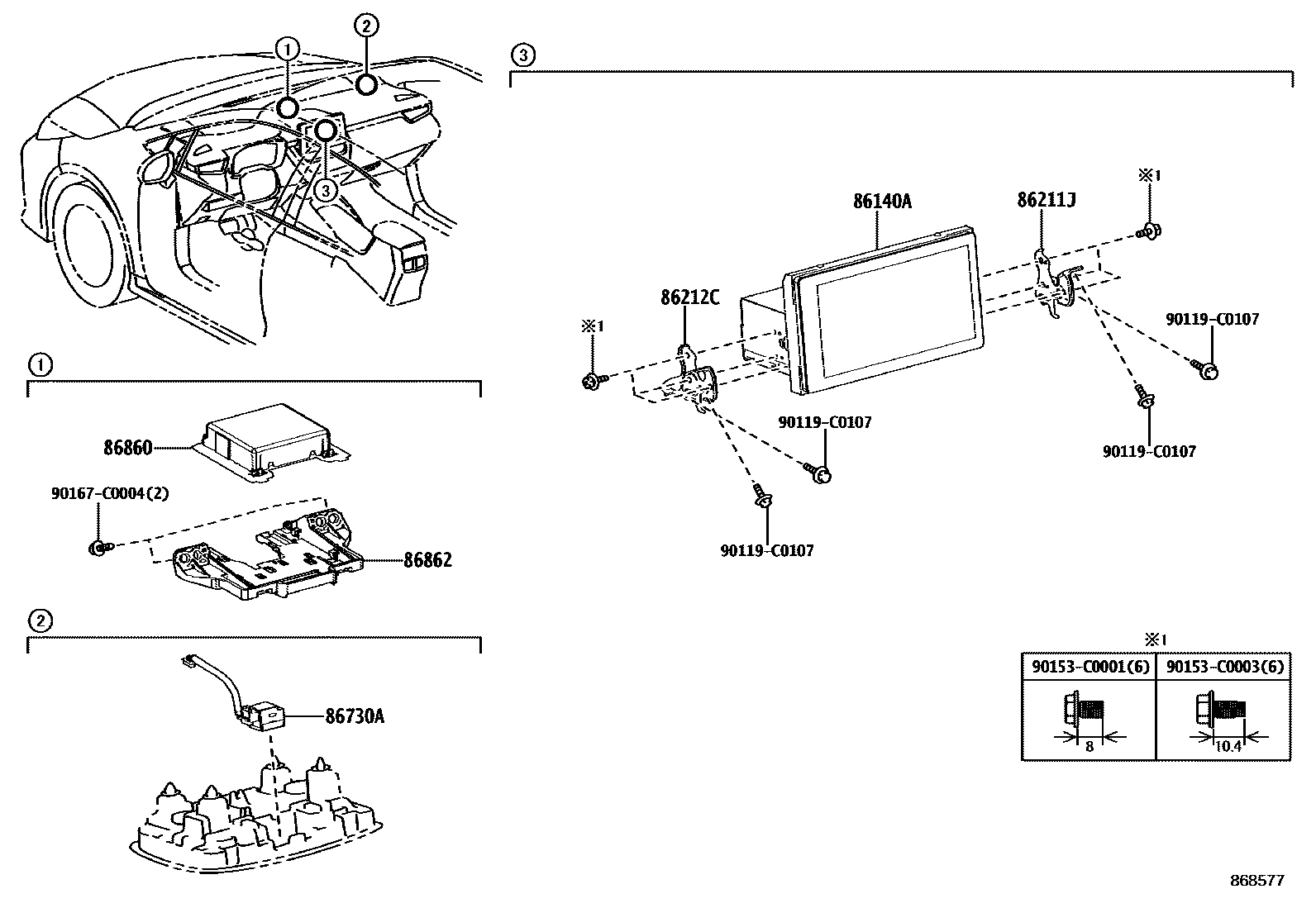

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-02080iMZEA12202104-202106

DENSO TEN

main86100-02081iMZEA12202107-202112

DENSO TEN

main86100-02082iMZEA12202201-202207

DENSO TEN

main86100-02361iMZEA12..E; MZEA12..G202207-202212

DENSO TEN; DENSO TEN,LEATHER PACKAGE

main86100-02362iMZEA12..E; MZEA12..G202301-202304

DENSO TEN; DENSO TEN,LEATHER PACKAGE

main86100-02621iMZEA12..E,N202207-202212

DENSO TEN

main86100-02622iMZEA12..E,N202301-202304

DENSO TEN

main86100-02731iMZEA12..E,N202305-202306

DESAY

main86100-02732iMZEA12,MZEH16..E,N202306

DESAY

main86100-02741iMZEA12..E; MZEA12..G202305-202306

DESAY; DESAY,LEATHER PACKAGE

main86100-02742iMZEA12,MZEH16..E; MZEA12,MZEH16..G202306

DESAY; DESAY,LEATHER PACKAGE

main86140-02G00iMZEA12..N202104-202207

DESAY,LOW PACKAGE

main86140-02L20iMZEA12..N202207-202304

DESAY,LOW PACKAGE

main86140-02N31iMZEA12..N202305-202306

HANGSHENG,LOW PACKAGE

main86140-02N32iMZEA12..N202307

HANGSHENG,LOW PACKAGE

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-02630iMZEA12202104-202304

main86211-02750iMZEA12,MZEH16202305-202312

main86211-02751iMZEA12,MZEH16202401

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-02630iMZEA12202104-202304

main86212-02740iMZEA12,MZEH16202305-202312

main86212-02741iMZEA12,MZEH16202401

86730AMICROPHONE ASSY, TELEPHONE

main86730-02090iMZEA12202104-202207

main86730-0A010×2iMZEA12,MZEH16; MZEA12..N202305

LOW PACKAGE

86860ANTENNA ASSY, NAVIGATION

main86880-02050iMZEA12202104-202304

main86880-02100iMZEA12,MZEH16202305

86862BRACKET, NAVIGATION ANTENNA

main86862-02040iMZEA12202104-202304

main86862-0E030iMZEA12,MZEH16202408

main86862-42010iMZEA12,MZEH16202305-202408

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90167C0004

main90167-C0004

10 parts on this diagram · 2 diagrams in section
