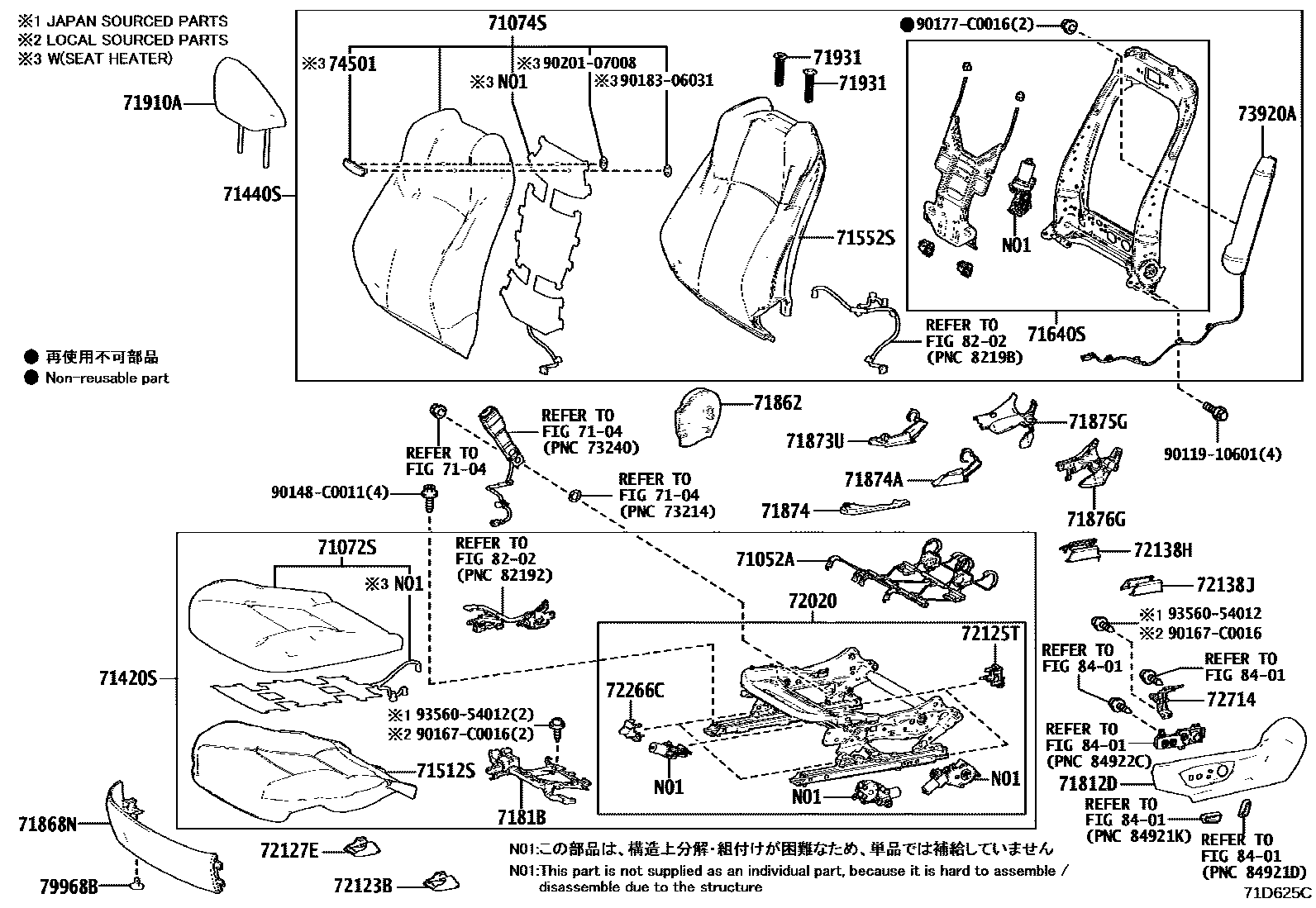

FRONT SEAT & SEAT TRACK

0001 1LH SEAT(POWER) 0002 1LH SEAT(POWER),W(LUMBAR SUPPO0003 1LH SEAT(MANUAL) 0004 1RH SEAT(POWER) 0005 1RH SEAT(MANUAL)

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iMZEA12..E,G202104-202304

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0ZN90-C0iMZEA12..N202104-202211

BLACK,TRIM2#

main71072-0ZN91-C2iMZEA12,MZEH16..N202305

BLACK,TRIM2#

main71072-0ZN91-J1iMZEA12,MZEH16..N202305

DK.NAVY,TRIM8#

main71072-0ZP20-C1iMZEA12..G202104-202304

BLACK,TRIM2#

main71072-0ZP20-E1iMZEA12..G202104-202304

DK.CHESTNUT,TRIM4#

main71072-0ZZ10-C0iMZEA12,MZEH16..G202305

BLACK,TRIM2#

main71072-0ZZ10-J0iMZEA12,MZEH16..G202305

DK.NAVY,TRIM8#

main71072-0ZP10-C1supersedes 71072-0ZP00-C1iMZEA12..E202104-202304

LEATHER PACKAGE,BLACK,TRIM2#

main71072-0ZP10-E1supersedes 71072-0ZP00-E1iMZEA12..E202104-202304

LEATHER PACKAGE,TAUPE,TRIM4#

main71072-0ZZ00-C0supersedes 71072-0ZY80-C0iMZEA12,MZEH16..E202305

LEATHER PACKAGE,BLACK,TRIM2#

main71072-0ZZ00-J0supersedes 71072-0ZY80-J0iMZEA12,MZEH16..E202305

LEATHER PACKAGE,DK.NAVY,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-F2310-C1iMZEA12..N202104-202211

BLACK,TRIM2#

main71074-F2311-C1iMZEA12,MZEH16..N202305

BLACK,TRIM2#

main71074-F2311-J1iMZEA12,MZEH16..N202305

DK.NAVY,TRIM8#

main71074-F2340-C2iMZEA12..G202104-202304

BLACK/TAUPE,TRIM2#

main71074-F2340-E1iMZEA12..G202104-202304

DK.CHESTNUT/TAUPE,TRIM4#

main71074-F2341-C3iMZEA12,MZEH16..G202305

BLACK,TRIM2#

main71074-F2341-J0iMZEA12,MZEH16..G202305

DK.NAVY,TRIM8#

main71074-F2330-C1supersedes 71074-F2320-C2iMZEA12..E202104-202304

LEATHER PACKAGE,BLACK,TRIM2#

main71074-F2330-E1supersedes 71074-F2320-E1iMZEA12..E202104-202304

LEATHER PACKAGE,TAUPE,TRIM4#

main71074-F2331-C2supersedes 71074-F2710-C0iMZEA12,MZEH16..E202305

LEATHER PACKAGE,BLACK,TRIM2#

main71074-F2331-J0supersedes 71074-F2710-J0iMZEA12,MZEH16..E202305

LEATHER PACKAGE,DK.NAVY,TRIM8#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0ZJ80-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main71420-0ZJ81-C3iMZEA12,MZEH16..N202305

BLACK,TRIM2#

main71420-0ZJ81-C4iMZEA12,MZEH16..N202305

BLACK,TRIM8#

main71420-0ZK10-C2iMZEA12..G202104-202304

BLACK,TRIM2#

main71420-0ZK10-C3iMZEA12..G202104-202304

DK.CHESTNUT,TRIM4#

main71420-0ZQ70-C0iMZEA12,MZEH16..G202305

BLACK,TRIM2#

main71420-0ZQ70-C1iMZEA12,MZEH16..G202305

BLACK,TRIM8#

main71420-0ZK00-C2supersedes 71420-0ZJ90-C2iMZEA12..E202104-202304

LEATHER PACKAGE,BLACK,TRIM2#

main71420-0ZK00-C3supersedes 71420-0ZJ90-C3iMZEA12..E202104-202304

LEATHER PACKAGE,TAUPE,TRIM4#

main71420-0ZQ60-C0supersedes 71420-0ZJ91-C4iMZEA12,MZEH16..E202305

LEATHER PACKAGE,BLACK,TRIM2#

main71420-0ZQ60-C1supersedes 71420-0ZJ91-C5iMZEA12,MZEH16..E202305

LEATHER PACKAGE,BLACK,TRIM8#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-02N90-C1iMZEA12..N202104-202304

BLACK,TRIM2#

main71070-02N91-C1iMZEA12,MZEH16..N202305

BLACK,TRIM2#

main71070-02N91-J1iMZEA12,MZEH16..N202305

DK.NAVY,TRIM8#

main71070-02P20-E2iMZEA12..G202104-202304

BLACK/TAUPE,TRIM2#

main71070-02P20-E3iMZEA12..G202104-202304

DK.CHESTNUT/TAUPE,TRIM4#

main71070-02T60-C2iMZEA12,MZEH16..G202305

BLACK,TRIM2#

main71070-02T60-J0iMZEA12,MZEH16..G202305

DK.NAVY,TRIM8#

main71070-02P10-C1supersedes 71070-02P00-E2iMZEA12..E202104-202304

LEATHER PACKAGE,BLACK,TRIM2#

main71070-02P10-E1supersedes 71070-02P00-E3iMZEA12..E202104-202304

LEATHER PACKAGE,TAUPE,TRIM4#

main71070-02T50-C2supersedes 71070-02P01-C2iMZEA12,MZEH16..E202305

LEATHER PACKAGE,BLACK,TRIM2#

main71070-02T50-J0supersedes 71070-02P01-J0iMZEA12,MZEH16..E202305

LEATHER PACKAGE,DK.NAVY,TRIM8#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02D00iMZEA12..N202104-202211

main71512-02D10iMZEA12..E,G202104-202304

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02D00iMZEA12,MZEH16..E,N202305

main71552-02D60supersedes 71552-02D00iMZEA12..E; MZEA12..G202104-202304

LEATHER PACKAGE

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-02C50iMZEA12..G202104-202304

main71640-02D20iMZEA12..N202104-202211

main71640-02D90iMZEA12..E202104-202304

main71640-02E20iMZEA12,MZEH16..E202305

main71640-02F00iMZEA12,MZEH16..G202305

main71640-0R330iMZEA12,MZEH16..N202305

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02A60-C0iMZEA12,MZEH16..E202305

BLACK,TRIM2#,8#

main71812-07100-C0iMZEA12,MZEH16..G202305

BLACK,TRIM2#,8#

main71812-F4110-C0iMZEA12..N202104-202304

BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-07020iMZEA12..E,G202104-202304

main7181B-F4030iMZEA12,MZEH16..N202305

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-F4050-C0iMZEA12..E,G; MZEA12..N202104-202304

BLACK,TRIM2#; BLACK,TRIM2#,4#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-07030-C0iMZEA12,MZEH16..E,G202305

BLACK,TRIM2#,8#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-F4060-C0iMZEA12..G202104-202304

BLACK,TRIM2#,4#

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-0R190-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

main71874-F4040-C0iMZEA12..E,G; MZEA12..N202104-202304

BLACK,TRIM2#; BLACK,TRIM2#,4#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-07080-C0iMZEA12..E,G202104-202304

BLACK

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-F4030-C0iMZEA12..E,G; MZEA12..N202104-202304

BLACK,TRIM2#; BLACK,TRIM2#,4#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-F4080-C0iMZEA12..E,G; MZEA12..N202104-202304

BLACK,TRIM2#; BLACK,TRIM2#,4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-F4070-C0iMZEA12..E,G; MZEA12..N202104-202304

BLACK,TRIM2#; BLACK,TRIM2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-02V30-C6×2iMZEA12,MZEH16..E,G202305

BLACK,TRIM2#

main71910-02V30-E3iMZEA12..E,G202211-202301

TAUPE,TRIM2#,4#

main71910-02V30-J2×2iMZEA12,MZEH16..E,G202305

DK.NAVY,TRIM8#

main71910-02Z20-C0×2iMZEA12..N202104-202211

BLACK,TRIM2#

main71910-02Z21-C0×2iMZEA12..N202211-202304

BLACK,TRIM2#

main71910-02Z21-C2×2iMZEA12,MZEH16..N202305

BLACK,TRIM2#

main71910-02Z21-J2×2iMZEA12,MZEH16..N202305

DK.NAVY,TRIM8#

main71910-02Z30-C0×2iMZEA12..E202104-202211

BLACK,TRIM20

main71910-02Z30-E0×2iMZEA12..E; MZEA12..G202301-202304

TAUPE,TRIM2#,4#; TAUPE,TRIM20,4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-C0×2iMZEA12..N202104-202211

W(LOCK),BLACK,TRIM2#

main71930-06070-E6×2iMZEA12..E; MZEA12..G202104-202304

W(LOCK),TAUPE,TRIM2#,4#; W(LOCK),TAUPE,TRIM20,4#

main71931-06060-C0×2iMZEA12,MZEH16202305

W/O(LOCK),BLACK,TRIM2#,8#

main71931-06060-E6×2iMZEA12..E; MZEA12..G202104-202304

W/O(LOCK),TAUPE,TRIM2#,4#; W/O(LOCK),TAUPE,TRIM20,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02A80iMZEA12,MZEH16..E,G202305

main72020-07052iMZEA12..N202104-202211

main72020-07060iMZEA12..E,G202104-202304

main72020-0R220iMZEA12,MZEH16..N202305

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-F4030×2iMZEA12202104-202304

72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH

main72125-F4010×2iMZEA12..N202104-202211

main72125-F4020×2iMZEA12..E,G202104-202304

72127ECOVER, SEAT TRACK BRACKET, INNER FRONT

main72123-F4030×2iMZEA12202104-202304

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72158-07040iMZEA12,MZEH16202305

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72137-F4020iMZEA12202104-202304

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72265-07020×2iMZEA12..E,G202104-202304

main72265-F4010×2iMZEA12,MZEH16..N202305

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-07010iMZEA12..E,G202104-202304

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02370iMZEA12..N202104-202211

74501EMBLEM SUB-ASSY, SEAT

main75311-02290×2iMZEA12..E; MZEA12..G202104-202304

LEATHER PACKAGE

main75311-02291×2iMZEA12,MZEH16..E; MZEA12,MZEH16..G202305

LEATHER PACKAGE

79968BCLIP

main90467-07215iMZEA12,MZEH16..E; MZEA12,MZEH16..G202305

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910601

main90119-10601

90148C0011

main90148-C0011

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9018306031

main90183-06031

9020107008

main90201-07008

9356054012

main93560-54012

41 parts on this diagram · 5 diagrams in section
