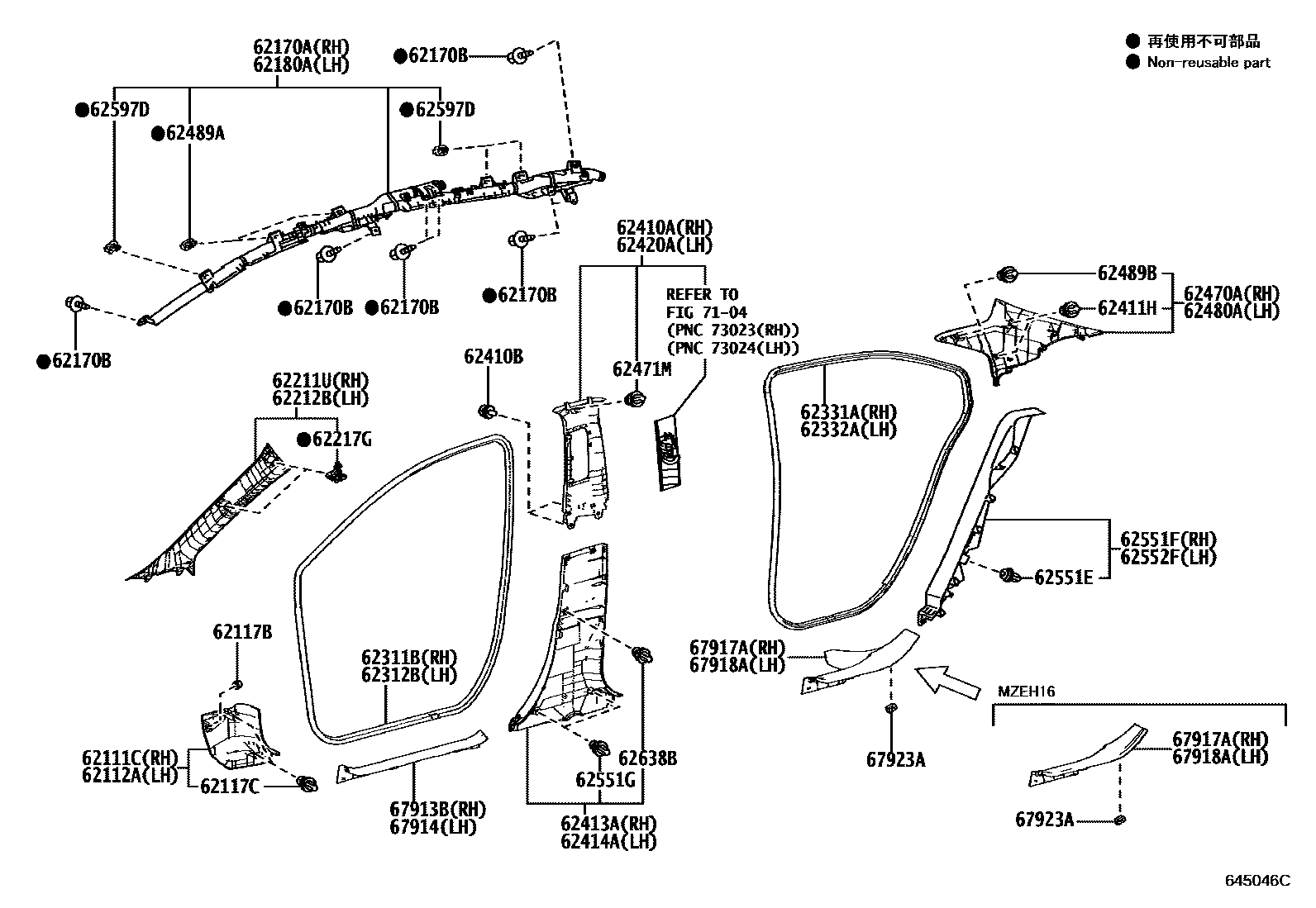

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-02470-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main62111-02470-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

main62111-02470-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-02470-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main62112-02470-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main62112-02470-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iMZEA12202104-202304

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0035iMZEA12202104-202304

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02470iMZEA12202104-202304

62170BBOLT, W/WASHER

main90119-C0107iMZEA12202104-202304

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02480iMZEA12202104-202304

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-02510-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#

main62210-02510-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#,4#

main62210-02510-B0iMZEA12,MZEH16202305

LT.GRAY,TRIM2#,8#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-02510-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#,4#

main62220-02510-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#

main62220-02510-B0iMZEA12,MZEH16202305

LT.GRAY,TRIM2#,8#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iMZEA12202104-202304

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02400iMZEA12..N202207-202304

main62311-02410iMZEA12,MZEH16..E,G202104-202304

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02410iMZEA12..N202207-202304

main62312-02420iMZEA12..N202104-202304

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02450iMZEA12202104-202304

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02450iMZEA12202104-202304

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-02390-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main62410-02390-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main62410-02390-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

62410BCLIP

main90467-C0046iMZEA12202104-202304

62411HCLIP

main90467-C0036iMZEA12202104-202304

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02430-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main62413-02430-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main62413-02430-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02430-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

main62414-02430-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main62414-02430-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-02390-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main62420-02390-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main62420-02390-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02770-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#

main62470-02770-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#,4#

main62470-02770-B0iMZEA12,MZEH16202305

LT.GRAY,TRIM2#,8#

62471MCLIP

main90467-C0035iMZEA12202104-202304

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02770-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#

main62480-02770-A0iMZEA12..N202104-202304

FROMAGE,TRIM2#,4#

main62480-02770-B0iMZEA12,MZEH16202305

LT.GRAY,TRIM2#,8#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iMZEA12202104-202304

62489BCLIP, ROOF SIDE INNER GARNISH

main90467-C0034iMZEA12202104-202304

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62217-13010iMZEA12202104-202304

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02810-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main62551-02810-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main62551-02810-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

62551GCLIP

main90467-A0033iMZEA12,MZEH16202104-202411

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02A10-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main62552-02A10-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main62552-02A10-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

62597DCLIP

main90467-18017iMZEA12,MZEH16202104-202304

62638BCLIP

main90467-C0036iMZEA12202104-202304

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-02450-C0iMZEA12..N202207-202304

BLACK,TRIM2#

main67913-02450-C0iMZEA12,MZEH16..N202305

BLACK,TRIM2#,8#

main67913-02470-C0iMZEA12..N202104-202207

BLACK,TRIM2#

main67913-02470-C0iMZEA12,MZEH16..E,G202305

BLACK,TRIM2#,8#

main67913-02470-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02450-C0iMZEA12,MZEH16..N202305

BLACK,TRIM2#,8#

main67914-02450-C0iMZEA12..N202207-202304

BLACK,TRIM2#

main67914-02470-C0iMZEA12,MZEH16..E,G202305

BLACK,TRIM2#,8#

main67914-02470-C0iMZEA12..N202104-202207

BLACK,TRIM2#

main67914-02470-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02600-C0iMZEH16202309

BLACK,TRIM2#,8#

main67917-02620-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main67917-02620-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

main67917-02620-C0iMZEA12202305

BLACK,TRIM2#,8#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02620-C0iMZEH16202309

BLACK,TRIM2#,8#

main67918-02640-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main67918-02640-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main67918-02640-C0iMZEA12202305

BLACK,TRIM2#,8#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090iMZEA12202104-202304

7104

37 parts on this diagram · 1 diagram in section
