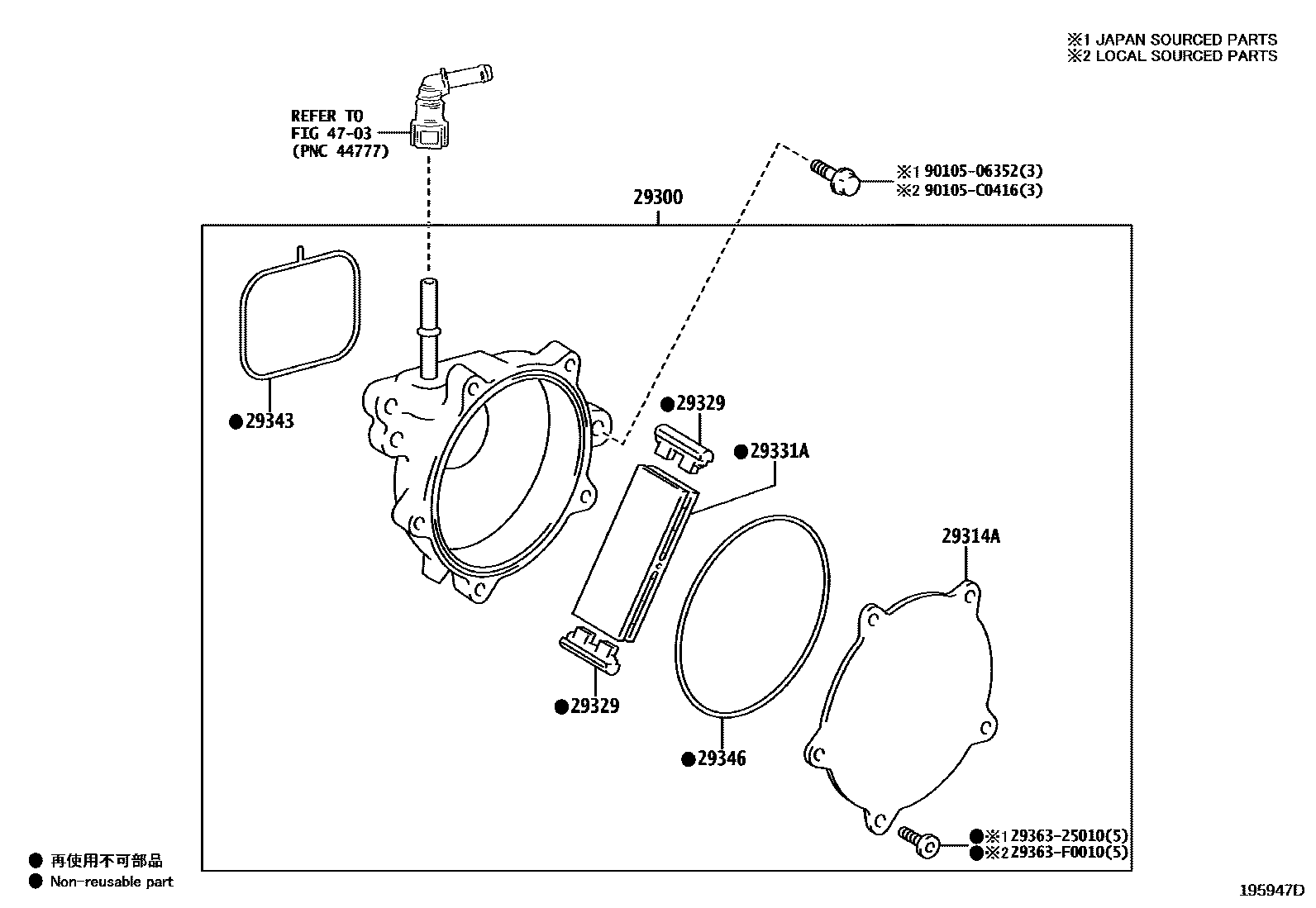

VACUUM PUMP

0001 1TAIHO 0002 1BOSCH

29300PUMP ASSY, VACUUM

main29300-24011iM20..MZEA12202305

*632,TAIHO

main29300-F2041iM20..MZEA12202104-202304

BOSCH

29314ACOVER, END

main29314-25010iM20..MZEA12202305

*632,TAIHO,(J),*633,TAIHO

main29314-F0010iM20..MZEA12202305

(L),*633,TAIHO

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20..MZEA12202104-202304

*632,TAIHO

main29329-25011×2iM20..MZEA12202202-202304

*633,TAIHO

main29329-F0011×2iM20..MZEA12202305

(L),*633,TAIHO

29331AVANE, VACUUM PUMP

main29331-24010iM20..MZEA12202104-202304

*632,TAIHO

main29331-37010iM20..MZEA12202202-202304

*633,TAIHO

main29331-F0010iM20..MZEA12202305

*633,TAIHO

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20..MZEA12202104-202304

*632,TAIHO

main29343-F0010iM20..MZEA12202305

(L),*633,TAIHO

main29343-F2030iM20..MZEA12202305

BOSCH

29346RING, O VACUUM PUMP COVER

main29346-25010iM20..MZEA12202104-202304

*632,TAIHO

main29346-F0010iM20..MZEA12202305

(L),*633,TAIHO

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

9010506352

main90105-06352

90105C0416

main90105-C0416

11 parts on this diagram · 2 diagrams in section
