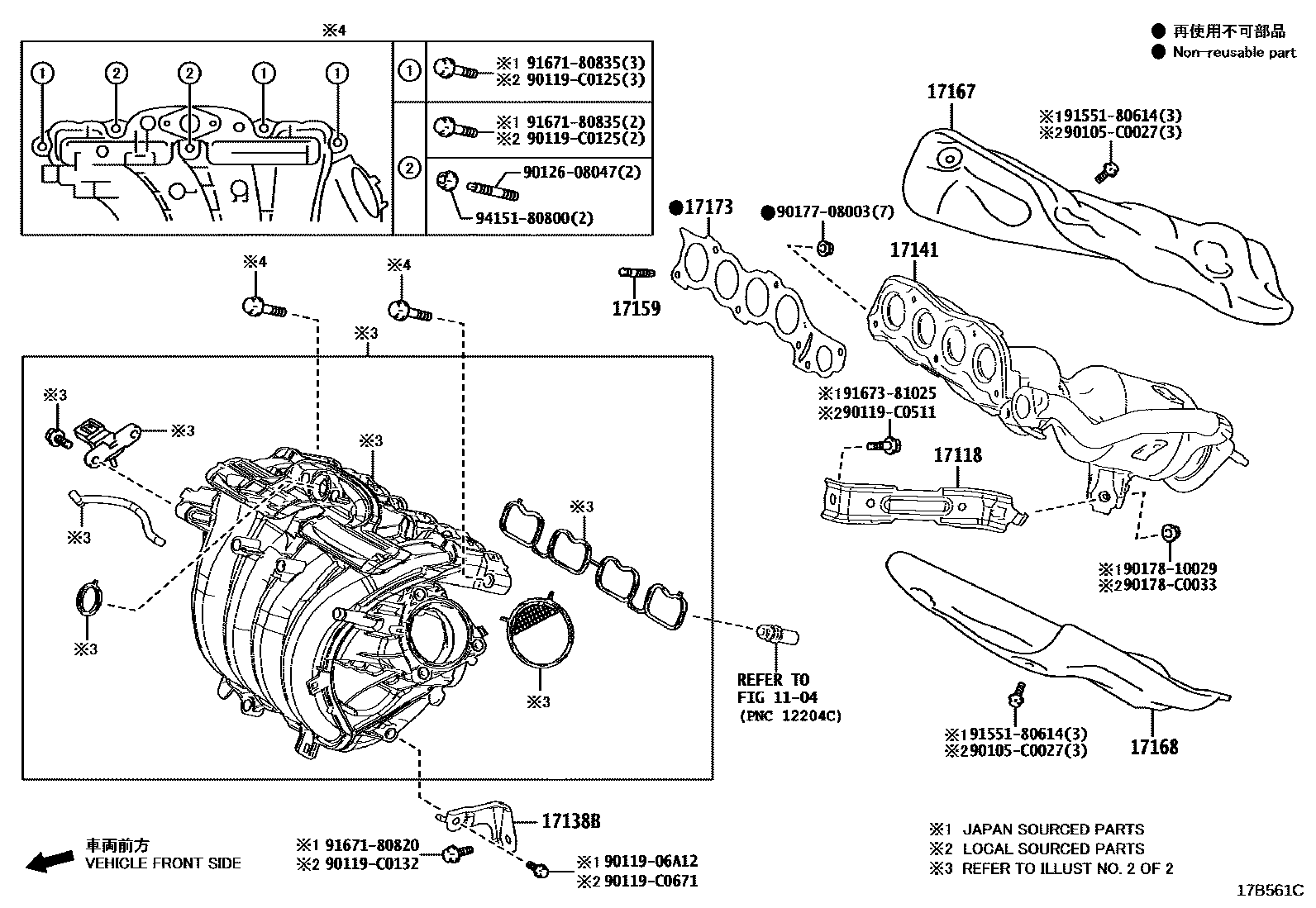

MANIFOLD

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17118STAY, MANIFOLD

main17118-24010iM20..MZEA12202104-202304

17138BSTAY, INTAKE MANIFOLD

main17138-24010iM20..MZEA12202104-202304

*632

main17138-24020iM20..MZEH16202309

(J)

main17138-F2040iM20..MZEA12202104-202304

*633

main17138-F2100iM20..MZEH16202309

(L)

main17138-F2120iM20..MZEA12202410

*633

17141MANIFOLD, EXHAUST

main17141-F2080iM20..MZEA12202104-202304

main17141-F2180iM20..MZEH16202309

main17141-F2320iM20..MZEA12202305

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×7iM20..MZEA12202305

*632

main90126-C0010×7iM20..MZEA12,MZEH16202305

*633

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24030iM20..MZEA12202104-202304

(J)

main17167-F2040iM20..MZEA12202104-202304

(L)

main17167-F2100iM20..MZEH16202309

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-F2040iM20..MZEA12202104-202304

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010iM20..MZEA12,MZEH16202305

(J)

main17173-F2030iM20..MZEA12202104-202304

(L)

90105C0027

main90105-C0027

9011906A12

main90119-06A12

90119C0125

main90119-C0125

90119C0132

main90119-C0132

90119C0511

main90119-C0511

90119C0671

main90119-C0671

9012608047

main90126-08047

9017708003

main90177-08003

9017810029

main90178-10029

90178C0033

main90178-C0033

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

23 parts on this diagram · 3 diagrams in section
