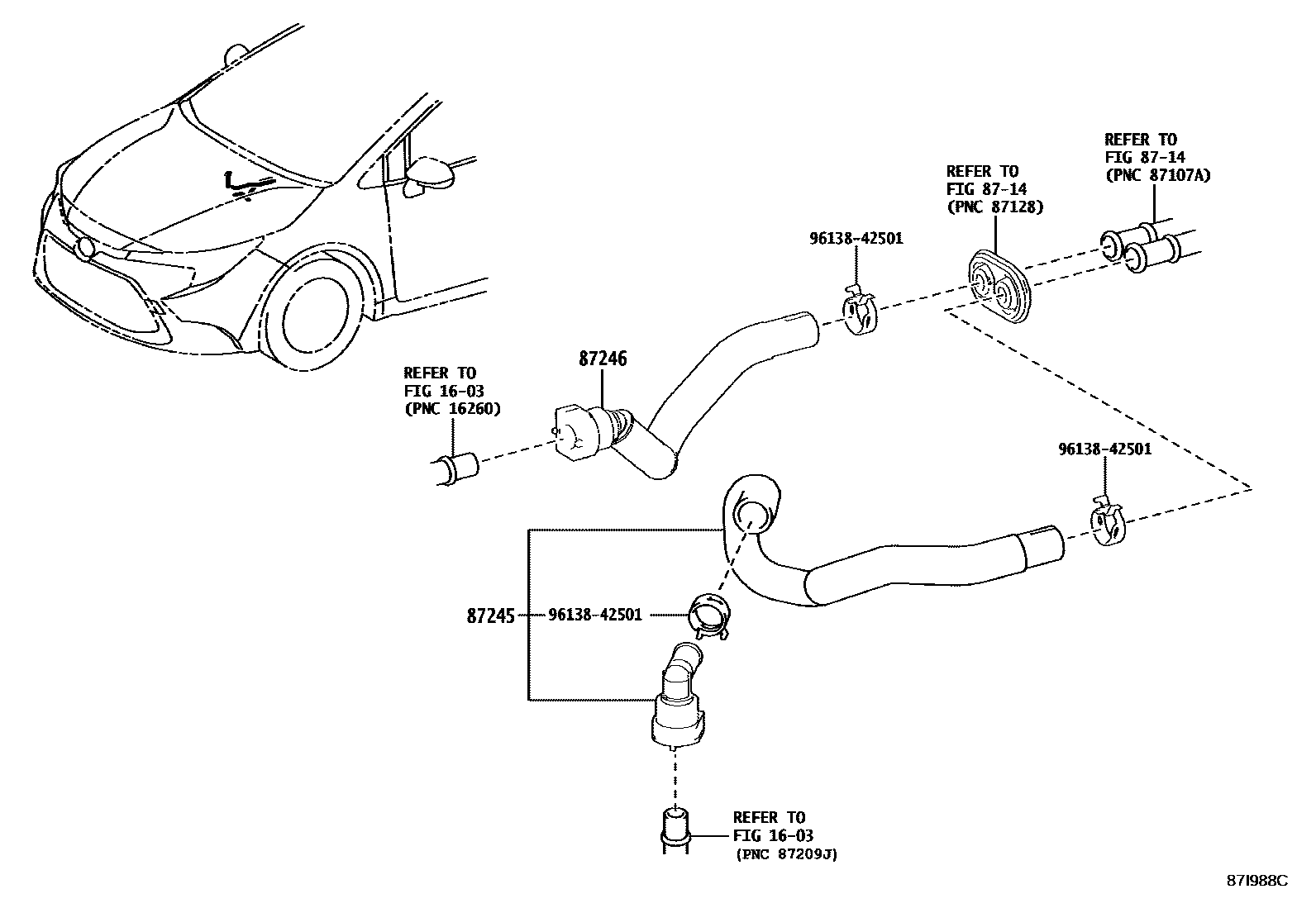

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-02250iMZEA17202304

main87209-02710iZWE219202304

main87209-12770iMZEA11..CVT202202-202303

(J)

main87245-02U30iNRE210..E201906

main87245-02U50iZWE211201906-202303

87246HOSE, HEATER WATER, OUTLET

main87209-02550iNRE210..G,N201906-202303

main87209-02620iMZEA11..CVT202202-202303

(L)

main87209-02730iZWE219202304

main87209-12780iMZEA11..CVT202202-202303

(J)

main87245-02U60iZWE211201906-202303

9613842501

main96138-42501

5 parts on this diagram · 4 diagrams in section
