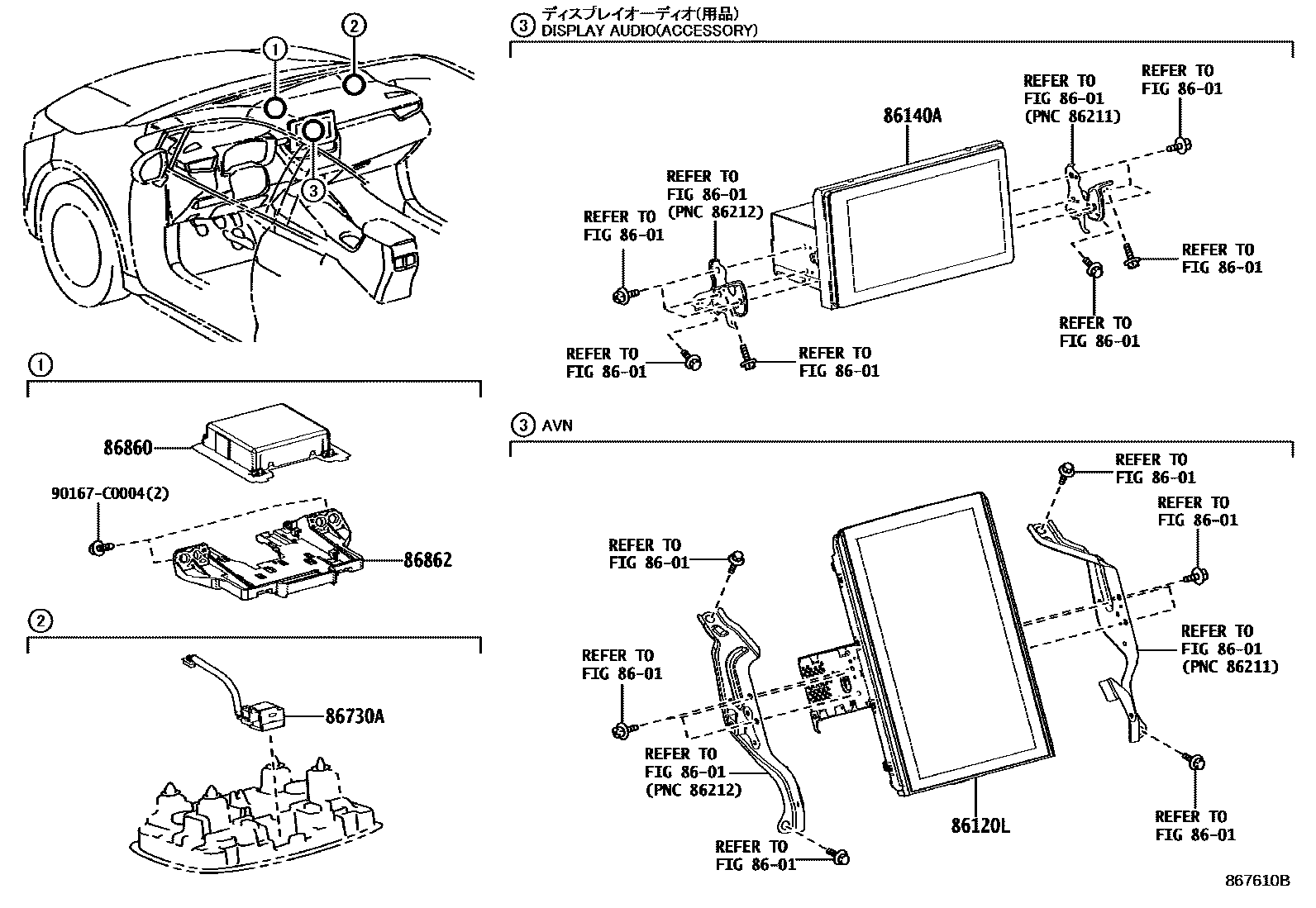

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-02571i202304-202306

DESAY

main86100-02572i202307

DESAY

main86140-02F50i202007-202101

DENSO TEN

main86140-02F51i202101-202106

DENSO TEN

main86140-02F52i202107-202201

DENSO TEN

main86140-02F53i202201-202203

DENSO TEN

main86140-02F54i202204-202210

DENSO TEN

main86140-02F55i202211-202303

DENSO TEN

main86140-02560i201906-202007

DENSO TEN,AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER

main86140-02F40i202007-202101

DENSO TEN,TECH PACKAGE

main86140-02F41i202101-202106

DENSO TEN,TECH PACKAGE

main86140-02F42i202107-202201

DENSO TEN,TECH PACKAGE

main86140-02F43i202201-202203

DENSO TEN,TECH PACKAGE

main86140-02F44i202204-202210

DENSO TEN,TECH PACKAGE

main86140-02F45i202211-202303

DENSO TEN,TECH PACKAGE

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-02F30i202101-202111

DESAY; DESAY,SPORT PACKAGE

main86140-02K80supersedes 86140-02F30i202111-202303

DESAY; DESAY,AUDIO(OVERSEAS MARKET)-*DA & 4SPEAKER

main86140-02L81i202304-202306

HANGSHENG

main86140-02L82i202307

HANGSHENG

main86140-02R60i202407

HANGSHENG

main86140-02R70i202403

HANGSHENG

main86140-YY090i201906-202007

DENSO TEN,AUDIO(OVERSEAS MARKET)-*DA(ACCESSORY) & 4SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-02090i201906-202303

main86730-0A020i202403

86860ANTENNA ASSY, NAVIGATION

main86880-02040i201906

main86880-02100i202304

86862BRACKET, NAVIGATION ANTENNA

main86862-02020i201906

main86862-42010i202304

90167C0004

main90167-C0004

7 parts on this diagram · 3 diagrams in section
