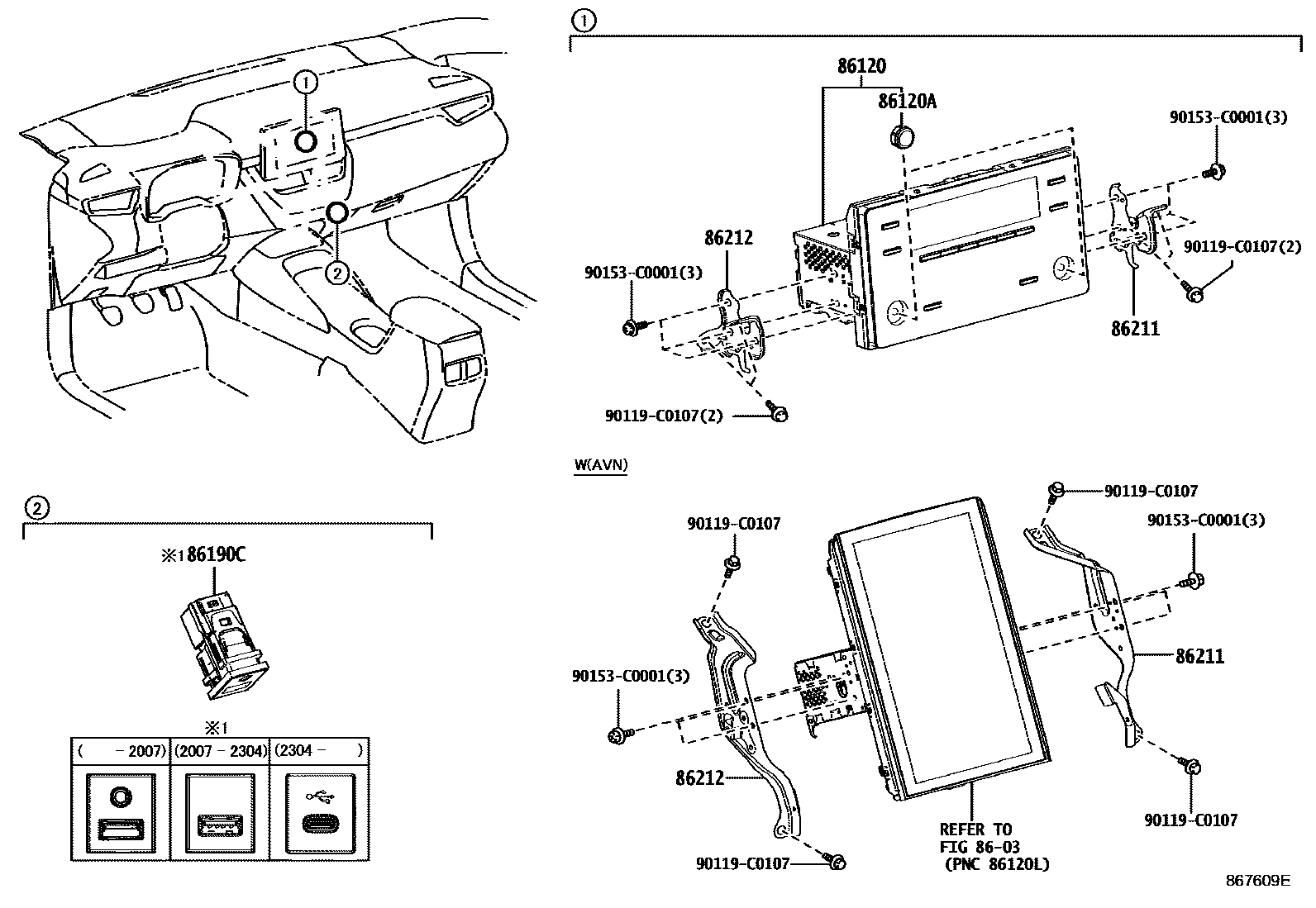

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-02M10iNRE210,ZWE211; NRE210,ZWE211..E201906-202007

PANASONIC,ID=510328; PANASONIC,ID=510328,TECH PACKAGE

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25318×2iNRE210,ZWE211; NRE210,ZWE211..E201906-202007

TECH PACKAGE

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02120iMZEA17,ZWE219202304

main86190-06070iNRE210,ZWE211201906-202007

main86190-12070iNRE210..G;MZEA11,ZWE211..E,G202007-202303

86211BRACKET, RADIO, NO.1

main86211-02620iNRE210..E201906-202403

main86211-02770iNRE210..E202403

main86211-02680iMZEA11,ZWE211..E202007-202303

TECH PACKAGE

86212BRACKET, RADIO, NO.2

main86212-02620iNRE210..G,N;MZEA11,ZWE211201906-202303

main86212-02750iNRE210..E202403

main86212-02680iMZEA11,ZWE211..E202007-202303

TECH PACKAGE

90119C0107

main90119-C0107

90153C0001

main90153-C0001

8 parts on this diagram · 2 diagrams in section
