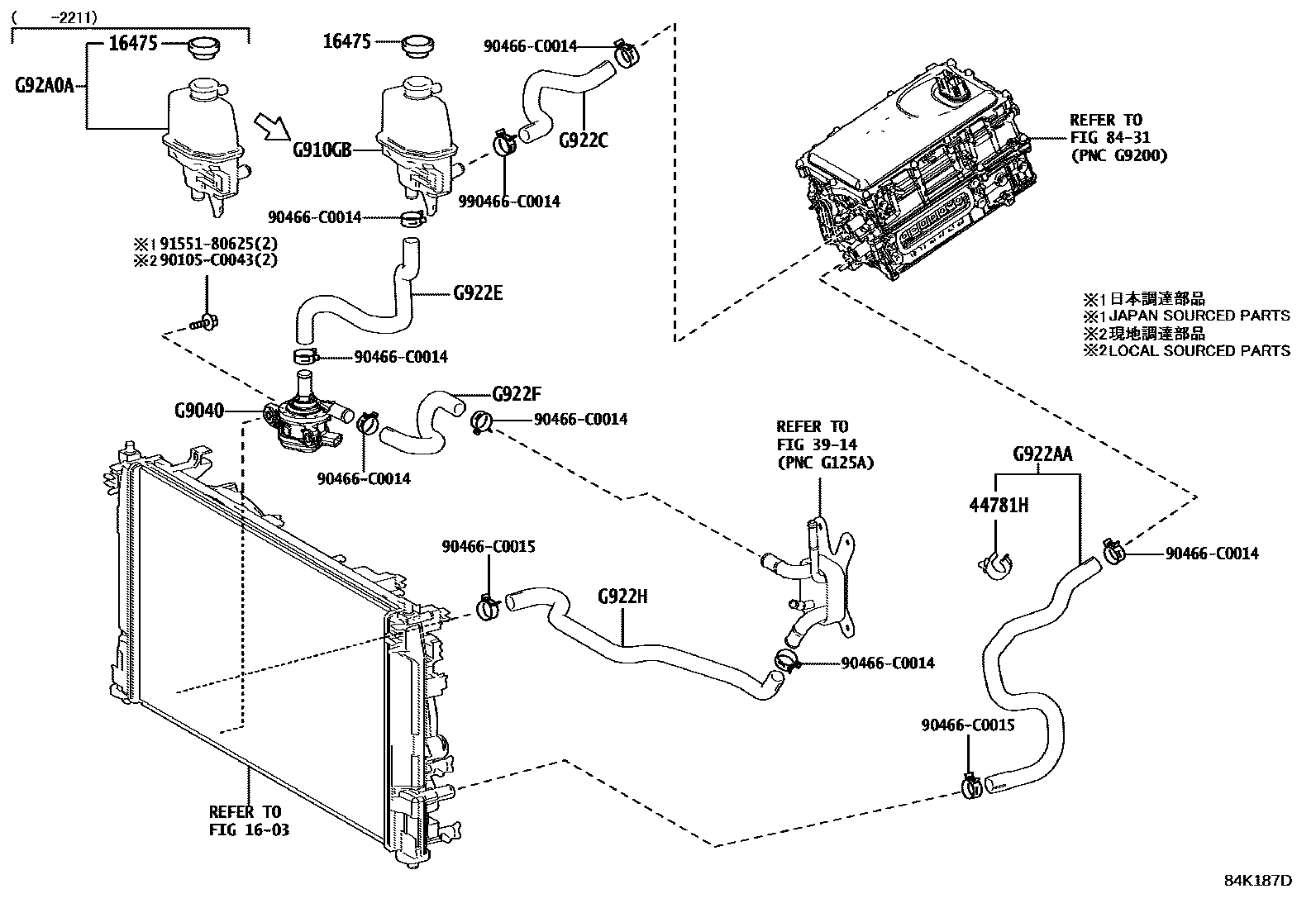

INVERTER COOLING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-0T081i8ZRFXE..ZWE219202304

(L)

main16475-28140i8ZRFXE..ZWE211202211-202303

(J)

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

44781HBRACKET, HOSE CLAMP

main88718-48360iZWE211201906-202303

main90469-22003iZWE211202202-202303

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904002030iZWE211202104-202303

LOCAL SOURCED PARTS

mainG904002050iZWE219202304

mainG904047040iZWE211201906-202104

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G02120iZWE219202304

mainG910G02160iZWE211202211-202303

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A02060iZWE211201906-202202

mainG922A02100iZWE219202304-202410

mainG922A0A020iZWE219202410

mainG922A47010iZWE211202202-202303

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C02060iZWE211201906-202202

mainG922C02100iZWE219202304

mainG922C47010iZWE211202202-202303

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E02060iZWE211201906-202202

mainG922E02100iZWE219202304

mainG922E47010iZWE211202202-202303

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F02060iZWE211201906-202202

mainG922F47010iZWE211202202-202303

G922HHOSE, HYBRID RADIATOR INLET

mainG922H02060iZWE211201906-202202

mainG922H02100iZWE219202304-202410

mainG922H0A020iZWE219202410

mainG922H47010iZWE211202202-202303

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H002100iZWE211201906-202211

90105C0043

main90105-C0043

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9155180625

main91551-80625

17 parts on this diagram · 2 diagrams in section
