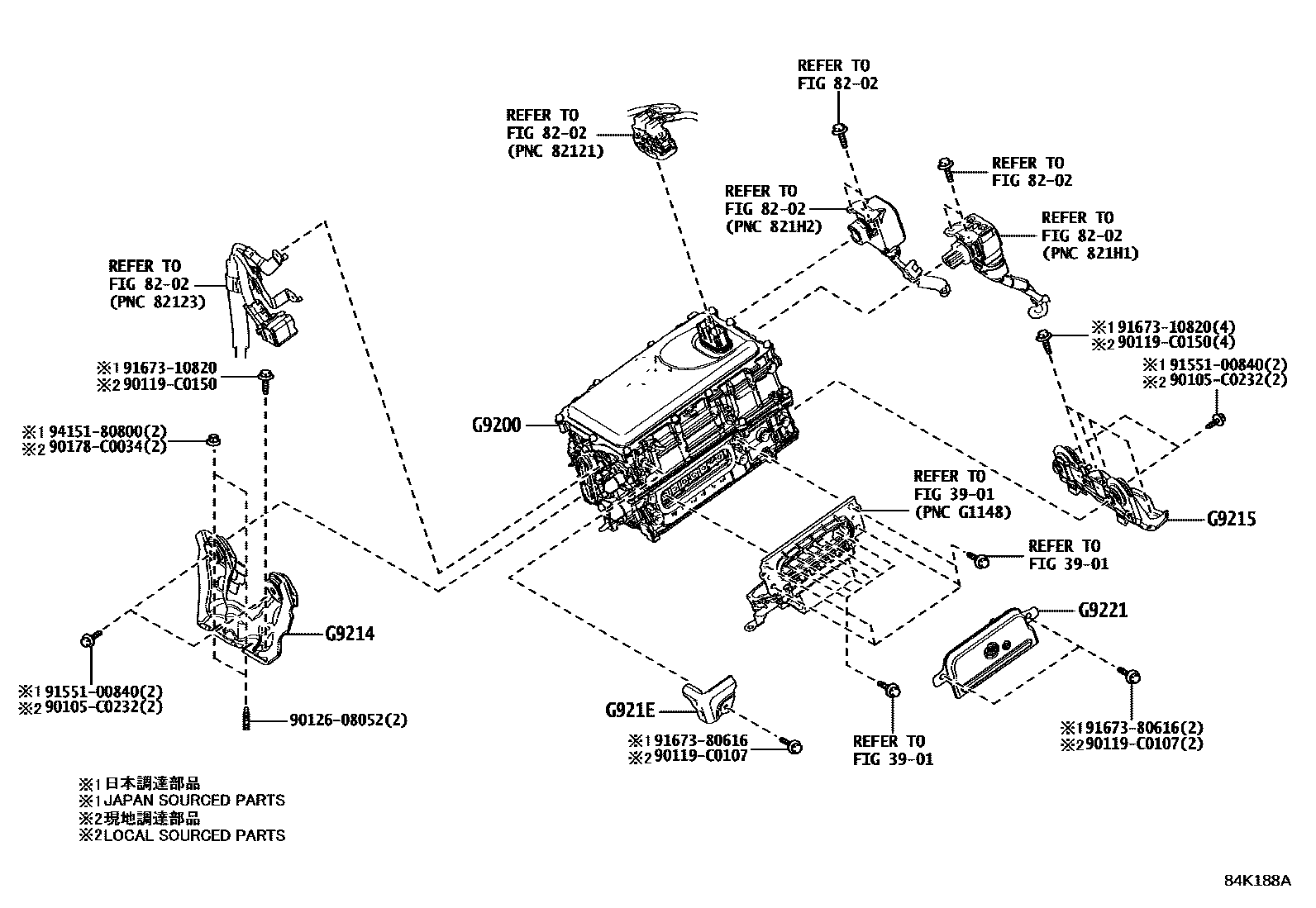

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A002030iZWE211201906-202106

mainG92A002031iZWE211202107-202303

mainG92A002050iZWE219202304

*614

G9214BRACKET, INVERTER, NO.1

mainG921402060iZWE211201912-202303

mainG921402080iZWE219202304

(L)

mainG921428090iZWE219202304

(J)

mainG921447070iZWE211201906-201911

G9215BRACKET, INVERTER, NO.2

mainG921502050iZWE211201906-202303

mainG921502070iZWE219202304

(L)

mainG921528050iZWE219202304

(J)

G921EPROTECTOR, INVERTER

mainG921E02010iZWE211201906-202303

G9221COVER, INVERTER

mainG902202030iZWE219202304

(L)

mainG902228030iZWE219202304

(J)

mainG902247050iZWE211201906-202303

90105C0232

main90105-C0232

90119C0107

main90119-C0107

90119C0150

main90119-C0150

9012608052

main90126-08052

90178C0034

main90178-C0034

9155100840

main91551-00840

9167310820

main91673-10820

9167380616

main91673-80616

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
