FUEL TANK & TUBE

0001 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK(CHINA 6B) 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL PUMP 0009 1FUEL PUMP 0011 1FUEL PUMP 0012 1FUEL PUMP 0013 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL TUBE 0017 1FUEL TUBE 0018 1FUEL LID OPENER(CABLE TYPE) 0021 1FUEL LID OPENER(ELECTRIC TYPE

77100TANK ASSY, FUEL

main77001-02B60iZWE211201906-202303

main77001-02C50iMZEA17202304

main77001-02C60iZWE219202304

main77001-F4080iMZEA11;NRE210..G,N201906-202303

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iNRE210..E201906

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02130iNRE210..E202409

(L)

main77169-0K030iMZEA11,NRE210,ZWE211202010-202109

(L)

main77169-47030iNRE210..E202409

(J)

main77169-47040iNRE210,ZWE211201906-202009

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-06100iMZEA17,ZWE219202304

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02370iZWE219202304

main77209-0A150iMZEA17202304

main77209-F4090iMZEA11;NRE210..G,N201906-202303

77210PIPE ASSY, FUEL TANK FILLER

main77210-02820iMZEA17202304

main77210-02850iNRE210,ZWE211201906-201907

main77210-02851iNRE210..E201908

77241WCLIP, TUBE JOINT

main77241-02020iNRE210..E202110-202402

main77241-33011iMZEA11201906-202108

77285GCLAMP, FUEL TUBE, NO.1

main77285-06580iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

77285KCLAMP, FUEL TUBE, NO.1

main77285-02230iNRE210..E202205

(L)

main77285-10060iMZEA11,NRE210201906-202205

main77285-30350iZWE211201906-202303

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA11..CVT;NRE210..G,N202204-202303

(J)

main77286-F4040iNRE210..E202204

(L)

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02330iNRE210,ZWE211201906-202006

main77291-02331iNRE210..G,N;MZEA11,ZWE211..CVT202007-202303

77310ACAP ASSY, FUEL TANK

main77300-06100iMZEA11,NRE210..CVT201906-202102

main77300-06110iZWE219202304

main77300-0R010iNRE210..E202102

main77300-11010supersedes 77300-06100iZWE211202007-202012

77316GASKET, FUEL TANK CAP

main77316-0F020iNRE210..E202102

main77316-75020iMZEA11,NRE210..CVT201906-202102

77391RING, FUEL INLET BOX

main77391-0R080iNRE210..G,N;MZEA11,ZWE211..CVT202002-202303

main77391-12020iNRE210,ZWE211201906-202001

77391ARING, FUEL INLET BOX

main77391-02170iMZEA17,ZWE219202304

main77391-20040iNRE210,ZWE211201906-202005

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-02410iZWE219202304

main77404-02420iMZEA17202304

main77404-12090supersedes 77404-02320iZWE211202007-202303

main77404-F4080iNRE210..E201906

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-02280iZWE211201906-202303

main77404-F4110iNRE210..E201906

77511ABRACKET, FUEL TANK

main77512-06040×4iMZEA17; ZWE219202304

(L)

main77512-35140×4iZWE219202304

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-F4050iMZEA11..CVT;NRE210..G,N201906-202303

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-F4050iMZEA11..CVT;NRE210..G,N201906-202303

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02220supersedes 77606-47030iZWE211202007-202303

main77606-02250iMZEA17202304

main77606-F4060iNRE210..E201906

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iNRE210..E201906

(J)

main90119-C0526×4iMZEA11..CVT;NRE210..G,N201906-202303

(L)

77651ACUSHION, FUEL TANK, NO.1

main77651-F4030×2iNRE210..E201906

77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE

main77730-02040iNRE210..E202007

main77730-F4040iNRE210201906-202007

main77730-F4030iNRE210201906-202006

EXHAUST EMISSION CONTROL-CHINA 6B

77740CANISTER ASSY, CHARCOAL

main77740-02240supersedes 77740-02270iZWE219202304

main77740-F4030iMZEA17202304

77759AHOSE, CHARCOAL CANISTER

main77759-12120iZWE219202304

main77759-F4030iMZEA17202304

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-33010iNRE210..E201906

9011906A11

main90119-06A11

9011908D17

main90119-08D17

90119C0519

main90119-C0519

90119C0522

main90119-C0522

9017806025

main90178-06025

90178C0139

main90178-C0139

9018206012

main90182-06012

9026905049

main90269-05049

90466C0039

main90466-C0039

9613341501

main96133-41501

9613641901

main96136-41901

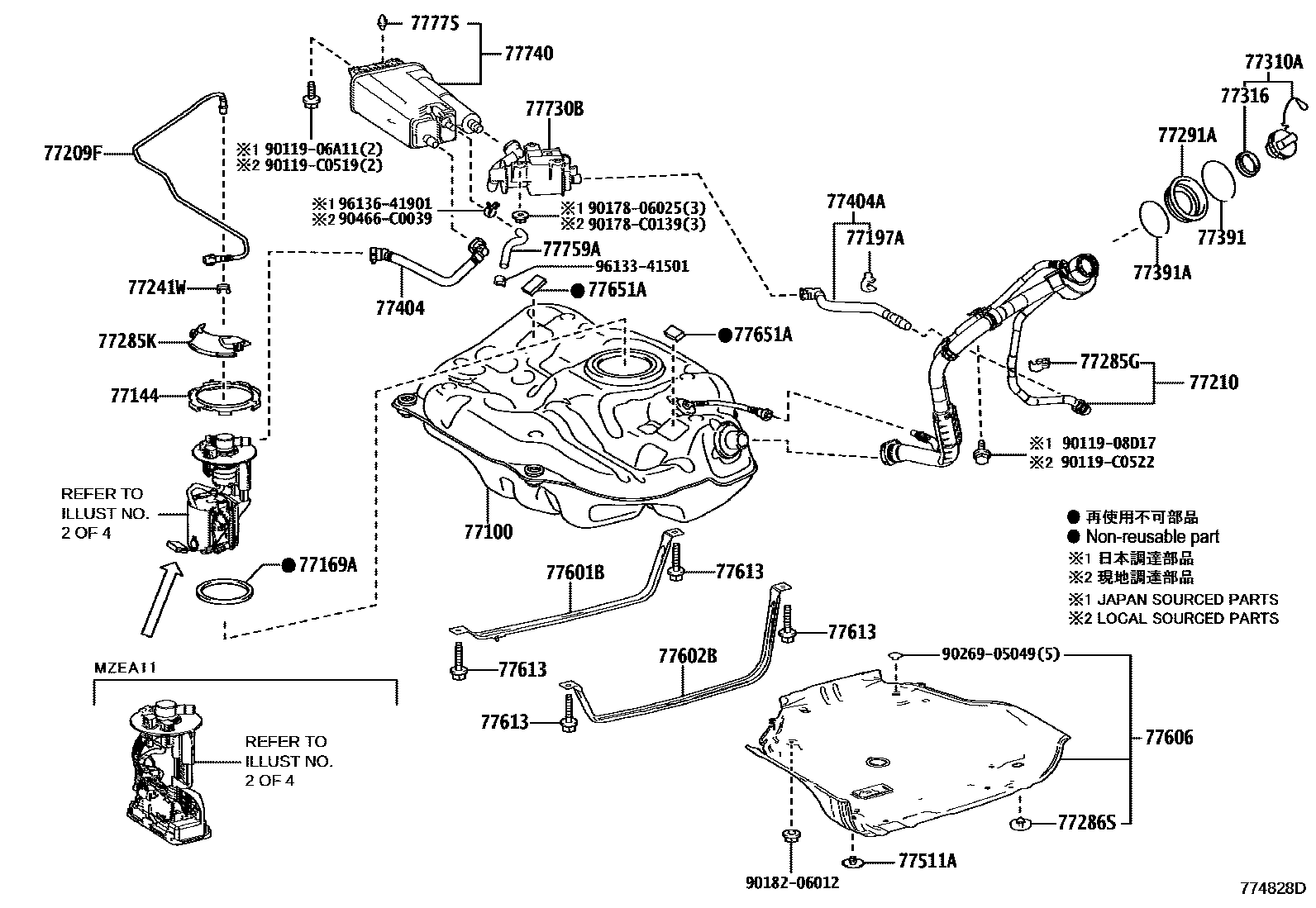

38 parts on this diagram · 15 diagrams in section
